Z35013-P12 3.5 Inch LCD Display 320*480 12PIN SPI Interface 300 Nits Luminance

  • Size: 3.5 inch

  • Resolution: 320*480

  • Interface: SPI

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

high quality tft lcd display module
high quality tft lcd display module
high quality tft lcd
high quality lcd panel
lcd display panel
high quality tft lcd display
lcd display module
lcd module
tft lcd display panel
tft lcd screen panel
tft display

Overview of Z35013-P12 3.5 Inch LCD Display 320*480 12PIN SPI Interface 300 Nits Luminance

1

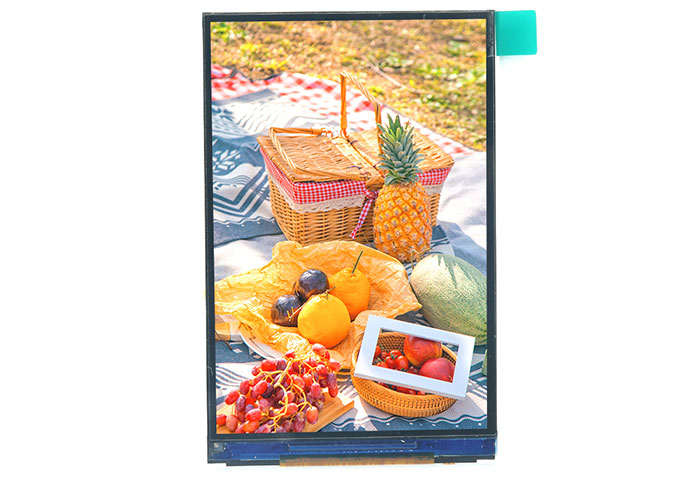

Z35013 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 320*480 resolution. IPS (In-plane Switching) technique make this 3.5" LCD module have a wider view angle. This LCD display is built-in ILI9488 driver IC. This a-Si square TFT  LCD module come with SPI interface, 350 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc,as a custom LCD screen manufacturer, we can also customize for you.

3

As a square LCD module factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3.5 inch LCD screen is smart switchl, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, music player, smart home, industry handheld, outdoor, etc.

Specifications of 3.5 Inch LCD Display 320*480 12PIN SPI Interface 300 Nits Luminance


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320 (H) × RGB × 240 (V)

pixels

3

Pixel Pitch

73 (H) × 219 (V)

um

4

LCM Outline Dimension

(Without FPC)

53.76 (W) × 82.39 (H) × 2.23 (T)

mm

5

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96 (W) × 73.44 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.2% Min: 5.25%

-

13

LCD Contrast Ratio

Typ.: 1200 Min: 900

-

14

FPC Version

Z35013-P24 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

330

nit

20

Weight

0.020

kg


Interface Definition Description of 3.5 Inch LCD Display 320*480 12PIN SPI Interface 300 Nits Luminance


PIN NO.

PIN DEF.

FUNCTION DESC.

1

IM0/NC

LCM IM PIN/No Connection

2

DVDD(2V8)

OWER SUPPLY (2.8V)

3

IOVDD(1V8)

I/O POWER SUPPLY (1.8V)

4

IM1/NC

LCM IM PIN/No Connection

5

RESET

LCM RESET PIN

6

GND

Ground

7-8

NC

No Connection

9

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

10

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

11-12

GND

Ground

13-14

NC

No Connection

15

GND

Ground

16

TDP0

Positive MIPI differential data input

17

TDN0

Negative MIPI differential data input

18

GND

Ground

19

TDP1(NC)

Positive MIPI differential data input/No Connection

20

TDN1(NC)

Negative MIPI differential data input/No Connection

21

GND

Ground

22

TCP

Positive MIPI differential CLOCK input

23

TCN

Negative MIPI differential CLOCK input

24

GND

Ground

RESET voltage should be consistent with IOVDD voltage, or there probably is black screen fault when power on.
