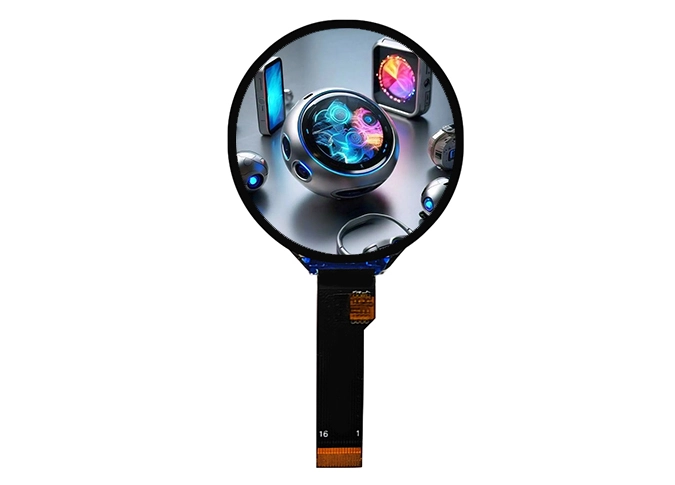

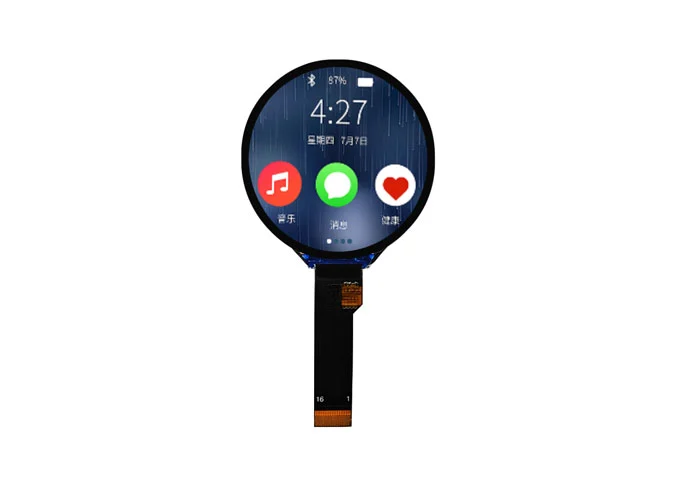

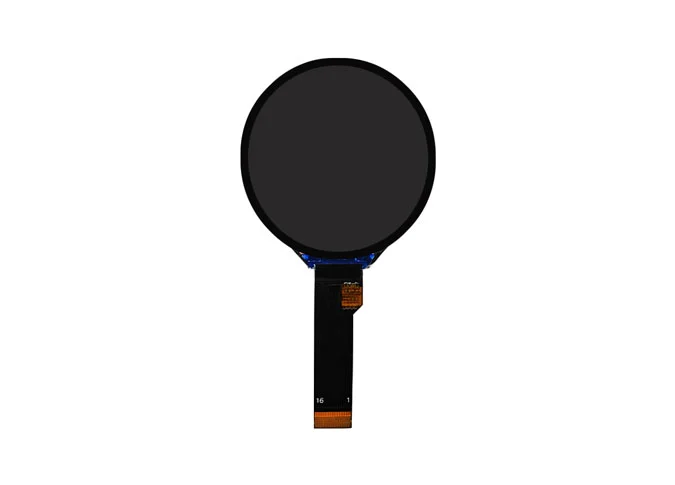

Z16003 Small 1.6 inch Circular TFT LCD Display ST77903 Driver IC 16PIN SPI Interface

  • Resolution:400*400

  • Interface: SPI

  • View Angle: IPS

  • Brightness: 350

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

z16003 small 1
z16003 small 1
z16003 small 1
z16003 small 1
z16003 small 1
z16003 small 1

Overview of Z16003 Small 1.6 inch Circular TFT LCD Display ST77903 Driver IC 16PIN SPI Interface

1

Z16003 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*240 resolution. IPS(In-plane Switching) technique make this 1.6" LCD module have a wider view angle.This Round TFT  Display is built-in ST77903 driver IC.This a-Si TFT LCD come with SPI interface.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, we can also provide custom LCD display module for you.

3

Our round LCD panel factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 1.6" Circular wholesale LCD display module is widely used on smart watch, smart home, protable device, medical instrument,gaming, industrial automation,remote control, automotive,smart jewelry, electronic toys, music equipment ect

General Specifications of Small 1.6 inch Circular TFT LCD Display ST77903 Driver IC 16PIN SPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.6

inch

2

Display Resolution

400(H)  × RGB × 400  (V)

pixels

3

Pixel Pitch

99.6(H) × 99.6  (V)

um

4

LCM Outline Dimension (Without FPC)

42.9 (W) ×45.89 (H) ×1.60 (T)

mm

5

LCD Active Area

39.84  (W)  ×39.84  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST77903

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ:3.67%    Min:3.3%

-

12

LCD Contrast Ratio

Typ:1000    Min:800

-

13

FPC Version

Z16001-P16X V1

-

14

Interface

SPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/ 1 Series 2 Parallel (2 lights in total)

-

18

Luminance

/

nit

19

Weight

/

kg


Interface Definition Description of Small 1.6 inch Circular TFT LCD Display ST77903 Driver IC 16PIN SPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

IM1/NC

Interface    Select    Pin/No Connection

2

IM0/NC

Interface    Select    Pin/No Connection

3

IO2

I/O    PIN

4

IO3

I/O    PIN

5

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

6

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

7

GND

Ground

8

IO1

I/O    PIN

9

SCL

LCM    SPI clock (SCL) clock (SCLK)

10

RESET

LCM    RESET    PIN

11

GND

Ground

12

SDA/IO0

LCM    SPI data (SDA) data input (MOSI)    /    I/O    PIN

13

CS

Chip    Select    PIN

14

TE

Tearing    Effect    PIN

15

VCC

POWER SUPPLY

16

GND

Ground

RESET voltage should be consistent with VDDIO voltage, or there probably is black screen fault when power on.
