Z30083 Vertical 3 Inch TFT LCD 480*854 Resolution 24PIN MIPI Interface 500nits

  • Size: 3 inch

  • Resolution: 480*854

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

3 inch tft lcd
3 inch tft lcd
3 inch tft lcd wholesale
3 inch tft lcd manufacturer
3 inch tft lcd bulk
3 inch tft lcd company
3 inch tft lcd
3 inch tft lcd wholesale
3 inch tft lcd manufacturer
3 inch tft lcd bulk
3 inch tft lcd company

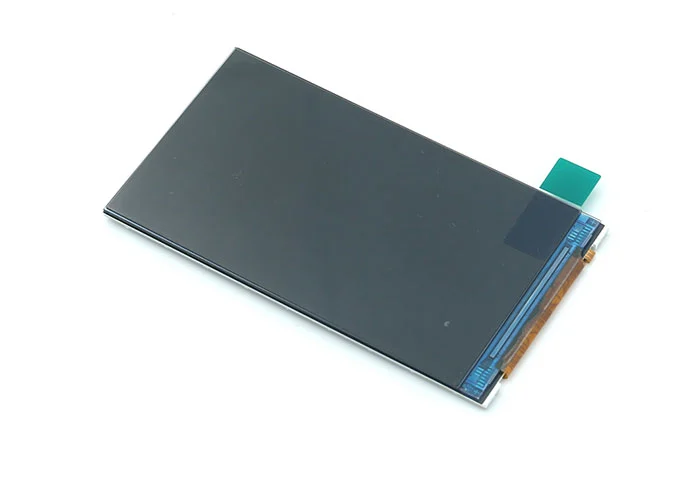

Overview of Z30083 Vertical 3 Inch TFT LCD 480*854 Resolution 24PIN MIPI Interface 500nits

1

 Z30083 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This LCD display is built-in JD9161Z driver IC. This a-Si TFT LCD module come with MIPI interface, 500 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a China custom LCD manufacturer, we can also customize for you.

3

As a china LCD display supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3 inch square LCD screen is medical, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, music player, smart home, industry, etc.

Specifications of Vertical 3 Inch TFT LCD 480*854 Resolution 24PIN MIPI Interface 500nits


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V)

um

4

LCM Outline Dimension

(Without FPC)

40.64 (W) × 74.68 (H) × 2.34 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30083-K11F V4

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

470

nit

20

Weight

0.015

kg


Interface Definition Description of Vertical 3 Inch TFT LCD 480*854 Resolution 24PIN MIPI Interface 500nits


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

CP

Positive MIPI differential CLOCK input

3

CN

Negative MIPI differential CLOCK input

4

GND

Ground

5

D0P

Positive MIPI differential data input

6

D0N

Negative MIPI differential data input

7

GND

Ground

8

D1P

Positive MIPI differential data input

9

D1N

Negative MIPI differential data input

10

GND

Ground

11

NC

No Connection

12

GND

Ground

13

VDD2.8

POWER SUPPLY (2.8V)

14

VIO1.8

I/O POWER SUPPLY (1.8V)

15-17

NC

No Connection

18

TE

Tearing Effect PIN

19

REST

LCM RESET PIN

20

NC

No Connection

21-22

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

23-24

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of Vertical 3 Inch TFT LCD 480*854 Resolution 24PIN MIPI Interface 500nits
