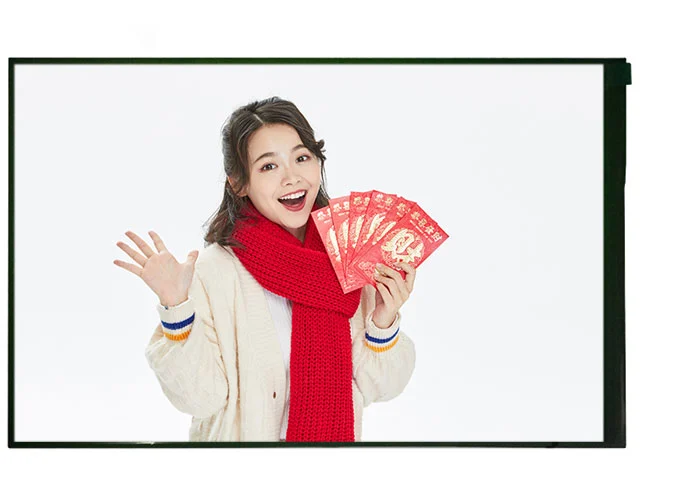

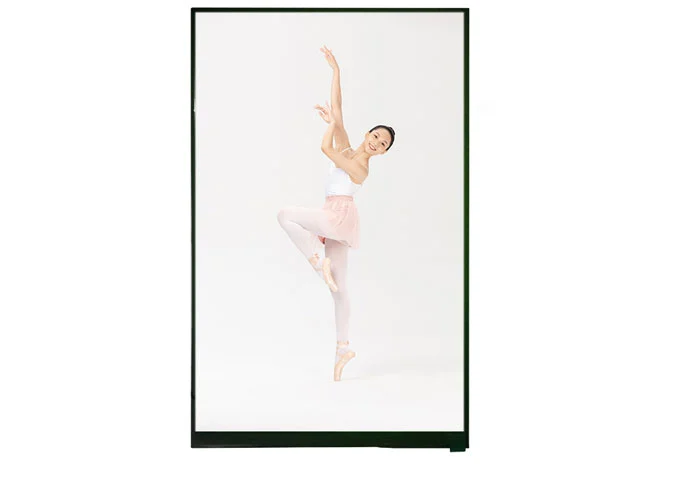

Z116001 Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT

  • Size: 11.6 inch

  • Resolution: 1920*1080

  • Active Area: 256.32*144.18mm

  • Interface: LVDS

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

11.6 inch lcd manufacturer
11.6 inch lcd manufacturer
11.6 inch lcd wholesale
wholesale 11.6 inch lcd
11.6 inch lcd
11.6 inch lcd bulk
bulk 11.6 inch lcd
11.6 inch lcd company
manufacturer 11.6 inch lcd
company a 11.6 inch lcd
company 11.6 inch lcd

Overview of Z116001 Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT

1

Z116001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1920*1080 resolution. IPS (In-plane Switching) technique make this 11.6" LCD module have a wider view angle. This a-Si square TFT LCD module come with LVDS interface, 500cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, as a TFT LCD module supplier, we can also customize for you.

3

As a square LCD supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 10.1 inch LCD screen is widely used in Medical, visual doorbell, vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, laptop, HMI, education, etc.

Specifications of Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT


No.

Item

Specification

Unit

1

Display Size (Diagonal)

11.6

inch

2

Display Resolution

1920 (H) × RGB × 1080 (V)

pixels

3

Pixel Pitch

0.1335 (H)× 0.1335 (V)

um

4

LCM Outline Dimension

(Without FPC)

263.6 (W) ×157.42 (H) ×3.1 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

256.32 (W) ×144.18 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

-

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

Typ8 00

-

14

FPC Version

Z116001-P30 V1

-

15

Interface

2lane EDP

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

9 series 5 parallel

-

19

Luminance

400

nit

20

Weight

-

kg


Interface Definition Description of Bar Type 11.6 Inch 1920*1080 IPS LCD Display LVDS Interface TFT


PIN#

Symbol

Description Remark

PIN#

Symbol

Description Remark

1

CABC-EN

CABC-EN

16

GND

Power Ground

2

GND

Power Ground

17

HPD

Hot plug detect output

3

LANE1-N

eDP RX Channel 1 negative

18

BL-GND

Power Ground

4

LANE1-P

eDP RX Channel 1 Positive

19

BL-GND

Power Ground

5

GND

Power Ground

20

BL-GND

Power Ground

6

LANE0-N

eDP RX Channel 0 negative

21

BL-GND

Power Ground

7

LANE0-P

eDP RX Channel 0 Positive

22

BL-ENABLE

BL-ENABLE

8

GND

Power Ground

23

BL-PWM

Reset low active

9

AU-PH-P

eDP AUX CH positive

24

MSCL

FOR DEBUG

10

AU-PH-N

eDP AUX CH negative

25

MSDA

FOR DEBUG

11

GND

Power Ground

26

BL-POWER

BL-POWER

12

LDC-VCC

3.3V

27

BL-POWER

BL-POWER

13

LDC-VCC

3.3V

28

BL-POWER

BL-POWER

14

LCD-TEST

Panel self test enable

29

BL-POWER

BL-POWER

15

GND

Power Ground

30

NC

NC
