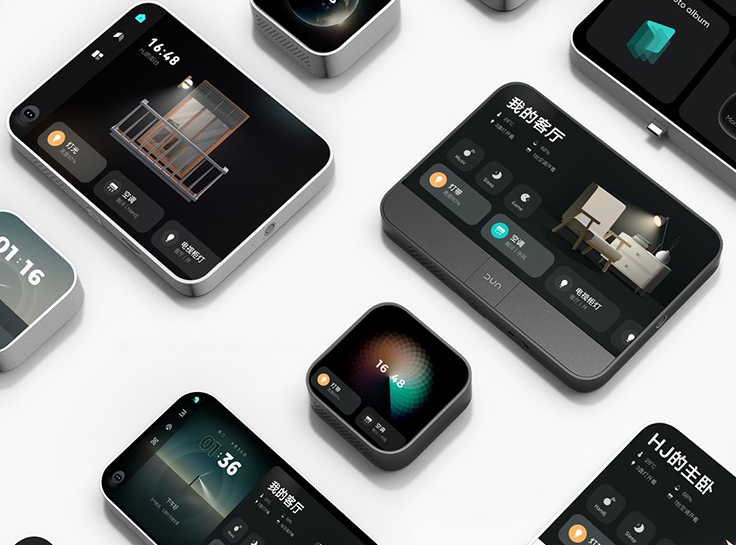

Smart TFT LCDs with Built-in Microcontrollers: Integrating Intelligence into Display Technology

In the ever-evolving landscape of display technology, the emergence of Smart TFT LCDs with built-in microcontrollers has marked a significant leap forward. These intelligent display modules go beyond merely presenting information—they integrate processing capabilities, storage, and communication functions directly into the display hardware. This convergence of display and logic processing simplifies system design, reduces cost and power consumption, and accelerates product development across industries like IoT, medical devices, industrial automation, and smart home electronics.

What Are Smart TFT LCDs?

Traditional TFT (Thin Film Transistor) LCDs require external microcontrollers or processors to control what is displayed, handle inputs, and communicate with the rest of a system. In contrast, Smart TFT LCDs have an embedded microcontroller unit (MCU) within the display module itself. These MCUs manage graphics rendering, input processing (e.g., touchscreen or buttons), and often support communication protocols like UART, SPI, I²C, and even USB or CAN bus.

Some smart TFT LCD modules also include:

• Built-in flash memory for storing UI assets and data,

• RAM for display buffers,

• Touch panel controllers,

• Audio outputs, and even

• Operating system-like GUI frameworks.

This level of integration transforms the display from a passive output device into an active, intelligent HMI (Human-Machine Interface).

Advantages of Smart TFT LCDs with Built-in Microcontrollers

1. Simplified System Architecture

By embedding the controller into the display, developers no longer need to connect and program a separate MCU for basic display functions. This drastically reduces the number of components and complexity of the hardware layout.

2. Faster Development Time

Many smart TFT modules come with graphical development tools and pre-built GUI libraries, allowing engineers to design user interfaces quickly through drag-and-drop methods, minimizing coding efforts.

3. Cost Efficiency

Although smart displays may seem more expensive than basic TFT panels, the elimination of a separate MCU and related components (RAM, flash, connectors) can lower the overall bill of materials (BOM), especially in space-constrained or lower-volume applications.

4. Enhanced Performance

The built-in MCU is optimized for display operations—often featuring dedicated graphic accelerators or DMA (Direct Memory Access) capabilities, which enable smooth animations, rapid screen refreshes, and responsive touch interfaces.

5. Modular Scalability

Smart TFT displays enable easy hardware scaling. For example, a product family can share the same processor and use different screen sizes with minimal firmware changes. This flexibility is especially valuable for IoT and industrial control products.

Common Applications of Smart TFT LCD Modules

1. Industrial Control Panels

Factory machines, test equipment, and automation interfaces increasingly use smart displays for intuitive touch controls, real-time data readouts, and configuration menus. These displays withstand harsh environments while offering modern UI experiences.

2. Medical Devices

Patient monitors, handheld diagnostics, and infusion pumps benefit from the compactness and efficiency of smart displays. They offer color-rich, touch-enabled interfaces without the need for large external processors.

3. Smart Home Devices

Thermostats, security panels, and kitchen appliances use smart displays to present rich UIs with limited hardware. Users interact with touchscreens to access information and settings in a compact, standalone solution.

4. IoT Devices

Smart TFT modules are ideal for connected devices such as energy meters, weather stations, or wearable diagnostic tools. The display handles its own logic and communication, often reducing the main system to a simple sensor or gateway.

5. Automotive and E-Mobility

In electric bikes, scooters, and dashboard clusters, smart displays reduce wiring complexity and bring modern interface capabilities—like real-time speed and battery monitoring, map previews, and alerts.

Key Features to Look For in Smart TFT Modules

• Touchscreen Integration: Capacitive or resistive touch with gesture support.

• High-Resolution Support: Common sizes include 2.4", 3.5", 4.3", 5", and 7" with 480x272, 800x480, or higher resolutions.

• Pre-installed GUI Frameworks: Tools like Nextion Editor, RA8875-based firmware, or open-source GUIs.

• Wide Operating Temperature: Especially important for industrial and outdoor applications.

• Communication Interfaces: UART, SPI, USB, I²C, and RS232/485 support for flexible connectivity.

• Low Power Operation: Many use ultra-low-power MCUs to extend battery life in portable systems.

Development Ecosystem and Design Tools

Most manufacturers of smart TFT LCDs also offer dedicated development environments. These may include:

• GUI builders with drag-and-drop widget libraries,

• Code generators for event handling and communication setup,

• Simulation tools to preview interfaces without hardware,

• Firmware updates via USB/UART for easy OTA changes.

Some popular platforms include:

• Nextion HMI (with its own IDE),

• Stone HMI,

• 4D Systems (with Workshop4 IDE),

• Winstar and DWIN displays with custom MCU firmware.

Future Outlook

Smart TFT displays are rapidly evolving to include:

• AI-powered features, such as voice control or facial detection,

• Wi-Fi/Bluetooth integration for wireless control,

• Higher resolution and curved/flexible displays,

• Cloud-connected smart HMI interfaces.

As the boundary between display and system controller continues to blur, these modules will become the core of many intelligent, compact devices.
