Z154001-ZC 1.54 inch IPS Touch Screen 240*240 Resolution SPI I2C Interface Capacitive Touch

  • Size: 1.54 inch

  • Resolution: 240*240

  • LCD Interface: SPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: ST7789T3

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

z154001 zc 1
z154001 zc 1
z154001 zc 2
z154001 zc 3

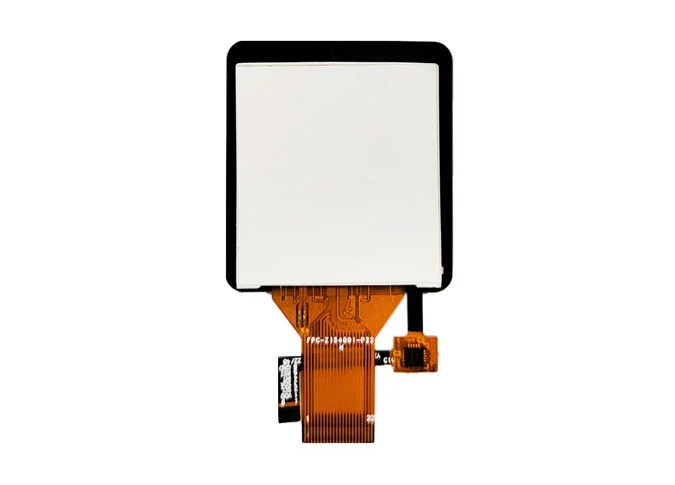

z154001 zc 4

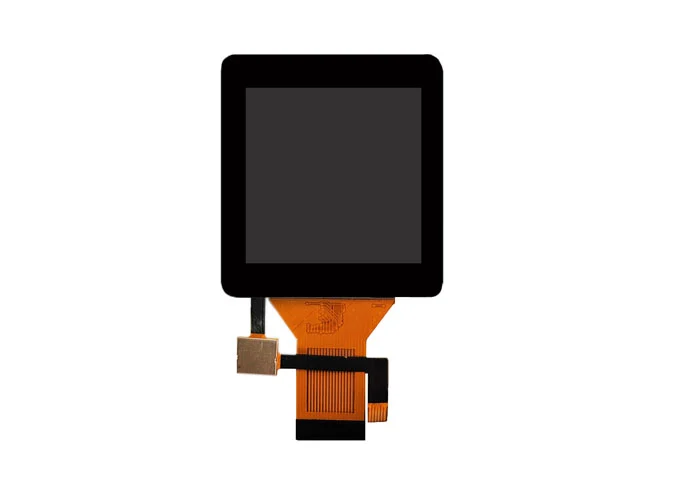

z154001 zc 5

Overview of Z154001-ZC 1.54 inch IPS Touch Screen 240*240 Resolution SPI I2C Interface Capacitive Touch

1

Z154001-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 240*240.This TFT touch display is built-in ST7789T3 LCD driver IC and CST816D touch IC.This a-Si TFT LCD touch China LCD module come with SPI and I2C interface.

2

If you have special requirement,like drive IC, interface,FPC, touch panel, backlight ,brightness,color etc, we can provide custom capacitive control panels for you.

3

As a square LCD panel factory, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

This 1.54 inch square LCD touch screen is widely used in smart watch,bracelet,medical oximeter, cosmetic instrument,household appliance, translator,message device, infrared themometer, smart home etc

General Specifications of Z154001-ZC 1.54 inch IPS Touch Screen 240*240 Resolution SPI I2C Interface Capacitive Touch

No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.54

inch

2

Display Resolution

240(H) × RGB × 240(V)

pixels

3

Pixel Pitch

115.5(H)× 115.5(V)

um

4

LCM Outline Dimension

(Without FPC)

31.50 (W) ×35.0 (H) ×1.91 (T)

mm

5

LCD Outline Dimension

/

mm

6

LCD Active Area

27.72(W) ×27.72(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789T3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

/

-

13

LCD Contrast Ratio

Typ.: 300  Min:200

-

14

FPC Version

/

-

15

Interface

8 Bit MCU/4L SPI Interface

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

19

Luminance

-

nit

20

Weight

/

kg


Interface Definition Description of Z154001-ZC 1.54 inch IPS Touch Screen 240*240 Resolution SPI I2C Interface Capacitive Touch

PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

IM2

Interface  mode  select  PIN

4

IM1

Interface  mode  select  PIN

5

IM0

Interface  mode  select  PIN

6

VCI(2.8V)

Power Supply(2.8V)

7

DB7

DATA BUS

8

DB6

DATA BUS

9

DB5

DATA BUS

10

DB4

DATA BUS

11

DB3

DATA BUS

12

DB2

DATA BUS

13

DB1

DATA BUS

14

DB0

DATA BUS

15

RD

Read enable in 8080 MCU parallel interface

16

WR

Write enable in 8080 MCU parallel interface

17

RS

Display data/command selection pin

18

CS

-Chip Selection Pin

-Low Enable.


19


TE

Tearing effect output pin to synchronies MCU to frame rate, activated

by S/W command.


20


RESET

This signal will reset the device and it must be applied to properly

initialize the chip.

21

SDA

serial input/output signal in serial interface mode.

22

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
