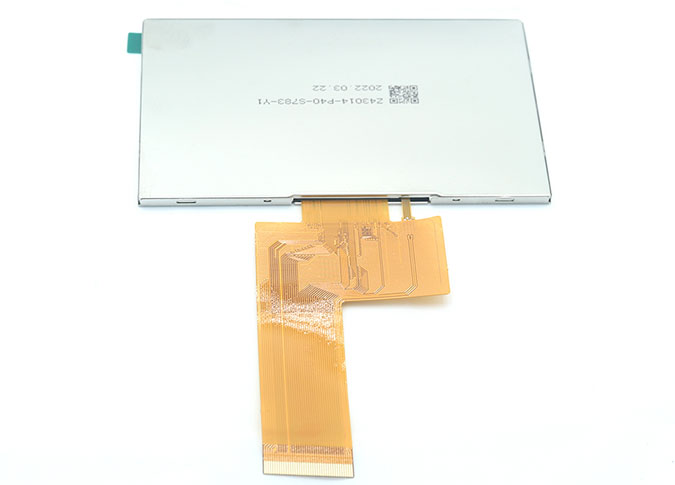

Z43014 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver

  • Size: 4.3 inch

  • Resolution: 480*272

  • Active Area: 95.04*53.86 mm

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd module pdf
lcd module pdf
lcd panel pdf
lcd panel video
lcd panel specification
types of lcd display pdf

Overview of Z43014 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver

1

Z43014 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*272 resolution. IPS (In-plane Switching) technique make this 4.3" China LCD display module have a wider view angle. This LCD display is built-in ST7283 driver IC. This a-Si TFT LCD module come with RGB interface, 500 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc,  as a custom LCD display manufacturer China, we can also customize for you.

3

As a professional LCD display module factory, Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 4.3 inch Horizontal LCD screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry handheld, outdoor, HMI, E-bike, electric vehicle, dashboard, speedometer, etc.

Specifications of 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

480 (H) × RGB × 272 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.46 (W) × 67.16 (H) × 2.75 (T)

mm

5

LCD Outline Dimension

100.16 (W) × 61.86 (H) × 0.8 (T)

mm

6

LCD Active Area

95.04 (W) × 53.86 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7283-G4-1-E

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.8% Min: 5.2%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z43014-P40 V1

-

15

Interface

RGB

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

19

Luminance

470

nit

20

Weight

0.038

kg


Interface Definition Description of 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable

35

NC

No Connection

36

GND

Ground

37

XR/NC

LCM XR PIN/No Connection

38

YD/NC

LCM YD PIN/No Connection

39

XL/NC

LCM XL PIN/No Connection

40

YU/NC

LCM YU PIN/No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver


Mechanical Drawing of 4.3 Inch TFT LCD Horizontal 480*272 40PIN RGB Interface ST7283 Driver
