Z30010 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller

  • Size: 3 inch

  • Resolution: 480*854

  • Interface: SPI+RGB

  • View Angle: IPS

  • Brightness: 400 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd 3 inch
lcd 3 inch
lcd display 3 inch
lcd screen 40 pin
lcd display 40 pin
arduino 40 pin lcd

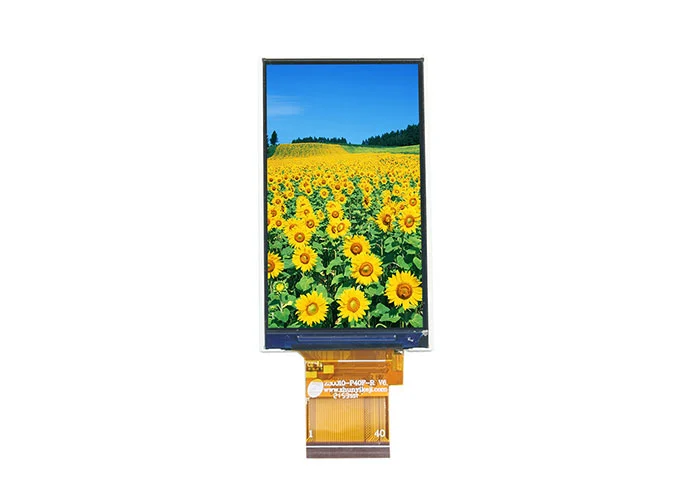

tft lcd 40 pin
st7701s datasheet
3 inch tft lcd screen
3 inch tft screen

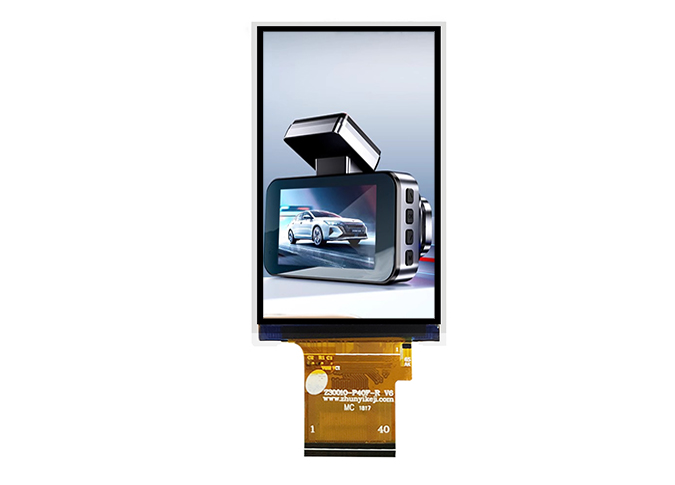

Overview of Z30010 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller

1

Z30010 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This square LCD panel is built-in ST7701S driver IC. This a-Si TFT LCD module come with SPI+RGB interface, 400 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight etc, we can provide china custom LCD display for you.

3

As one of the custom LCD manufacturers, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3 inch LCD screen is medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry etc.

Specifications of 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V)

um

4

LCM Outline Dimension

(Without FPC)

42.70 (W) × 74.70 (H) ×2.5 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 1.0 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel Driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30010-P40F-R V6

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

400

nit

20

Weight

0.017

kg


Interface Definition Description of 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

VCC

POWER SUPPLY (2.8V/3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable signal in RGB I/F DE mode.

35

NC

No Connection

36

GND

Ground

37

RESET

LCM RESET PIN

38

SDI

LCM SPI data (SDA) data input (MOSI)

39

SCL

LCM SPI clock (SCL) clock (SCLK)

40

CS

Chip Select input PIN

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller


Mechanical Drawing of 480*854 3 Inch TFT LCD Screen 400nits 40PIN RGB+SPI ST7701S Controller
