Enhancing Display Connectivity: HDMI Driver Boards for TFT LCD Screens

In today's rapidly advancing digital landscape, the demand for vibrant, high-resolution displays continues to grow. Whether in consumer electronics, industrial equipment, medical devices, or embedded systems, TFT LCD (Thin-Film Transistor Liquid Crystal Display) screens remain a popular choice for their brightness, sharpness, and energy efficiency. However, to unlock their full potential and simplify integration into modern devices, these displays often require compatible driver boards—HDMI driver boards in particular have become the go-to solution for high-performance visual connectivity.

Understanding HDMI and TFT LCD Integration

HDMI (High-Definition Multimedia Interface) is a digital interface standard widely adopted for transmitting high-definition video and audio signals. It is commonly found in computers, televisions, gaming consoles, cameras, and other consumer devices. On the other hand, TFT LCDs are display panels that require a controller to manage data signals, power regulation, and synchronization with the source video.

Since TFT LCD panels natively use RGB, MIPI, LVDS, or other panel-specific interfaces, they cannot directly connect to HDMI sources. This is where HDMI driver boards become essential. They serve as a bridge between HDMI output devices and the native input interface of the TFT LCD screen. These boards decode the HDMI signal and output it in a format that the LCD panel understands, allowing seamless display of digital content.

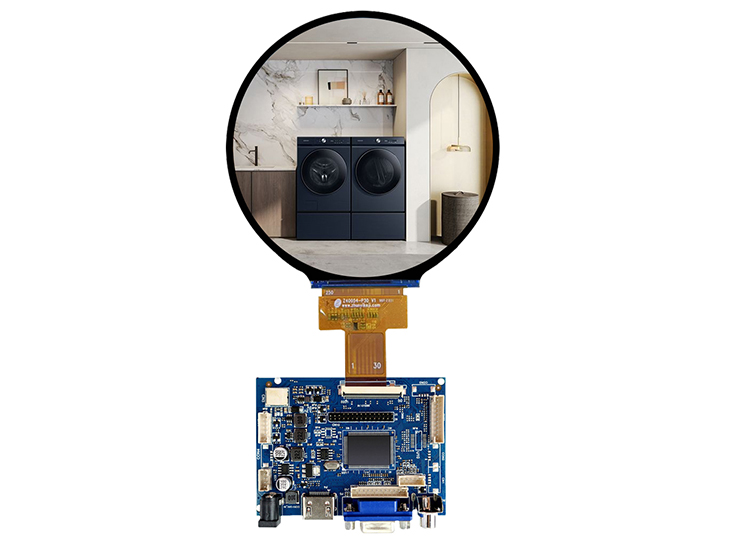

Key Components of an HDMI Driver Board

An HDMI driver board is more than just a signal converter. Depending on the complexity and performance requirements, it may include:

HDMI Receiver IC – Decodes HDMI input signal into digital video data.

Scaler/Controller IC – Adjusts resolution, manages color depth, and synchronizes signal timing to match the display panel's specs.

Timing Controller (T-CON) – Communicates directly with the TFT LCD, controlling pixel activation.

Backlight Driver – Regulates power for the LCD’s LED backlight.

Touch Controller (optional) – If the TFT LCD has a touch panel, the board may integrate a USB or I2C touch interface.

Power Regulation – Supplies consistent voltage levels for both the display and the board's logic.

These components work in harmony to deliver a flicker-free, high-quality visual output from any HDMI-compatible device.

Benefits of Using HDMI Driver Boards with TFT LCD Displays

1. Plug-and-Play Compatibility

HDMI is a ubiquitous standard, making driver boards with HDMI input a highly convenient solution. Users can connect laptops, media players, or development boards like Raspberry Pi and instantly display content without complex setup.

2. High-Quality Video Transmission

HDMI supports uncompressed video and audio. This ensures that the image quality on TFT LCDs remains sharp and color-accurate—ideal for media playback, presentations, and touch interfaces.

3. Flexible Display Sizes and Formats

HDMI driver boards can support a wide range of TFT LCD sizes—from small 3.5-inch screens to larger 10.1-inch or even 15.6-inch panels. They can also handle various resolutions, such as 480x320, 800x480, 1024x600, and 1920x1080 (Full HD).

4. Touchscreen Support

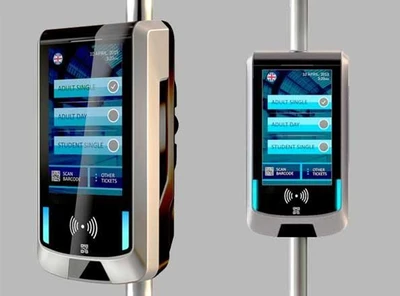

Many HDMI driver boards now support capacitive or resistive touch inputs, making them suitable for interactive applications like kiosks, control panels, or industrial HMIs (Human-Machine Interfaces).

5. Rapid Prototyping and Development

For engineers, students, and hobbyists, HDMI-compatible TFT LCD kits simplify the development process. HDMI eliminates the need to program complex interfaces like LVDS or parallel RGB, allowing more focus on software development and UI design.
