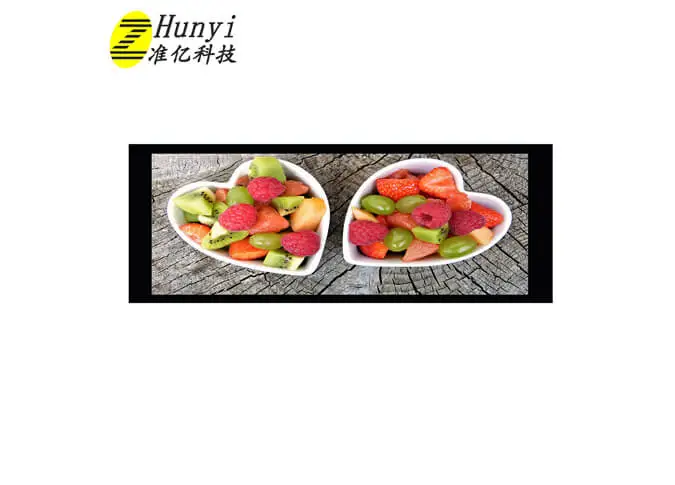

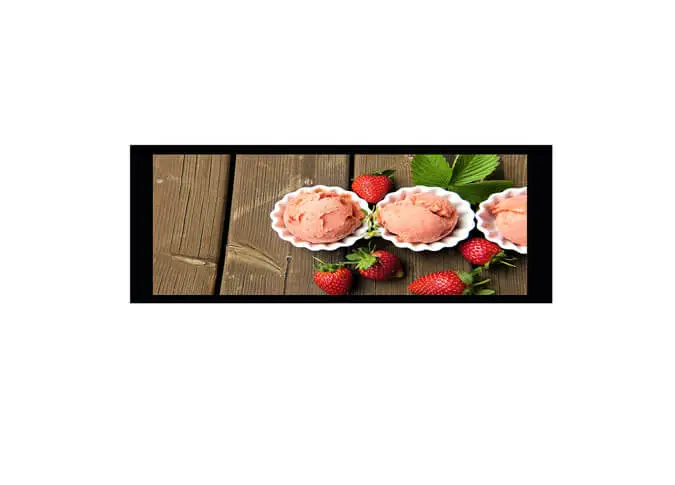

Z686006 Custom Module 6.86 Inch 480*1280 Stretched Bar LCD Display Ultra Wide View Angle MIPI Interface

  • Size：6.86"diagonal

  • Resolution: 480×1280 pixels, ultra-wide portrait format

  • View angle:IPS panel with full viewing angle

  • Interface: MIPI DSI, 2/4 lane supported

  • Design-Friendly: Slim, modern form for stylish product integration

  • Customizable: FPC layout, brightness level, touch bonding, cover glass

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
6
6
6
ips tft panel bulk
china ips lcd bulk
china ips tft bulk
6
ips tft panel company
china ips lcd company
china ips tft company
6
ips tft panel
china ips lcd
china ips tft
6
ips tft panel wholesale
china ips lcd wholesale
china ips tft wholesale
6
ips tft panel manufacturer
china ips lcd manufacturer
6
ips tft panel
china ips lcd
china ips tft
ips tft panel wholesale

Overview of Z686006 Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface

1

Z686006 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This ultra-wide 6.86 inch bar-type LCD screen offers a 480×1280 resolution and MIPI interface. With a slim aspect ratio and vibrant IPS viewing, it fits vertically or horizontally into narrow spaces while delivering full HD-style clarity.built-in  HICNL9707 driver IC. This a-Si TFT LCD module come with 500cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc, we can also provide custom LCD display module for you.

3

Our LCD module factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the bar type TFT LCD passed ROHS, REACH Certification.

4

The 6.86 inch LCD screen is perfect for Wall-mounted control, voice assistant panels, intercoms,Electric vehicle dashboards, smart climate control,self-edge price tag,Equipment monitoring, compact PLC interfaces,self-checkout instructions, ticketing stations,medical diagnostics, handheld testers, measuring equipment.

Specifications of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.86

inch

2

Display Resolution

480 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

41.8 (H) × 125.4 (V）

um

4

LCM Outline Dimension

(Without FPC）

171.79 (W) × 65.72 (H) × 2.6 (T)

mm

5

LCD Outline Dimension

169.01 (W) × 63.39 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

N/A

mm

7

LCD Active Area

160.51 (W) × 60.19 (H)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ICNL9707

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.4% Min: 3.74%

-

14

LCD Contrast Ratio

Typ.: 1500 Min: 1000

-

15

FPC Version

Z686006-NZ01-I977-Y1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/4 Series 4 Parallel (16 lights in total)

-

20

Luminance

500

nit

21

Weight

0.105

kg


Interface Definition Description of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

VCC

POWER SUPPLY（3.3V）

3

IOVCC

I/O POWER SUPPLY（1.8V）

4

GND

Ground

5

RESET

LCM RESET PIN

6

IOVCC

I/O POWER SUPPLY（1.8V）

7

NC

No Connection

8

ID2

LCM ID PIN

9

ID1

LCM ID PIN

10-15

NC

No Connection

16

GND

Ground

17

D3N

Negative MIPI differential data input

18

D3P

Positive MIPI differential data input

19

GND

Ground

20

D2N

Negative MIPI differential data input

21

D2P

Positive MIPI differential data input

22

GND

Ground

23

CLKN

Negative MIPI differential CLOCK input

24

CLKP

Positive MIPI differential CLOCK input

25

GND

Ground

26

D1N

Negative MIPI differential data input

27

D1P

Positive MIPI differential data input

28

GND

Ground

29

D0N

Negative MIPI differential data input

30

D0P

Positive MIPI differential data input

31-32

GND

Ground

33-36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

37

NC

No Connection

38-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.


Mechanical Drawing of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface


Mechanical Drawing of Bar Type 6.86 Inch LCD Screen Panel 480*1280 Full View Angle MIPI Interface
