Z70103 Sunlight Readable 7 inch TFT LCD Display Panel 1000 cd/m2 IPS View RGB Interface

  • Resolution: 1024*600

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 1000 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 1
z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 1
z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 2
z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 4
z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 3
z70103 sunlight readable 7 inch tft lcd display panel 1000 cd m2 ips view rgb interface 5

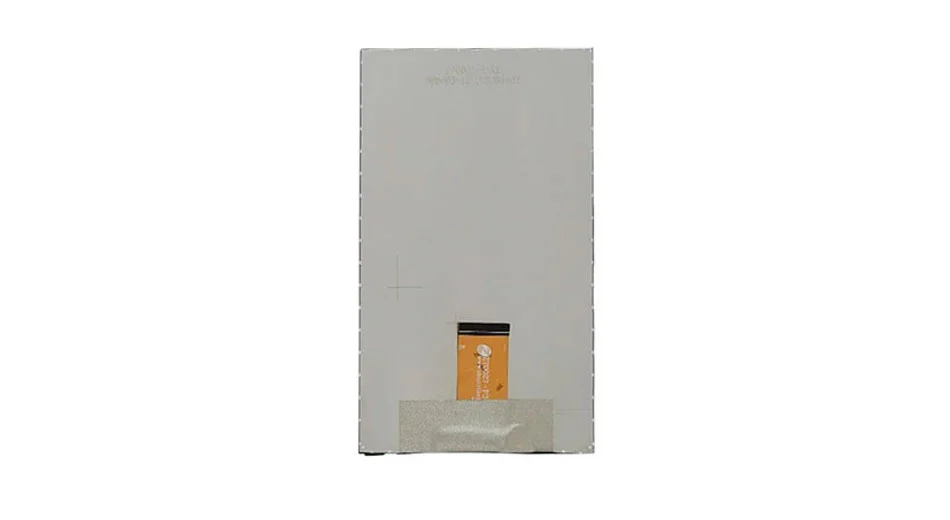

Overview of Z70103 Sunlight Readable 7 inch TFT LCD Display Panel 1000 cd/m2 IPS View RGB Interface

1

Z70103 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1024*600 resolution. IPS(In-plane Switching) technique make this 7" Square TFT LCD module have a wider view angle.This LCD display is built-in EK79001HN+EK73215BCGA driver IC.This a-Si TFT LCD come with RGB interface.With high brightness 1000 nits.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, we can provide custom LCD modules for you.

3

As a LCD screen factory in China, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 7" LCD Screen is widely used on Automotive, Viusal doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, consumer electronics,3D printer, E-readers, Advertising, Vending, Education ect

General Specifications of Sunlight Readable 7 inch TFT LCD Display Panel 1000 cd/m2 IPS View RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024(H)  × RGB × 600  (V)

pixels

3

Pixel Pitch

50.2(H) × 143.2  (V)

um


4

LCM Outline Dimension

(Without FPC)

164.86 (W) ×99.96 (H) ×3.6 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm

6

LCD Active Area

154.21  (W)  ×85.92  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79001HN+EK73215BCGA

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0%    Min:4.8%

-

13

LCD Contrast Ratio

Typ.: 800

-

14

FPC Version

Z70042-HB2509-R V1

-

15

Interface

RGB

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6Series 7 Parallel (42 lights in total)

-

19

Luminance

1000  (typ)

nit

20

Weight

0.088

kg


Interface Definition Description of Sunlight Readable 7 inch TFT LCD Display Panel 1000 cd/m2 IPS View RGB Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY

8

MODE

DE / HV mode select mode    PIN

9

DE

Data Enable

10

VSD

Vertical synchronize Signal

11

HSD

Horizontal synchronize Signal

12- 19

B7-B0

DATA   BUS

20-27

G7-G0

DATA   BUS

28-35

R7-R0

DATA   BUS

36

GND

Ground

37

DCLK

Pixel clock signal in RGB I/F

38

GND

Ground

39

SHLR

Source right or left sequence control    PIN

40

UPDN

Gate up or down scan control    PIN

41

VDDE

TFT Gate ON Voltage

42

VEEG

TFT Gate OFF Voltage

43

AVDD

Power For Analog Circuit

44

RSTB

LCM    RESET    PIN

45

NC

No Connection

46

VCOM

Common Voltage

17

DITH

Dithering function enable control    PIN

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
