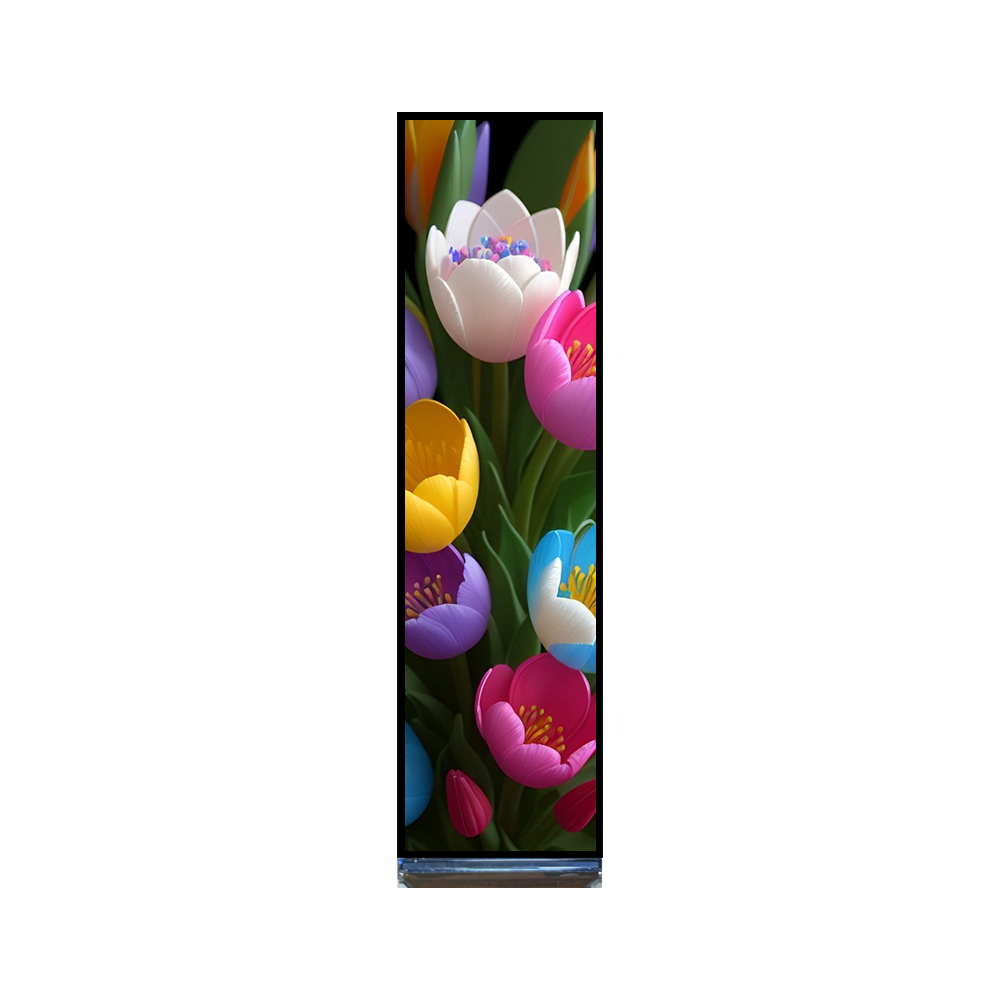

Z37001 3.7 Inch 240*960 LCD Display Bar Style ST7701S IC SPI+RGB Interface

  • Size: 3.7 inch

  • Resolution: 240*960

  • Interface: SPI+RGB

  • Driver IC: ST7701S

  • View Angle: IPS

  • Brightness: 350 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

bar tft
bar tft
bar type tft lcd
stretched bar lcd display
bar lcd

Overview of Z37001 3.7 Inch 240*960 LCD Display Bar Style ST7701S IC SPI+RGB Interface

1

Z37001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*960 resolution. IPS (In-plane Switching) technique make this 3.7" LCD module have a wider view angle. This bar type TFT is built-in ST7701S driver IC. This a-Si TFT LCD module come with SPI+RGB interface, 350 cd/m² brightness.

2

As a custom LCD screen manufacturer, if you have special requirements, like drive IC, interface, FPC, touch panel, color, backlight, etc, we can also customize for you.

3

Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the China LCD display panel passed ROHS, REACH Certification.

4

Like round TFT LCD module and square TFT display, the 3.7 inch bar LCD screen is smart home appliance, coffee machine, medical, vehicle, audio device, digital scale etc.

General Specifications 3.7 Inch 240*960 LCD Display Bar Style ST7701S IC SPI+RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.71

inch

2

Display Resolution

240 (H) × RGB × 960 (V)

pixels

3

Pixel Pitch

0.09525 (H) × 0.09525 (V)

Mm

4

LCM Outline Dimension

(Without FPC)

25.3 (W) ×98.89 (H) ×1.61 (T)

mm

5

LCD Outline Dimension

-

mm

6

LCD Active Area

22.86 (W) × 91.44 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

-

-

13

LCD Contrast Ratio

-

-

14

FPC Version

Z37001-P45H V1

-

15

Interface

3SPI+16 bits RGB Interface

-

16

Operating Temperature

-20°C~ 60°C

-

17

Storage Temperature

-30°C~ 70°C

-

18

Backlight Arrangement

White LED 4

-

19

Luminance

TBD

nit

20

Weight

-

kg


Interface Definition Description 3.7 Inch 240*960 LCD Display Bar Style ST7701S IC SPI+RGB Interface


Pin No.

Symbol

LCM Functional

Notes

1~2

LEDA

Power supply for backlight anode input terminal.


3~5

LEDK

Power supply for backlight cathode input terminal.


6~7

GND

Power Ground


8~9

VCC

Power supply: 2.6V ~ 3.3V


10

RESET

Reset signal input terminal. Active at 'L'.


11

NC

NC


12

SDA

Input/Output signal pin


13

SCL

Serial interface clock


14

CS

Chip select signal input pin


15

DCLK

Dot clock signal for RGB interface operation.


16

DE

Data enable signal for RGB interface operation.


17

VSYNC

Vertical (Frame) synchronizing input signal for RGB interface operation.


18

HSYNC

Horizontal (Line) synchronizing input signal for RGB interface



19~34


DB0~DB15

RGB interface data bus.

DB(0~4): B0~B4, DB(5~10): G0~G5, DB(11~15): R0~R4


35~37

GND

Power Ground


38

CTP_INT3.3V

Touch panel interrupt output


39

CTP_SDA3.3V

Touch panel I2C data


40

CTP_SCL3.3V

Touch panel I2C clock


41

CTP_RST3.3V

Touch panel reset


42~43

CTP_VDD3.3V

Touch panel Power supply 2.8~3.3V


44~45

CTP_GND

Power Ground
