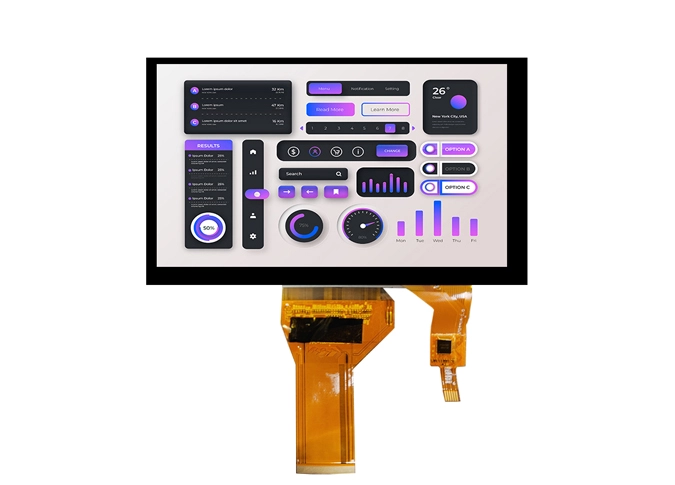

Z70082-ZC 7 Inch Touch Screen Panel 800*480 RGB I2C Interface FT3427 Capacitive Touch Controller

Size: 7"

Resolution: 800*480

LCD Interface: RGB

Touch Interface: IIC

Touch Panel: Capacitive

Touch Controller: FT3427

View Angle: IPS

Supply Type: Factory/Manufacturer

Certification:ISO9001,IATF16949,ROHS,REACH


z70082zc
z70082zc
z70082zc wholesale
z70082zc company
z70082zc supplier
z70082zc manufacturer
z70082zc factory

Overview of Z70082-ZC 7 Inch Touch Screen Panel 800*480 RGB I2C Interface FT3427 Capacitive Touch Controller

1

Z70082-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with multi-point capacitive  Square TFT LCD panel, resolution 800*480. This TFT touch display is built-in GT911 touch controller. This a-Si TFT LCD touch screen come with RGB and I2C interface.

2

If you have special requirement,like driver IC, interface,FPC, touch panel, backlight ,brightness,color etc, as a custom LCD display manufacturer China, we can also customize for you.

3

As a China LCD screen factory, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH certification

4

This 7 inch capacitive touch screen is widely used in Automotive, Viusal doorbell, home system,personal assistant, industrial control, fitness tracker, electronic POS, QR code,smart home, retail kiosks, consumer electronics,3D printer, E-readers, Advertising, Vending, Education ect

General Specifications Z70082-ZC 7 Inch Touch Screen Panel 800*480 RGB I2C Interface FT3427 Capacitive Touch Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800(H)  × RGB × 480  (V)

pixels

3

Pixel Pitch

64.2(H) × 179  (V)

um

4

CTP Outline Dimension (Without FPC)

165 (W) ×100 (H) ×7.53 (T)

mm

5

LCM Outline Dimension (Without FPC)

165 (W) ×100 (H) ×5.8 (T)

mm

6

LCD Active Area

152.40  (W) ×91.44  (H)

mm

7

View Direction (Gray Inversion)

ALL  (Full Viewing)

-

8

Driver IC

/

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: TBD

-

13

LCD Contrast Ratio

Typ.: 500    Min:400

-

14

FPC Version

Z70082-P50 V1

-

15

Interface

RGB

-

16

Operating Temperature

- 10°C~ 60°C

-

17

Storage Temperature

-20°C~ 70°C

-

18

Backlight Arrangement

LED/3 Series 9 Parallel (27 lights in total)

-

19

Luminance

Typ.:350

nit

20

Weight

TBD

g


Interface Definition Description Z70082-ZC 7 Inch Touch Screen Panel 800*480 RGB I2C Interface FT3427 Capacitive Touch Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

No Connection (Common Voltage)

7

DVDD

POWER SUPPLY(3.3V)

8

MODE

No Connection (DE/SYNC MODE SELECT,interal pull high select SYNC mode)

9

DE

DATA   INPUT    ENABLE

10

VS

Vertical    Sync    Input

11

HS

Horizontal    Sync    Input

12- 19

B7-B0

Blue    DATA

20-27

G7-G0

Green    DATA

28-35

R7-R0

Red    DATA

36

GND

Ground

37

DCLK

Sample    Clock

38

GND

Ground

39

L/R

Left/Right    Selection

40

U/D

Up/Down    Selection

41

VGH

No Connection    (Gate    ON    Voltage)

42

VGL

No Connection (Gate    OFF    Voltage)

43

AVDD

No Connection (Power For Analog Circuit)

44

RESET

Global    Reset    pin

45

NC

No Connection

46

VCOM

No Connection(Common Voltage)

47

DITHB

Dithering    Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


2.2 TP PIN


PIN NO.

PIN DEF.

FUNCTION DESC.

1

VDD

TP Input Power voltage(3.3V)

2

SCL

TP    I2C clock (SCL) clock (SCLK)(3.3V)

3

SDA

TP    I2C data (SDA) data input (MOSI)(3.3V)

4

GND

Ground

5

INT

TP    Interrupt    PIN(3 3V)

6

RESET

TP    RESET    PIN(3.3V)
