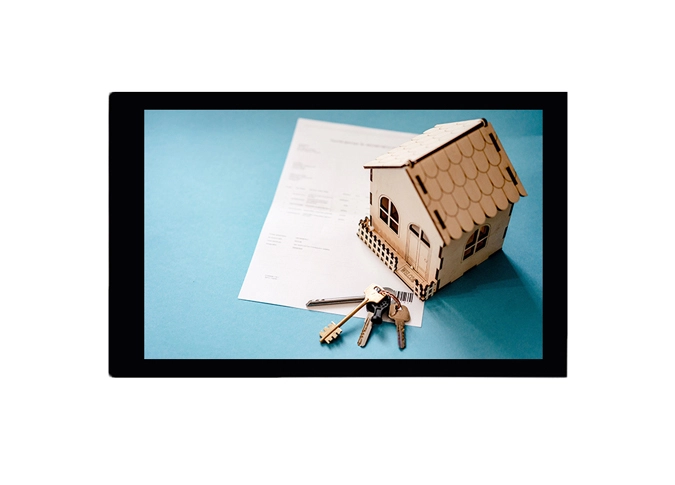

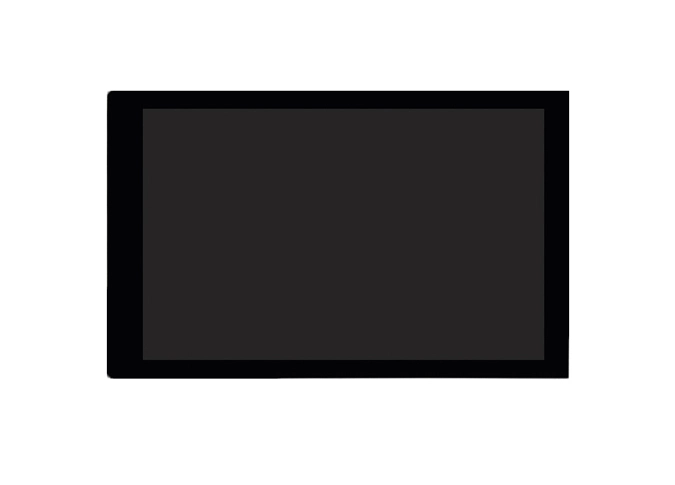

Z80033-ZC 8 Inch LCD Display Touch Screen 800*1280 GT911 I2C Interface Multi-touch Panel

Size: 8"

Resolution: 800*1280

LCD Interface: MIPI

Touch Interface: IIC

Touch Panel: Multi-point Capacitive touch

Driver IC: ILI9881C

Touch Controller:GT911

View Angle: IPS

Supply Type: Factory/Manufacturer

Certification:ISO9001,IATF16949,ROHS,REACH


z80033zc supplier
z80033zc supplier
z80033zc
z80033zc wholesale
z80033zc company
z80033zc manufacturer
z80033zc factory

Overview of Z80033-ZC 8 Inch LCD Display Touch Screen 800*1280 GT911 I2C Interface Multi-touch Panel

1

Z80033-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with multi-point capacitive touch square LCD panel, resolution 800*1280.This TFT touch display is built-in ILI9881C LCD driver IC and GT9271 touch controller .This a-Si TFT LCD touch module come with MIPI and I2C interface.

2

If you have special requirement, like driver IC, interface, FPC, touch panel, backlight, brightness, color etc, we can provide custom LCD display module for you.

3

As a China LCD module manufacturer, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH certification

4

This 8 inch IPS Touch Screen is widely used in visual doorbell, smart home, dashboard navigation, game player, eduction, photo frame, home security ect

General Specifications Z80033-ZC 8 Inch LCD Display Touch Screen 800*1280 GT911 I2C Interface Multi-touch Panel


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

800(H)× RGB × 1280(V)

pixels

3

Pixel Pitch

44.85(H)× 134.55(V)

um

4

LCM Outline Dimension

(Without FPC)

114.66 (W) ×184.16 (H) ×2.61 (T)

mm

5

LCD Outline Dimension

112.64(W) × 181.82 (H) × 0.8 (T)

mm

6

LCD Active Area

107.64(W)×172.22(H)

mm

7

TLCM Outline Dimension

121.84 (W) ×198.34 (H) ×4.26 (T)

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ILI9881C-04

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.8%

-

14

LCD Contrast Ratio

Typ.: 1200  Min:900

-

15

FPC Version

Z80026-X50H-V1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/3 Series 7 Parallel (21 lights in total)

-

20

Luminance

400

nit

21

Weight

0.197

kg


Interface Definition Description Z80033-ZC 8 Inch LCD Display Touch Screen 800*1280 GT911 I2C Interface Multi-touch Panel


2.1 LCM  PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

NC

No Connection

5-8

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

9-10

GND

Ground

11

D2P

Positive MIPI differential data input

12

D2N

Negative MIPI differential data input

13

GND

Ground

14

D1P

Positive MIPI differential data input

15

D1N

Negative MIPI differential data input

16

GND

Ground

17

CLKP

Positive MIPI differential CLOCK input

18

CLKN

Negative MIPI differential CLOCK input

19

GND

Ground

20

D0P

Positive MIPI differential data input

21

D0N

Negative MIPI differential data input

22

GND

Ground

23

D3P

Positive MIPI differential data input

24

D3N

Negative MIPI differential data input

25

GND

Ground

26

TE

Tearing  EFFECT  PIN

27

RESET

LCM  RESET  PIN

28

ID

LCM  ID  PIN

29

IOVCC

I/O POWER SUPPLY(1.8V)

30-31

VDD

POWER SUPPLY(3.3V)

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.


2.2 TP  PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

TP_RESET

TP  Reset  PIN(3.3V)

3

TP_SDA

TP  I2C data (SDA) data input (MOSI)(3.3V)

4

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(3.3V)

5

TP_INT

TP  Interrupt  PIN(3.3V)

6

TP_VDD

TP Input Power voltage(3.3V)
