Custom TFT Display: A Comprehensive Guide to Choosing the Right LCD Module

A display is often one of the most visible components of an electronic product, but selecting the right module involves much more than choosing a screen size. Engineers and product designers need to match the display with the enclosure, processor, interface, touch system, operating environment, and user interface.

For this reason, a custom TFT display: a comprehensive guide should begin with the complete product requirement rather than a single specification such as resolution.

A professional display manufacturer can help turn these requirements into a practical LCD solution. Zhunyi Technology provides standard and customized TFT LCD modules, supporting different sizes, shapes, interfaces, brightness levels, touch technologies, and mechanical configurations. Its product range covers square, round, bar-type, and conventional rectangular displays.

What Does a Custom TFT Display Mean?

A custom TFT display is an LCD module modified to meet the requirements of a particular product. Customization does not necessarily mean developing an entirely new panel from scratch.

Depending on the project, customization can involve:

• Display size and active area

• Resolution

• Aspect ratio and shape

• Interface

• FPC and pin assignment

• Driver IC

• Backlight brightness

• Touch panel

• Cover glass

• Operating temperature

• Optical bonding

• Mechanical structure

Zhunyi's OEM and ODM services allow customers to provide their own drawings or specifications, after which the engineering team can develop samples for testing and approval before mass production.

This approach is useful when an existing standard LCD is close to the required specification but does not fit the final product exactly.

Step 1: Define the Display Size and Shape

The first step is to determine how much physical space is available inside the product.

A standard rectangular screen may be suitable for a tablet-style interface, while a Square TFT LCD module can make better use of compact control panels and embedded devices.

For example, Zhunyi offers square TFT products such as a 1.3-inch 240×240 IPS module with an SPI interface and ST7789V controller. The module is designed for compact products including handheld equipment, meters, IoT devices, medical equipment, and control interfaces.

For products with unusual mechanical structures, the display may instead need to be bar-shaped, circular, or completely customized.

The physical drawing should therefore be confirmed before discussing production. Important dimensions include the overall LCM size, active area, thickness, mounting holes, FPC location, and connector position.

Step 2: Select the Resolution and Aspect Ratio

Resolution should be determined according to viewing distance, screen size, graphical content, and processor capability.

A higher resolution is not automatically better. It can increase interface bandwidth, processing requirements, memory consumption, and potentially power consumption.

For example, Zhunyi's 12.3-inch bar-type TFT module provides 1920×720 resolution and an LVDS interface, making its ultra-wide format suitable for applications where a conventional 16:9 display would not fit the available space.

The correct approach is to balance:

Physical dimensions + viewing distance + image content + processor capability + interface bandwidth.

Step 3: Choose the Right LCD Panel Technology

IPS and TN are two common TFT LCD panel technologies.

IPS generally provides wider viewing angles and more consistent color performance. Zhunyi's standard TFT range includes IPS modules with viewing angles up to 178°, while its TN products provide a more cost-oriented option for applications where extreme viewing-angle performance is not essential.

A buyer should therefore ask whether users will view the screen directly from the front or from multiple directions.

For an industrial HMI mounted on a machine, a wide-view IPS display can make the interface easier to read from different positions. For a simple front-facing embedded instrument, TN may be sufficient.

How to Identify an IPS Panel

A common question is how to identify IPS panel technology after receiving a sample.

The most reliable method is to check the manufacturer's technical documentation. The datasheet should specify the panel technology or viewing characteristics.

Visual inspection can also provide clues:

1. Display a solid-color image.

2. View the screen directly from the front.

3. Move gradually toward the side.

4. Observe whether colors and brightness remain relatively stable.

IPS panels generally maintain better color consistency at wide viewing angles. However, this visual test cannot conclusively identify the panel type.

For OEM projects, buyers should request the exact panel specification rather than relying only on appearance.

How to Check if a Display Panel Is IPS or TN

If the product documentation does not clearly state the panel technology, several specifications can help.

Check the Viewing Angle

A full-view specification such as 178° is commonly associated with IPS TFT displays, although viewing-angle numbers alone should not be treated as absolute proof.

Check the Color Shift

TN panels can show stronger changes in brightness or color when viewed from different directions. IPS generally performs better in this respect.

Check the Manufacturer's Datasheet

For production purchasing, the datasheet is the most reliable source. It should be compared against the sample actually supplied.

Zhunyi provides technical documentation and engineering support for customized projects, including parameters such as display size, resolution, interface, pin assignment, luminance, active area, temperature, and touch configuration.

TFT or AMOLED: Which Is Better?

The question of TFT or amoled which is better depends heavily on the product.

TFT LCD uses a backlight, while AMOLED pixels are self-emissive. AMOLED can produce very deep blacks and high contrast, making it attractive for premium consumer devices. However, OLED technology also requires consideration of image retention and other application-specific characteristics.

TFT LCD can be a practical choice when the product prioritizes:

• Broad size selection

• Industrial integration

• High-brightness options

• Long-term product availability

• Multiple interface choices

• Cost control

• Custom mechanical structures

AMOLED can be attractive when the main priorities are:

• Very deep blacks

• High contrast

• Premium visual appearance

• Thin display construction

Therefore, which is better AMOLED or TFT should not be answered without knowing the product's requirements.

For industrial, medical, automotive, smart-home, POS, and embedded applications, TFT LCD remains a flexible solution. Zhunyi's TFT modules are currently used across these types of products.

Matching the Interface to the Main Controller

Interface compatibility is one of the most important technical considerations in a custom display project.

Common options include:

• SPI

• MCU

• RGB

• MIPI DSI

• LVDS

• eDP

Small embedded displays may use SPI or MCU interfaces, while high-resolution systems can require MIPI, LVDS, or eDP.

For example, Zhunyi's 12.3-inch 1920×720 bar display uses LVDS and provides a full-view IPS configuration. Its listed operating temperature is -20°C to 70°C, making it suitable for a range of industrial and vehicle-related applications.

Before selecting the module, engineers should confirm the host processor's supported interface, lane configuration, timing requirements, voltage, connector, and initialization method.

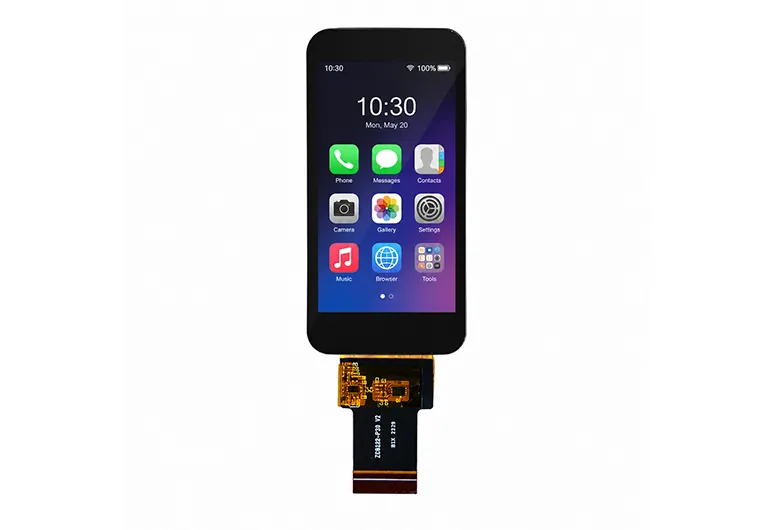

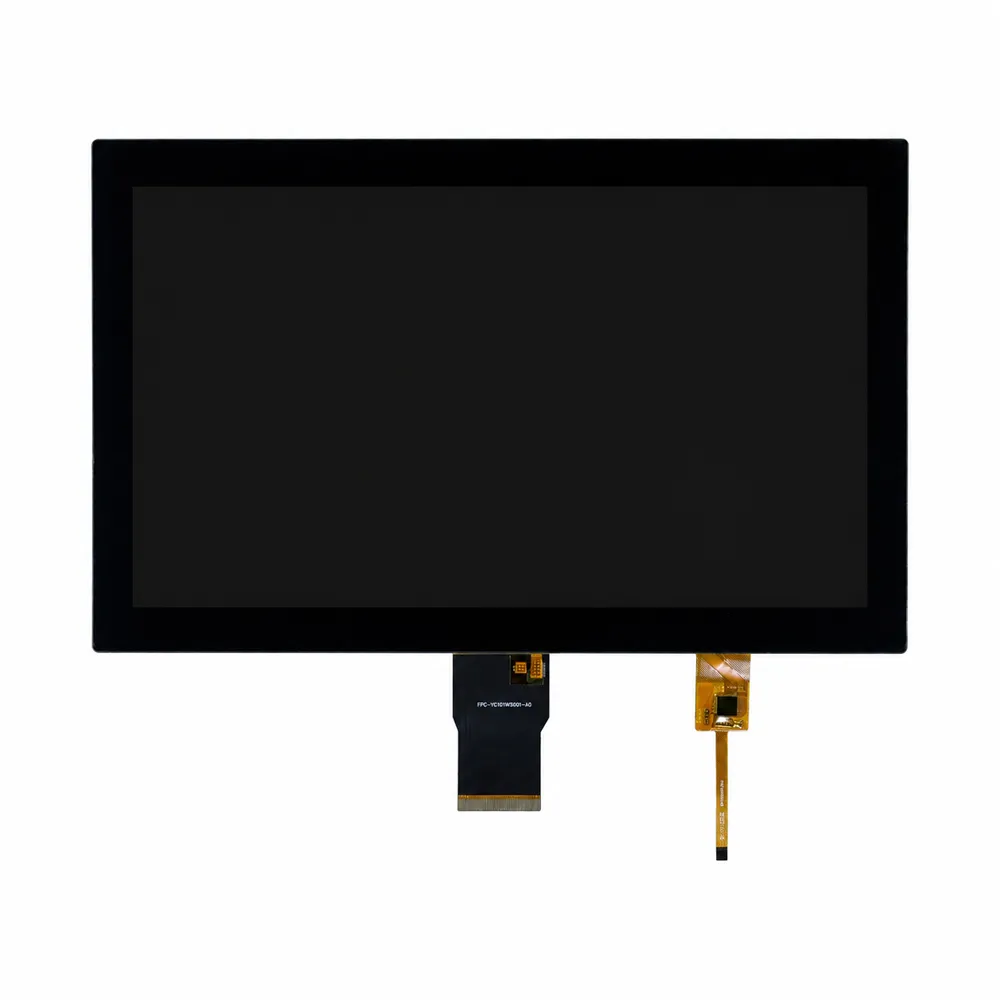

Touchscreen and Mechanical Customization

A TFT module may also need to work with a touch interface.

Depending on the product, customers can choose capacitive or resistive touch technology. Additional customization can include cover glass, FPC, backlight, optical bonding, and mechanical structure.

For example, a control panel used by consumers may benefit from a customized PCAP touch panel and cover glass, while industrial equipment may require a more specialized structure for operation in demanding environments.

The display, touch panel, and enclosure should therefore be designed as one system rather than as three independent components.

How to Evaluate LCD Module Manufacturers in China

When comparing LCD module manufacturers China, buyers should evaluate more than the quoted unit price.

Important questions include:

• Can the supplier provide engineering drawings?

• Are samples available before mass production?

• Can the FPC be customized?

• Are driver IC and interface options available?

• Can brightness be customized?

• Does the supplier support touch integration?

• Can the manufacturer maintain long-term supply?

• What quality-management systems are in place?

Zhunyi states that it provides OEM and ODM services, engineering support, reliability testing, and quality management under ISO 9001:2015 and IATF 16949:2016 systems. Its production capabilities are designed for both standard and customized TFT LCD projects.

This type of technical support can be particularly valuable when sourcing from LCD screen manufacturers in China for a product that will remain in production for several years.

Common Questions About Custom TFT Displays

Can a standard TFT LCD be customized?

Yes. Depending on the manufacturer's capabilities, customization can include size, resolution, FPC, interface, touch panel, brightness, backlight, cover glass, and mechanical structure.

Is a Square TFT LCD display suitable for industrial equipment?

Yes. Square displays can be useful for compact HMIs, instruments, meters, controllers, and embedded systems where the available installation area is close to a square format.

How do I know whether my LCD is IPS?

Check the manufacturer's datasheet first. Viewing-angle and color-shift tests can provide useful indications, but technical documentation is more reliable for production verification.

Which is better, AMOLED or TFT?

Neither technology is universally better. AMOLED has advantages in contrast and black levels, while TFT LCD offers extensive choices for interfaces, sizes, brightness, and industrial applications.

Can a China LCD supplier provide a complete custom solution?

A capable manufacturer can support much more than the LCD panel itself. Zhunyi, for example, provides OEM/ODM services covering display specifications, touch panels, FPC, brightness, interfaces, and related engineering requirements.

Is a 12.3-inch LVDS display suitable for automotive products?

It can be. Zhunyi's 12.3-inch 1920×720 LVDS TFT modules are designed for applications including vehicle interfaces, dashboards, navigation, and other embedded systems.

Conclusion

A successful custom TFT project starts with clearly defining the complete product requirement. Screen size, resolution, shape, panel technology, interface, touch function, brightness, mechanical dimensions, and operating conditions should all be considered together.

Whether a project needs a Square TFT LCD display, a high-brightness 12.3-inch LVDS bar screen, or a compact embedded module, the right manufacturer should be able to support both engineering development and production.

With standard products, OEM/ODM customization, multiple interfaces, and engineering support, Zhunyi provides TFT LCD solutions for companies sourcing display modules from China. The goal is not simply to find a screen that works, but to develop a display solution that fits the complete product reliably from prototype to mass production.
