Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface

  • Resolution:360*360

  • Interface:SPI

  • View Angle:All direction

  • Brightness:300 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

z14601 1
z14601 1
z14601 2
z14601 3
z14601 4
z14601 5
z14601 6

Overview of Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface

1

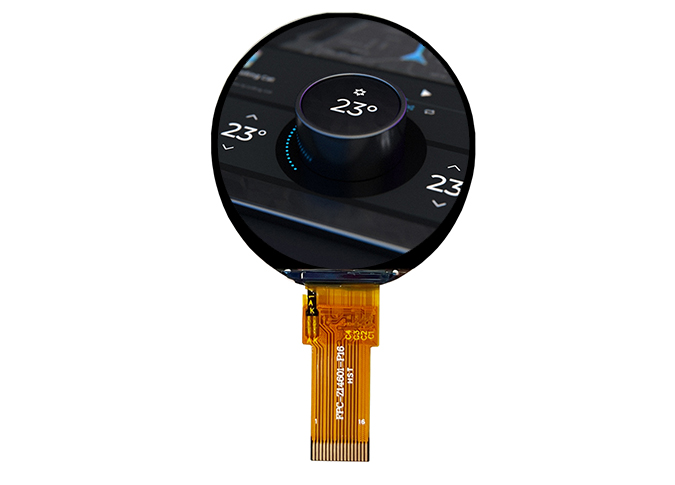

Z14601 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 360*360 resolution. IPS(In-plane Switching) technique make this 1.46" LCD module have a wider view angle.This handheld LCD display is built-in ST77916 driver IC.This a-Si TFT LCD come with SPI interface.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc, the round LCD screen manufacturer can also customize for you.

3

Our round LCD panel factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

As well as the popular 4.5 inch LCD display, the 1.46" round LCM is widely used on smart watch, smart home control panel, protable device, medical instrument, industrial equipment,power bank,smart bracelet, digital necklace ect

General Specifications of Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.46

inch

2

Display Resolution

360(H) × RGB × 360  (V)

pixels

3

Pixel Pitch

102.6x102.6

um

4

LCM Outline Dimension

(Without FPC)

39.3 (W) ×40.96 (H) ×1.6 (T)

mm

5

LCD Outline Dimension

38.936x40.706

mm

6

LCD Active Area

36.94  (W) ×36.94  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST77916

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 2.94%    Min:2.5%

-

13

LCD Contrast Ratio

Typ.: 1200    Min:900

-

14

FPC Version

Z14601-P16 V1

-

15

Interface

4LINE-SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1Series3Parallel

-

19

Luminance

300(typ)

nit

20

Weight

0.003

g


Interface Definition Description of Z14601 High Resolution 360*360 1.46 inch Round TFT LCD Display ST77916 Driver SPI Interface


PinN

Symbol

Function

1

GND

Power ground

2

LEDA

Power for LED back light   anode (+)

3

LEDK

Power for LED back light   cathode(-)

4

GND

Power ground

5

LCD  VCC

Power supply( 3.3V)

6

IOVCC

I/O Power supply(1.8V/3.3V)

7

GND

Power ground

8

SDA

LCM   SPI data (SDA) data input (MOSI)

9

D/CX

Display data/command selection pin in 4-line serial interface.

10

SCL

LCM   SPI clock (SCL) clock (SCLK)

1 1

CS

Chip selection pin

12

RESET

This signal will reset the device and it must be applied to properly initialize the chip,signal is active low

13

FMARK  (TE)

Tearing effect signal is used to synchronize MCU to frame memory ,if not use let this pin open.

14-16

GND

Power ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
