Z35015-ZC 320*480 3.5 Inch I2C TFT Touch Screen Capacitive ILI9488 Driver Controller IPS View

Size: 3.5"

Resolution: 320*480

LCD Interface: MIPI

Touch Interface: IIC

Touch Panel: Capacitive

Driver IC: ILI9488

Touch Controller:GT1151QM

View Angle: IPS

Supply Type: Factory/Manufacturer

Certification:ISO9001,IATF16949,ROHS,REACH


z35015zc factory
z35015zc factory

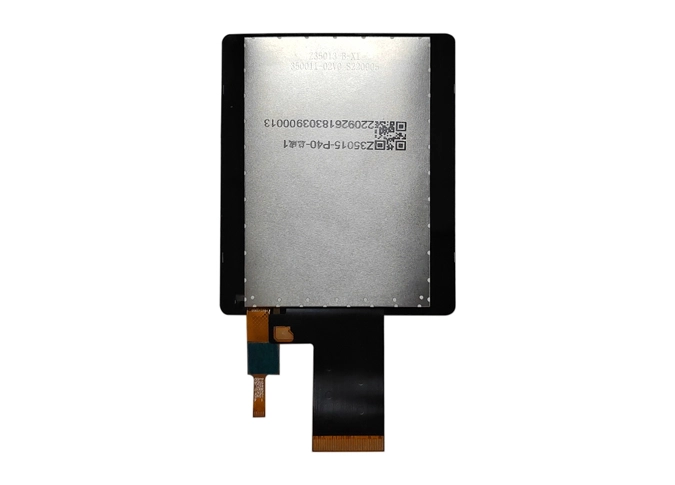

z35015zc company
z35015zc
z35015zc wholesale
z35015zc manufacturer
z35015zc supplier

Overview of Z35015-ZC 320*480 3.5 Inch I2C TFT Touch Screen Capacitive ILI9488 Driver Controller IPS View

1

Z35015-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 320*480. This Square TFT LCD panel is built-in ILI9488 LCD driver IC and GT1151QM touch controller. This a-Si TFT LCD touch module come with MIPI and I2C interface.

2

If you have special requirement, like driver IC, interface, FPC, touch panel, backlight, brightness, color etc, as a custom LCD screen manufacturer, we can also customize for you.

3

As a China LCD screen factory, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 3.5 inch vertical touch screen is widely used in smart home, game player, media player, digital camera, GPS Navigation, Industrial control, measurement instruments, vehicle infotainment, POS terminals, electronical lock ect

General Specifications Z35015-ZC 320*480 3.5 Inch I2C TFT Touch Screen Capacitive ILI9488 Driver Controller IPS View


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320(H) × RGB × 480(V)

pixels

3

Pixel Pitch

153(H)× 153(V)

um

4

CTP Outline Dimension

(Without FPC)

69.36 (W) ×87.30 (H) ×3.70 (T)

mm

5

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96(W) ×73.44(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.05%  Min:3.45%

-

13

LCD Contrast Ratio

Typ.: 1000  Min:800

-

14

FPC Version

Z35014-P40 V2

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 2 Parallel (6 lights in total)

-

19

Luminance

250

nit

20

Weight

0.035

kg


Interface Definition Description Z35015-ZC 320*480 3.5 Inch I2C TFT Touch Screen Capacitive ILI9488 Driver Controller IPS View


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

TDP0

Positive MIPI differential data input

3

TDN0

Negative MIPI differential data input

4

GND

Ground

5

TDP1

Positive MIPI differential data input

6

TDN1

Negative MIPI differential data input

7

GND

Ground

8

TCP

Positive MIPI differential CLOCK input

9

TCN

Negative MIPI differential CLOCK input

10

GND

Ground

11-12

NC

No Connection

13

GND

Ground

14-15

NC

No Connection

16-17

GND

Ground

18-19

1.8V

POWER SUPPLY(1.8V)

20

ID1

ID1 PIN

21

ID2

ID2 PIN

22-23

NC

No Connection

24

RESET

LCM  RESET  PIN

25-26

NC

No Connection

27

GND

Ground

28-29

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

30

GND

Ground

31

NC

No Connection

32-33

GND

Ground

34

NC

No Connection

35-36

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

37

GND

Ground

38-39

VCC

POWER SUPPLY(2.8V)

40

NC

No Connection

RESET voltage should be consistent with 1.8V voltage, or there probably is black screen fault when power on.
