AMOLED vs PMOLED: Which Display Technology Is Better for Wearable Devices?

Introduction – Why Display Choice Matters in Wearable Design

The display is one of the most critical components in any wearable device. Whether it is a smartwatch, fitness tracker, medical monitoring band, or industrial wearable terminal, the display directly influences user experience, power efficiency, and product positioning.

Two OLED-based technologies dominate today’s wearable market: AMOLED (Active-Matrix Organic Light-Emitting Diode) and PMOLED (Passive-Matrix Organic Light-Emitting Diode). Both are self-emissive technologies, meaning they do not require a backlight, enabling high contrast and thin form factors. However, their driving mechanisms differ significantly, leading to major differences in performance, cost, and application suitability.

In product development scenarios, manufacturers such as zhunyi provide both OLED and TFT-based display solutions to support different wearable requirements, ranging from high-resolution smartwatches to low-power basic bands.

This article breaks down AMOLED vs PMOLED from an engineering and sourcing perspective to help you choose the right technology for your wearable product.

Why Wearable Devices Require Special Display Consideration

Wearable devices are not simply “small smartphones.” They operate under stricter constraints:

• Limited battery capacity (typically 200–500 mAh in smartwatches)

• Continuous or frequent usage throughout the day

• Compact mechanical design (often under 12 mm thickness)

• Outdoor visibility requirements

These constraints make display selection a core engineering decision rather than an aesthetic one.

Key Wearable Display Requirements

According to market research from Statista, the global smartwatch market is projected to grow significantly, with OLED-based displays becoming the dominant choice in premium segments due to their efficiency and visual performance.

Core Technology Difference: AMOLED vs PMOLED

The main difference lies in how pixels are controlled.

AMOLED (Active Matrix OLED)

AMOLED uses a thin-film transistor (TFT) backplane, where each pixel is individually controlled and maintained. This allows:

• High resolution

• Stable brightness

• Fast refresh rates

• Better energy efficiency in dynamic content

In wearable applications, AMOLED is widely used for advanced interfaces such as full-color watch faces and interactive dashboards.

Manufacturers like zhunyi integrate AMOLED into their high-end display lineup, including circular and rectangular modules for smartwatch applications.

PMOLED (Passive Matrix OLED)

PMOLED uses a simpler row-by-row scanning method. Pixels are activated sequentially rather than individually controlled.

This results in:

• Lower manufacturing cost

• Simpler driver IC design

• Better suitability for small, low-resolution displays

However, as resolution increases, power consumption rises significantly due to scanning limitations.

AMOLED vs PMOLED Technical Comparison

Power Consumption – The Key Engineering Factor

Power consumption is one of the most important metrics for wearable devices.

AMOLED displays consume power dynamically depending on content. Black pixels are effectively turned off, reducing energy usage significantly. This makes AMOLED ideal for modern UI designs that use dark mode interfaces.

PMOLED, however, requires higher instantaneous current during row scanning. As display size increases, power consumption rises sharply.

Power Behavior Comparison

According to research published in IEEE display studies, OLED efficiency improvements are strongly linked to pixel-level control, which explains AMOLED’s advantage in wearable applications.

Resolution and Visual Performance

AMOLED supports high pixel density displays suitable for modern smartwatch interfaces, including animations and rich graphics.

PMOLED is limited to simple UI elements such as icons, numbers, and basic symbols.

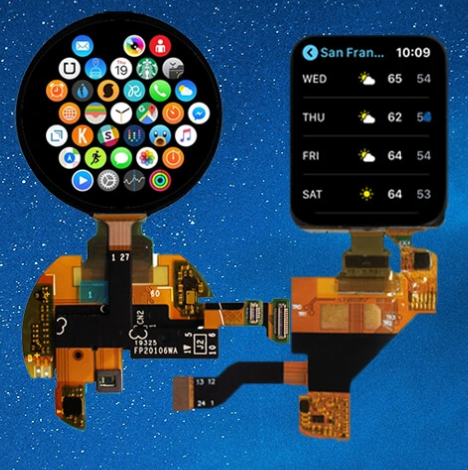

For example, amoled module solutions are commonly used in premium smartwatches due to their ability to support high-resolution circular interfaces.

PMOLED in Cost-Sensitive Wearable Products

Despite limitations, PMOLED still plays an important role in entry-level wearable devices.

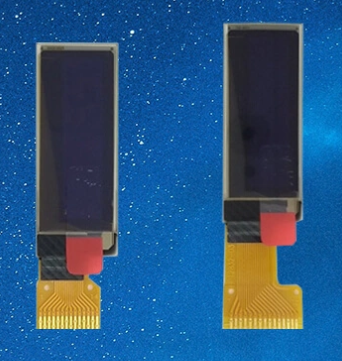

A pmoled screen is often used in:

• Basic fitness bands

• Step counters

• Simple medical indicators

Its advantages include:

• Lower BOM cost

• Simpler integration

• Lower controller complexity

For manufacturers focusing on ultra-low-cost wearable segments, PMOLED remains a practical solution.

Application-Based Selection Guide

Wearable Application Fit Table

For ODMs and OEMs working with zhunyi, both technologies can be customized based on resolution, interface, and form factor requirements.

Cost vs Performance Trade-off

AMOLED modules involve more complex manufacturing processes due to TFT backplanes and higher material requirements. PMOLED modules, by contrast, use simpler structures and lower-cost driver ICs.

This creates a clear segmentation:

• AMOLED → performance-driven products

• PMOLED → cost-driven products

Design Considerations for Engineers

When selecting between AMOLED and PMOLED, engineers should evaluate:

• UI complexity

• Battery capacity

• Expected refresh rate

• Device price target

• Operating environment

This ensures the display aligns with both technical and commercial goals.

Summary

AMOLED and PMOLED serve different segments of the wearable display market. AMOLED is ideal for high-resolution, power-efficient, and feature-rich smartwatches, while PMOLED is better suited for low-cost, simple-function wearable devices. The right choice depends on resolution needs, power constraints, and product positioning. For manufacturers, selecting the correct display technology directly impacts user experience and product competitiveness in the wearable market.

FAQ

1. Which is better for smartwatches, AMOLED or PMOLED?

AMOLED is generally better due to higher resolution, better power efficiency in dynamic UI, and richer visual performance.

2. Is PMOLED still used in wearable devices?

Yes, PMOLED is widely used in basic fitness bands and simple display devices due to its low cost and simple structure.

3. Does AMOLED consume less power than PMOLED?

In most wearable use cases with dynamic interfaces, AMOLED consumes less power, especially when dark mode is used.

4. Why is PMOLED limited in resolution?

Because it uses row-by-row scanning, higher resolution increases power demand and reduces brightness efficiency.

5. Can both technologies be used outdoors?

Yes, but AMOLED generally performs better in high-brightness environments due to higher peak luminance capability.
