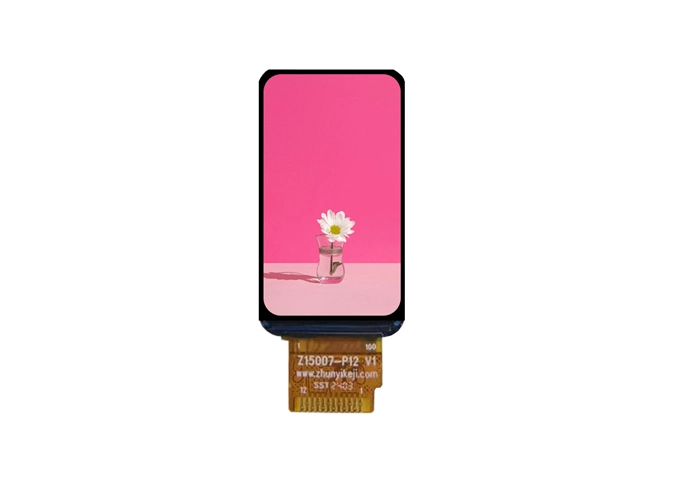

Z15007 1.47 inch LCD Module SPI Interface ST7789P3 Controller 172x320 IPS Screen

  • Resolution: 172x320

  • Interface: SPI

  • View Angle: IPS

  • Brightness: 600

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH


z15007
z15007
z15007 1
z15007 2
z15007 3
z15007 4

Overview of Z15007 1.47 inch LCD Module SPI Interface ST7789P3 Controller 172x320 IPS Screen

1

Z15007 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 172x320 resolution. IPS(In-plane Switching) technique make this 1.47" LCD module have a wider view angle.This LCD display is built-in ST7789P3 driver IC.This a-Si TFT LCD come with SPI interface.

2

If you have special requirement,like drive IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 1.47" LCD Screen is widely used on smart watch, smart home control panel, protable device, medical instrument, industrial equipment, bluetooth earphone, smart bracelet ect

Specifications of Z15007 1.47 inch LCD Module SPI Interface ST7789P3 Controller 172x320 IPS Screen


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.46

inch

2

Display Resolution

172(H) × RGB × 320(V)

pixels

3

Pixel Pitch

102.6(H) × 102.6(V)


um


4

LCM Outline Dimension

(Without FPC)


19.65 (W) ×36..76 (H) × 1.60 (T)


mm

5

LCD Outline Dimension

19.4472 (W) × 36.462 (H) × 0.5 (T)

mm

6

LCD Active Area

17.6472(W) ×32.832(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW


-

8

Driver IC

ST7789P3


-

9

Pixel Arrangement

RGB-Stripe


-

10

Display Mode

Normal Black


-

11

Pixel driving Element

a-Si TFT


-

12

LCD Transmittance

Typ.: 3.6%    Min:3.2%


-

13

LCD Contrast Ratio

Typ.: 1300    Min:1000


-

14

FPC Version

Z15007-P12 V1


-

15

Interface

SPI


-

16

Operating Temperature

-20°C~ 70°C


-

17

Storage Temperature

-30°C~ 80°C


-

18

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)


-

19

Luminance

Typ.:600

nit

20

Weight

TBD

kg


Interface Definition Description of Z15007 1.47 inch LCD Module SPI Interface ST7789P3 Controller 172x320 IPS Screen


PIN NO.

PIN DEF.

FUNCTION DESC.


1


GND


Ground


2


LEDK


POWER SUPPLY- FOR BACKLIGHT CATHODE


3


LEDA


POWER SUPPLY- FOR BACKLIGHT ANODE


4


VDD


POWER    SUPPLY


5-6


GND


Ground


7


D/C


SPI    Data/Command    Control    PIN


8


CS


Chip    selection    pin


9


SCL


SPI    clock (SCL)    clock    (SCLK)


10


SDA


SPI    data (SDA)    data    input (MOSI)


11


RESET


LCM    RESET    PIN


12


GND


Ground

RESET voltage should be consistent with VDD voltage, or there probably is black screen fault when power on.
