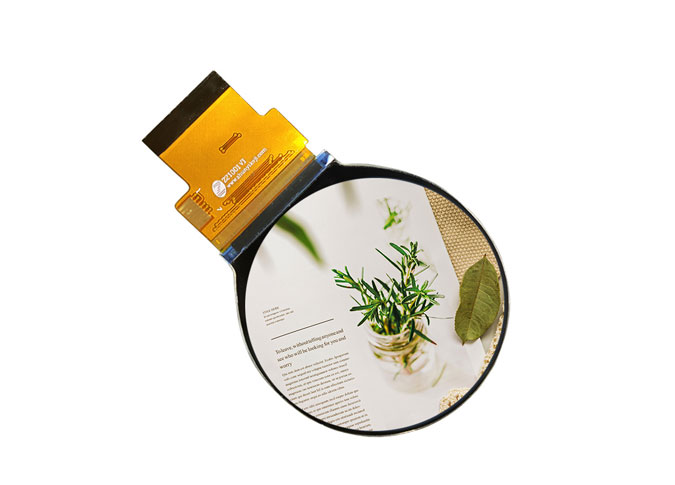

Z21002 2.1 Inch Round LCD Panel 480*480 MIPI Interface

  • Size: 2.1 inch

  • Resolution: 480*480

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 380 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

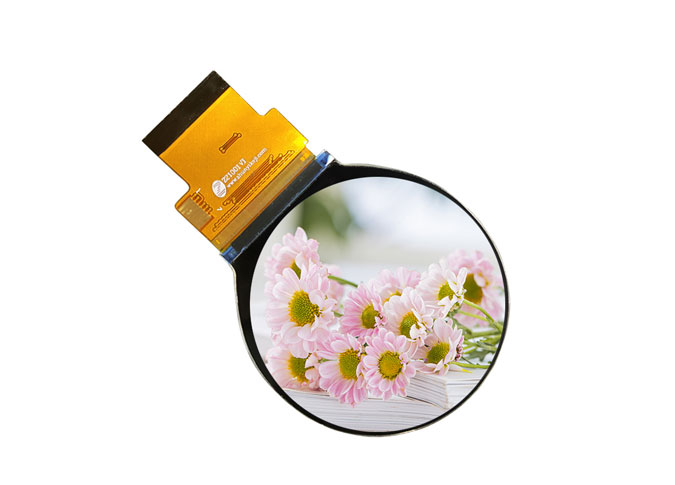

high quality round tft lcd factories
high quality round tft lcd factories
round lcd
round lcd display
round lcd panel

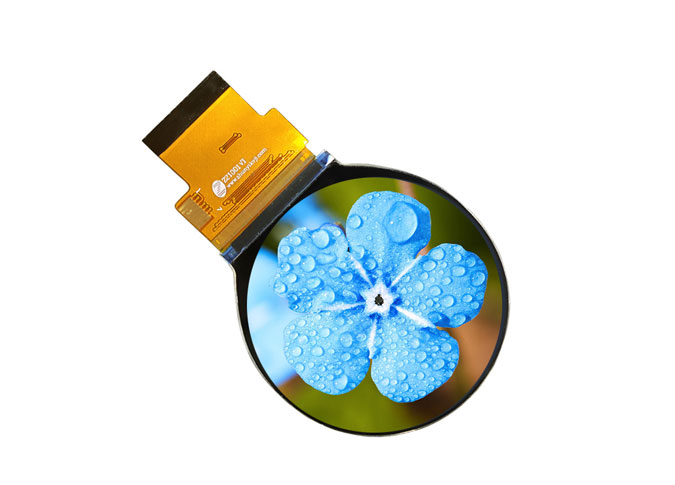

round lcd screen

Overview of Z21001 2.1 Inch Round LCD Panel 480*480 MIPI Interface

1

Z21001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*480 resolution. IPS (In-plane Switching) technique make this 2.1" LCD module have a wider view angle. This round TFT LCD panel is built-in ST7701S driver IC. This a-Si TFT LCD module come with MIPI interface, 380 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight etc, as a leading custom lcd display supplier, we can also customize for you.

3

Our China LCD screen factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 2.1 inch round LCD screen is widely used in smart watch, clock, electric bike navigation, vehicle dashboard, smart home appliance, handheld device, industry, advertising, robot, sweeper, scale etc.

General Specifications 2.1 Inch 480*480 Round LCD Screen ST7701S Controller MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.1

inch

2

Display Resolution

480 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

111 (H) × 111 (V)

um

4

LCM Outline Dimension

(Without FPC)

56.18 (W) × 59.71 (H) × 2.3 (T)

mm

5

LCD Outline Dimension

55.88 (W) × 59.36 (H) × 0.8 (T)

mm

6

LCD Active Area

53.28 (W) × 53.28 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.0% Min: 3.6%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z21002-P30-M V4

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

380

nit

20

Weight

0.012

kg


Interface Definition Description 2.1 Inch 480*480 Round LCD Screen ST7701S Controller MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

2-3

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

4

VCI

POWER SUPPLY (2.8V)

5

IOVCC

I/O POWER SUPPLY (1.8V)

6

RESET

LCM RESET PIN (1.8V)

7

TE

LCM Tearing Effect PIN

8

PWM

LCM PWM PIN

9

GND

Ground

10

D0P

Positive MIPI differential data input

11

D0N

Negative MIPI differential data input

12

GND

Ground

13

D1P

Positive MIPI differential data input

14

D1N

Negative MIPI differential data input

15

GND

Ground

16

TCP

Positive MIPI differential CLOCK input

17

TCN

Negative MIPI differential CLOCK input

18

GND

Ground

19-20

NC

No Connection

21

GND

Ground

22-23

NC

No Connection

24

GND

Ground

25

TP_INT

TP Interrupt PIN

26

TP_SDA

TP I2C data (SDA) data input (MOSI)

27

TP_SCL

TP I2C clock (SCL) clock (SCLK)

28

TP_RESET

TP RESET PIN

29

TP_VCI

TP POWER SUPPLY

30

TP_IOVCC

TP I/O POWER SUPPLY

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing 2.1 Inch 480*480 Round LCD Screen ST7701S Controller MIPI Interface


Mechanical Drawing 2.1 Inch 480*480 Round LCD Screen ST7701S Controller MIPI Interface
