Z28003-ZC 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC

  • Size: 2.8 inch

  • Resolution: 240*320

  • LCD Interface: SPI

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Driver IC: ST7789T3

  • Touch Controller: GT911

  • View Angle: 12 o'clock

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

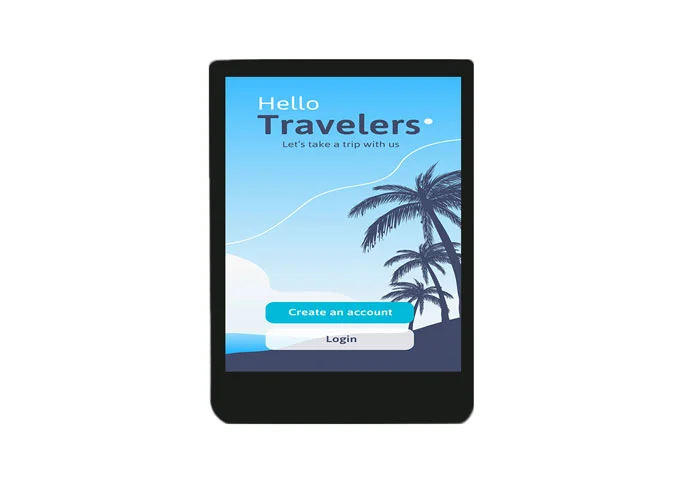

tft touch shield
tft touch shield

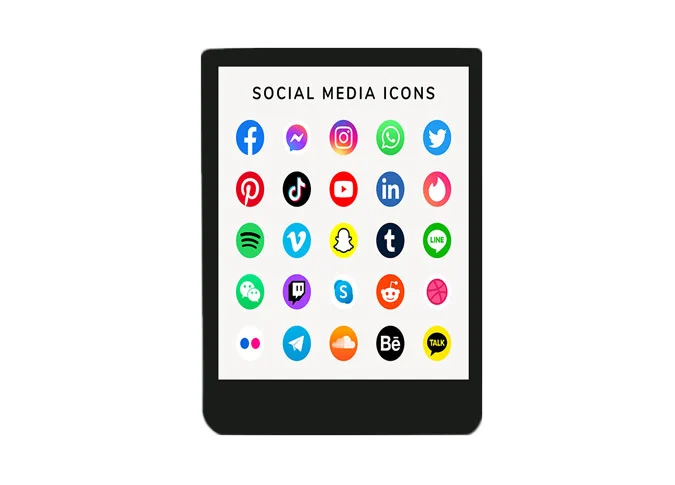

2 8 touch

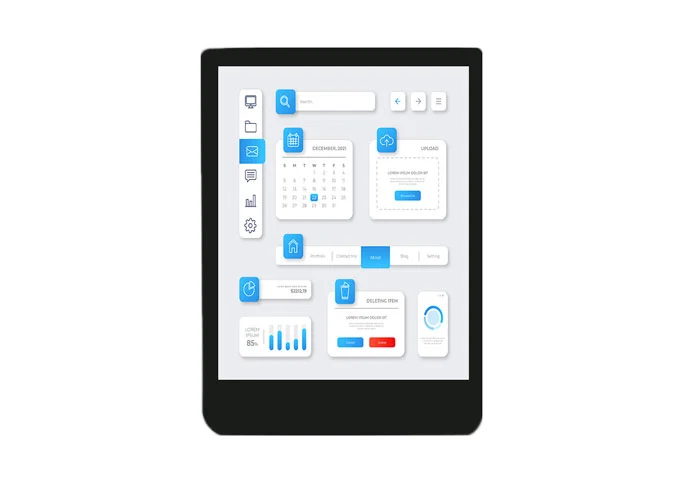

2 8 tft

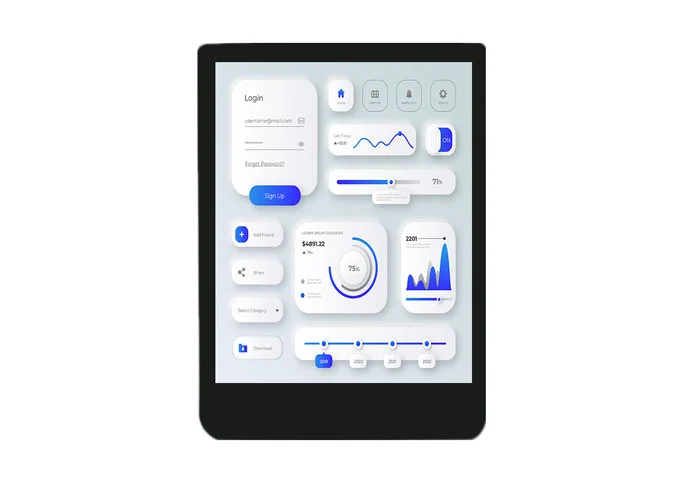

2 8 tft lcd shield

Overview of Z28003-ZC 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC

1

Z28003-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with capacitive touch panel, QVGA 240*320. This TFT touch display is built-in ST7789T3 LCD driver IC and GT911 touch controller. This a-Si TFT LCD touch module come with SPI and I2C interface. Multi-point touch.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, brightness, color etc, as a custom LCD display supplier, we can also customize for you.

3

Our display module factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 2.8 inch LCD touch screen, as a type of wholesale display screen, is widely used in medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, infrared thermometer, hematometer, etc.

General Specifications 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC


No.

Item

Specification

Unit

1

Display Size (Diagonal)

2.8

inch

2

Display Resolution

240 (H) × RGB × 320 (V)

pixels

3

Pixel Pitch

60 (H) × 180 (V)

um

4

CTP Outline Dimension

(Without FPC)

49.94 (W) × 71 (H) × 4.09 (T)

mm

5

LCD Outline Dimension

46 (W) × 64.65 (H) × 0.8 (T)

mm

6

LCD Active Area

43.2 (W) × 57.6 (H)

mm

7

View Direction (Gray Inversion)

12 o'clock

-

8

Driver IC

ST7789T3-G4-1

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal White

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.4%

-

13

LCD Contrast Ratio

Typ.: 500

-

14

FPC Version

Z28003-P15 V1

-

15

Interface

SPI

-

16

Operating Temperature

-30°C~ 70°C

-

17

Storage Temperature

-40°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 4 Parallel (4 lights in total)

-

19

Luminance

Typ.: 300

nit

20

Weight

TBD

kg


Interface Definition Description 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC


2.1 LCM PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY

5

IOVCC

POWER SUPPLY

6

CS

LCM SPI Chip Select PIN

7

GND

Ground

8

SDA

LCM SPI data (SDA) data input (MOSI)

9

GND

Ground

10

SCK

LCM SPI clock (SCL) clock (SCLK)

11

GND

Ground

12

RESET

LCM RESET PIN

13

GND

Ground

14

DC

LCM Data/Command Control PIN

15

GND

Ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.


2.2 TP PIN

PIN NO.

PIN DEF.

FUNCTION DESC.

1

TP-VDD

TP Input Power voltage (3.3V)

2

TP-SCL

TP I2C clock (SCL) clock (SCLK)(1.8V)

3

TP-SDA

TP I2C data (SDA) data input (MOSI)(1.8)

4

TP-INT

TP Interrupt PIN

5

TP-RST

TP RESET PIN

6

GND

Ground

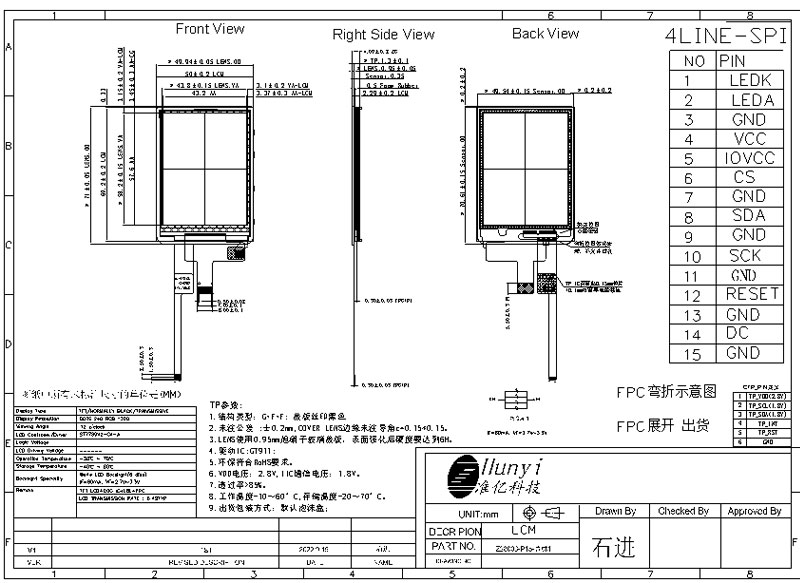

Mechanical Drawing 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC


Mechanical Drawing 2.8 Inch LCD Display Touch Screen 240*320 MCU Interface 30PIN IIC
