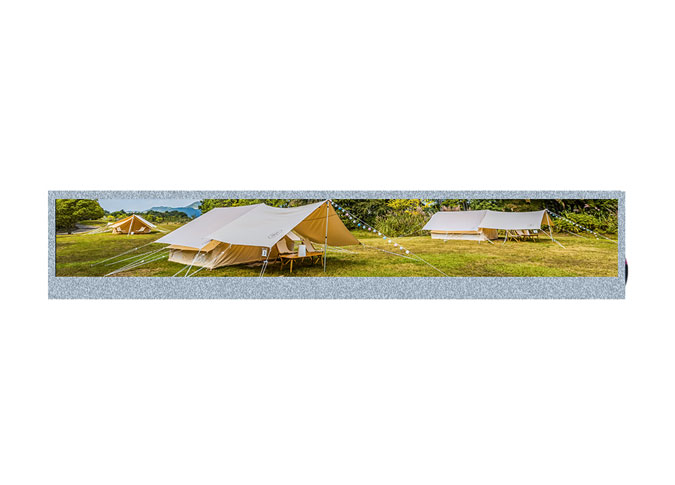

Z90030 Horizontal 9 Inch Bar LCD Panel 1024*105 RGB Interface 550 Nits

  • Size: 9 inch

  • Resolution: 1024*105

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 550 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

custom lcd manufacturers
custom lcd manufacturers
custom lcd module
custom lcd panel
custom display manufacturer
china display panel
china display screen
custom design lcd
custom display makers

Overview of Z90030 Horizontal 9 Inch Bar LCD Panel 1024*105 RGB Interface 550 Nits

1

Z90030 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 400*960 resolution. IPS (In-plane Switching) technique make this 3.99" LCD module have a wider view angle. This bar type TFT LCD is built-in ST7701S driver IC. This a-Si TFT LCD module come with SPI+RGB interface, 350 cd/m² brightness.

2

ZHUNYI, as a professional custom LCD display supplier, if you have special requirements, like drive IC, interface, FPC, touch panel, color, backlight, etc, we can also customize for you.

3

Our China LCD display screen carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3.99 inch bar LCD screen is smart home appliance, coffee machine, medical, industry, aircraft, vehicle, audio device, digital scale, etc.

General Specifications Horizontal 9 Inch Bar LCD Panel 1024*105 RGB Interface 550 Nits


No.

Item

Specification

Unit

1

Display Size (Diagonal)

9.0

inch

2

Display Resolution

1024 (H) × RGB × 105 (V)

pixels

3

Pixel Pitch

225 (H) × 225 (V)

um

4

LCM Outline Dimension

(Without FPC)

240.08 (W) × 37.8 (H) × 4.3 (T)

mm

5

LCD Active Area

230.4 (W) × 23.62 (H)

mm

6

View Direction (Gray Inversion)

12 o'clock

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 400 Min: 300

-

13

FPC Version

Z90030-P40 V1

-

14

Interface

RGB

-

15

Operating Temperature

-20°C~ 80°C

-

16

Storage Temperature

-30°C~ 85°C

-

17

Backlight Arrangement

LED/8 Series 3 Parallel (24 lights in total)

-

18

Luminance

Typ.: 400

nit

19

Weight

0.080

kg


Interface Definition Description Horizontal 9 Inch Bar LCD Panel 1024*105 RGB Interface 550 Nits


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (3.3V)

5-12

R0-R7

RED DATA

13-20

G0-G7

GREEN DATA

21-28

B0-B7

BLUE DATA

29

GND

Ground

30

PCLK

Clock input

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DE

Data enable signal in RGB I/F DE mode.

35

NC

No connection

36

GND

Ground

37-40

NC

No connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
