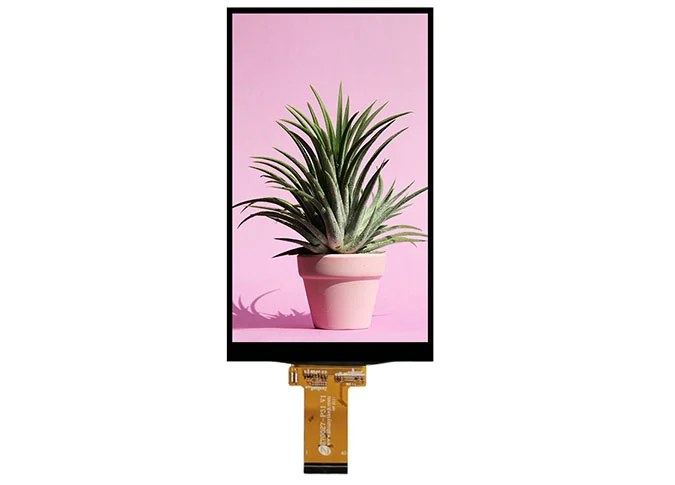

Z70027 7 Inch IPS LCD Screen QVGA 600*1024 380 Nits 40PIN MIPI Interface

  • Size: 7 inch

  • Resolution: 600*1024

  • Active Area: 89.28*152.37mm

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 400 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

7 inch ips screen
7 inch ips screen
7 ips lcd screen
7 ips screen
7 inch ips screen wholesale
7 ips lcd screen wholesale
7 ips screen wholesale
7 inch ips screen manufacturer
7 ips lcd screen manufacturer
7 ips screen manufacturer
7 inch ips screen bulk
7 ips lcd screen bulk
7 ips screen bulk

Overview of Z70027 7 Inch IPS LCD Screen QVGA 600*1024 380 Nits 40PIN MIPI Interface

1

Z70027 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 600*1024 resolution. IPS (In-plane Switching) technique make this 7" LCD module have a wider view angle. This LCD display is built-in OTA7290B-C driver IC. This a-Si TFT LCD module come with MIPI interface, 400cd/m² brightness.

2

If you have special requirements, like drive IC, interface, FPC, touch panel, brightness, color, backlight, touch panel, etc,as a China custom LCD manufacturer, we can also customize for you.

3

As a china LCD display supplier, Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The7 inch LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilators, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industries, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, elevator advertising, etc.

Specifications of 7 Inch IPS LCD Screen QVGA 600*1024 380 Nits 40PIN MIPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

6.95

inch

2

Display Resolution

600 (H) × RGB × 1024 (V)

pixels

3

Pixel Pitch

49.6 (H) × 148.8 (V)

um

4

LCM Outline Dimension

(Without FPC)

95 (W) × 163.2 (H) × 2.53 (T)

mm

5

LCD Outline Dimension

93.28 (W) × 159.82 (H) × 0.8 (T)

mm

6

LCD Active Area

89.28 (W) × 152.37 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

OTA7290B-C

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.7% Min: 3.95%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 600

-

14

FPC Version

Z70027-P31 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-10°C~ 50°C

-

17

Storage Temperature

-20°C~ 60°C

-

18

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

19

Luminance

380

nit

20

Weight

0.080

kg


Interface Definition Description of 7 Inch IPS LCD Screen QVGA 600*1024 380 Nits 40PIN MIPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-3

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

4

VGH

TFT Gate ON Voltage (18V)

5

VGL

TFT Gate OFF Voltage (-5.6V)

6

U/D

Gate up or down scan control PIN

7

L/R

Source right or left sequence control PIN

8-10

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

11

GND

Ground

12

AVDD

Power For Analog Circuit (10V)

13

GND

Ground

14

D2P

Positive MIPI differential data input

15

D2N

Negative MIPI differential data input

16

GND

Ground

17

D1P

Positive MIPI differential data input

18

D1N

Negative MIPI differential data input

19

GND

Ground

20

TCP

Positive MIPI differential CLOCK input

21

TCN

Negative MIPI differential CLOCK input

22

GND

Ground

23

D0P

Positive MIPI differential data input

24

D0N

Negative MIPI differential data input

25

GND

Ground

26-27

NC

No Connection

28

GND

Ground

29

LCD_ID(NC)

LCM ID PIN (No Connection)

30

LCD_RESET(NC)

LCM RESET PIN (No Connection)

31

NC

No Connection

32

IOVCC

I/O POWER SUPPLY(1.8V)

33-34

LCD_VCC

POWER SUPPLY

35

GND

Ground

36

STBYB

LCM Standby Mode PIN

37

GND

Ground

38

VCOM

Common Voltage

39-40

NC

No Connection

LCD_RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
