Z35012 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller

  • Size: 3.5 inch

  • Resolution: 320*480

  • Interface: MIPI

  • Driver IC: ILI9488

  • View Angle: 12 O'clock

  • Brightness: 350 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

tft ips tn
tft ips tn
ips tft tn
lcd display china
lcd display manufacturer
lcd display supplier
lcd manufacturers
lcd module manufacturer

Overview of Z35012 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller

1

Z35012 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 320*480 resolution. This LCD display is built-in ILI9488 driver IC. This a-Si square TFT  LCD module come with MIPI interface, 350 cd/m² brightness.12 o'clock view angle.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight, etc, as a TFT LCD module supplier, we can also customize for you.

3

As a square LCD supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3.5 inch LCD screen is medical oximeter, cosmetic instrument, household appliance, translator, music player, smart home, industry, infrared thermometer, hematometer, digital scale, etc.

General Specifications 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

153 (H) × 153 (V)

um

4

LCM Outline Dimension

(Without FPC)

54.76 (W) × 83.29 (H) × 2.39 (T)

mm

5

LCD Outline Dimension

52.96 (W) × 81.34 (H) × 0.8 (T)

mm

6

LCD Active Area

48.96 (W) × 73.44 (H)

mm

7

View Direction (Gray Inversion)

12'clock

-

8

Driver IC

ILI9488

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.50%

-

13

LCD Contrast Ratio

Typ.: 500

-

14

FPC Version

Z35012-P24 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-30°C~ 70°C

-

17

Storage Temperature

-40°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

340

nit

20

Weight

0.020

kg


Interface Definition Description 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

IM0/NC

LCM IM PIN/No Connection

2

DVDD

POWER SUPPLY (2.8V)

3

IOVDD

I/O POWER SUPPLY (1.8V)

4

IM1/NC

LCM IM PIN/No Connection

5

RESET

LCM RESE PIN

6

GND

Ground

7-8

NC

No Connection

9

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

10

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

11-12

GND

Ground

13-14

NC

No Connection

15

GND

Ground

16

TDP0

Positive MIPI differential data input

17

TDN0

Negative MIPI differential data input

18

GND

Ground

19

TDP1(NC)

Positive MIPI differential data input(No Connection)

20

TDN1(NC)

Negative MIPI differential data input(No Connection)

21

GND

Ground

22

TCP

Positive MIPI differential CLOCK input

23

TCN

Negative MIPI differential CLOCK input

24

GND

Ground

RESET voltage should be consistent with IOVDD voltage, or there probably is black screen fault when power on.

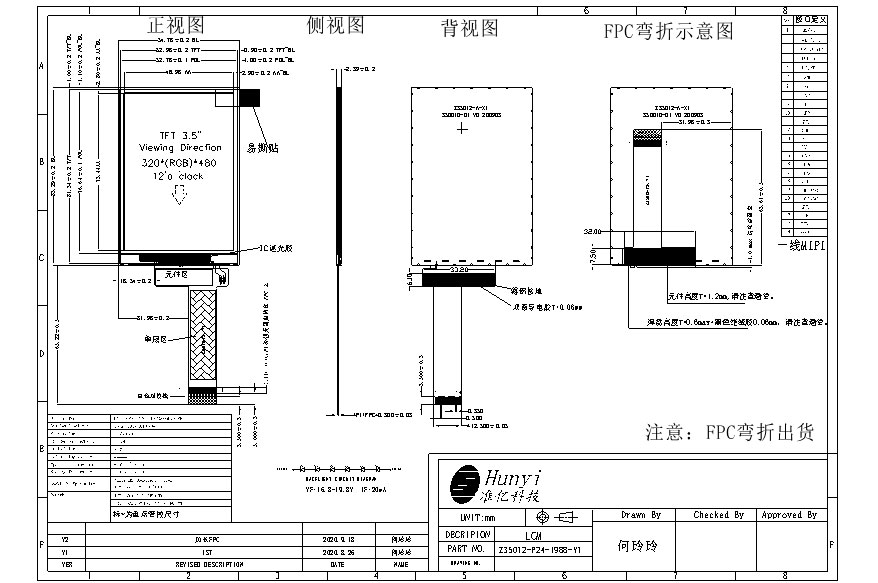

Mechanical Drawing 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller


Mechanical Drawing 3.5 Inch TN TFT LCD Screen 320*480 ILI9488 Controller
