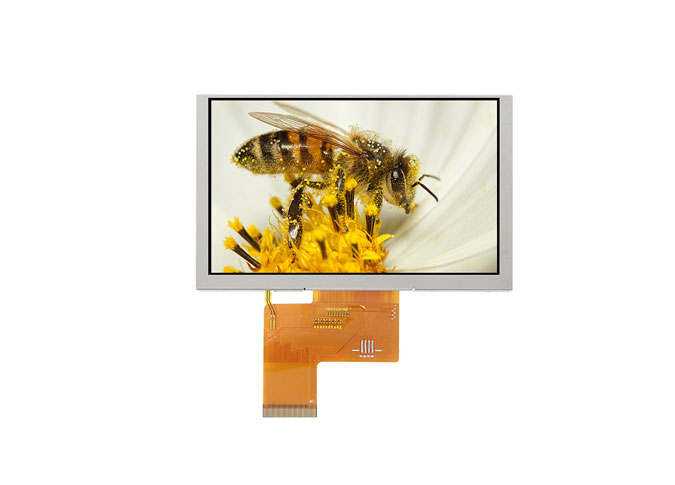

Z70015-P15 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface

  • Size: 7 inch

  • Resolution: 800*480

  • Interface: RGB

  • View Angle: 12 O'clock

  • Brightness: 320 nits

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

tft screen price
tft screen price
buy tft lcd module
tft lcd cost
tft lcd display price

Overview of Z70015-P15 7 inch LCD Display 800*480 Horizontal Screen 300 nits RGB Interface

1

Z70015 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*480 resolution. This a-Si TFT LCD module come with RGB interface, 320cd/m² brightness.12 o'clock view angle.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc, we can provide custom shape LCD for you.

3

As a square LCD screen supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The horizontal 7 inch wholesale TFT LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industry, handheld, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, elevator advertising, etc.

General Specifications 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

800 (H) × RGB × 480 (V)

pixels

3

Pixel Pitch

64.2 (H)× 179 (V)

um

4

LCM Outline Dimension

(Without FPC)

165 (W) × 100 (H) × 5.7 (T)

mm

5

LCD Active Area

154.08 (W) × 85.92 (H)

mm

6

View Direction (Gray Inversion)

12 o'clock

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: TBD

-

12

LCD Contrast Ratio

Typ.: 500 Min: 400

-

13

FPC Version

Z70015-P50 V1

-

14

Interface

RGB

-

15

Operating Temperature

-10°C~ 60°C

-

16

Storage Temperature

-20°C~ 70°C

-

17

Backlight Arrangement

LED/3 Series 6 Parallel (18 lights in total)

-

18

Luminance

Typ.:320

nit

19

Weight

TBD

kg


Interface Definition Description 7 Inch LCD Display 800*480 Horizontal Screen 300 Nits RGB Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3-4

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

5

GND

Ground

6

VCOM

Common Voltage

7

DVDD

POWER SUPPLY

8

MODE

DE/SYNC MODE SELECT

9

DE

DATA INPUT ENABLE

10

VS

Vertical Sync Input

11

HS

Horizontal Sync Input

12-19

B7-B0

Blue DATA

20-27

G7-G0

Green DATA

28-35

R7-R0

Red DATA

36

GND

Ground

37

DCLK

Sample Clock

38

GND

Ground

39

L/R

Left/Right Selection

40

U/D

Up/Down Selection

41

VGH

Gate ON Voltage

42

VGL

Gate OFF Voltage

43

AVDD

Power For Analog Circuit

44

RESET

Global Reset pin

45

NC

No Connection

46

VCOM

Common Voltage

47

DITHB

Dithering Function

48

GND

Ground

49-50

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
