LCD Display Working Principle: How Do LCD Screens Work?
Introduction:
Liquid Crystal Display (LCD) screens have become an integral part of our everyday lives. From smartphones to televisions, digital signage to computer monitors, LCD technology is ubiquitous. But have you ever wondered how these sleek and vibrant displays actually work? In this blog, we will delve into the working principle of LCD screens, exploring the intricate mechanisms that bring images to life. We will explore this fascinating technology from three dimensions: structure and materials, polarization and light manipulation, and pixel control and color reproduction. So, let's embark on a journey to uncover the secrets behind LCD display technology.

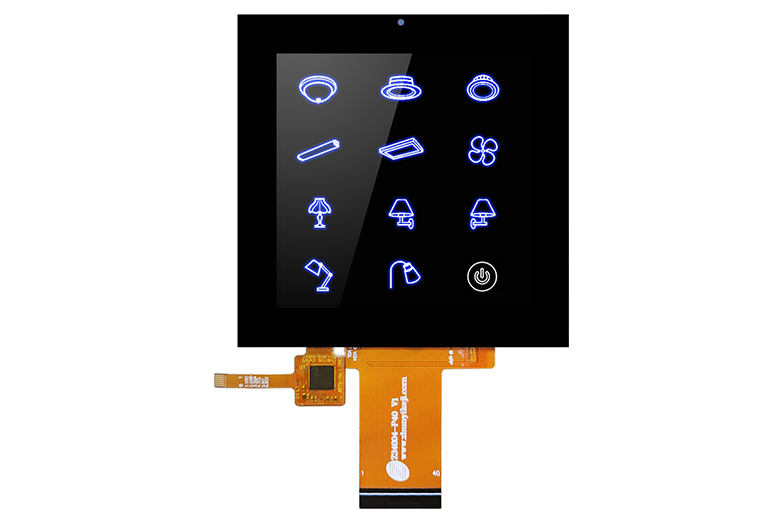

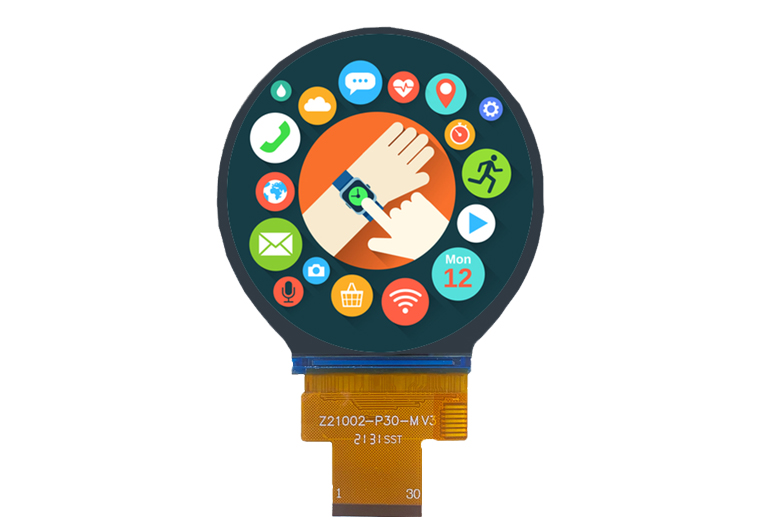

LCD Display Module Materials and Structure
At the heart of an LCD screen lies the LCD module, which consists of several essential components. The key LCD display panel material used in the construction of an LCD module are:
Substrate: The substrate is typically made of glass and acts as a support structure for the display. It provides a sturdy foundation for the other layers and components.
Polarizing Filters: Two polarizing filters are placed on either side of the substrate. These filters only allow light waves vibrating in a specific direction to pass through. The first polarizing filter allows only horizontally vibrating light waves to pass through, while the second filter allows vertically vibrating light waves to pass through.
Liquid Crystals: The liquid crystals are sandwiched between two layers of glass substrate. These liquid crystals have the unique property of being able to align their molecules in response to an electric current. This alignment affects the polarization of light passing through them, thereby controlling the display of pixels.
Color Filters: To produce color images, color filters are placed over each pixel. These filters allow only specific colors, such as red, green, or blue, to pass through. By combining these primary colors, a full spectrum of colors can be achieved.
How Does Liquid Crystal Display Work?
Learn the fascinating workings of Liquid Crystal Displays (LCDs) in our summary guide. Discover how these sleek screens utilize polarization, light manipulation, and pixel control to bring images to life. Explore the color reproduction techniques that make LCDs the backbone of modern visual technology. Unveil the secrets behind their captivating displays and gain a deeper understanding of how LCDs revolutionize our digital experiences.
Polarization and Light Manipulation
LCD screens rely on the manipulation of polarized light to generate images. The process involves three essential components: the backlight, the liquid crystals, and the polarizing filters.
Backlight: At the rear of the LCD module, a backlight is situated, typically composed of cold cathode fluorescent lamps (CCFLs) or Light Emitting Diodes (LEDs). The backlight provides a uniform light source, which passes through the layers to create the initial illumination.
Polarization and Light Modulation: The light emitted from the backlight is initially polarized by the first polarizing filter, allowing only horizontally polarized light waves to pass through. This polarized light then encounters the liquid crystals, which, in their default state, are aligned in a twisted structure that prevents light from passing through the second polarizing filter.
Voltage Application: When an electric current is applied to specific areas of the liquid crystal layer, the molecules align themselves in response, untwisting the liquid crystal structure. This realignment allows the light waves to pass through the second polarizing filter.
Light Blocking: By selectively controlling the voltage applied to each pixel, the liquid crystals can either allow light to pass through or block it entirely. This manipulation of light enables the creation of individual pixels and the formation of the desired image.
Pixel Control and Color Reproduction
Pixel Matrix: The LCD module consists of a grid of tiny cells, known as pixels, arranged in rows and columns. Each pixel represents a unique color combination, and by manipulating the liquid crystals at the pixel level, the display can reproduce images accurately.
Active and Passive Matrix: There are two types of pixel control methods used in LCD screens: active matrix and passive matrix. Active matrix displays use thin-film transistors (TFTs) to control each individual pixel and provide faster and more precise control over the liquid crystals. On the other hand, passive matrix displays use a simpler matrix of conductive traces to control the pixels, but they may suffer from slower response times and limited viewing angles.
Color Reproduction: LCD screens achieve color reproduction by implementing a technique called "color mixing." Each pixel is divided into sub-pixels, typically red, green, and blue (RGB), corresponding to the primary colors of light. By adjusting the intensity of each sub-pixel, a wide range of colors can be created. The color filters mentioned earlier help ensure that only the desired color reaches the viewer's eyes, resulting in accurate color representation.
Color Depth and Gamut: The color depth of an LCD screen refers to the number of distinct colors that can be displayed. It is determined by the number of bits used to represent each primary color per pixel. Common color depths include 8-bit (16.7 million colors) and 10-bit (1.07 billion colors). The color gamut refers to the range of colors that can be reproduced by the display. Advancements in LCD technology have expanded the color gamut, allowing for more vibrant and lifelike images.
LCD display technology has revolutionized the way we interact with digital content. By understanding the LCD display working principle, we can appreciate the intricate mechanisms that enable us to enjoy vibrant visuals and sharp imagery. From the LCD display module material to the manipulation of polarized light and pixel control, each aspect contributes to the creation of a captivating display. As technology continues to advance, we can expect even more impressive LCD screens with enhanced color accuracy, improved response times, and increased resolution, further enhancing our visual experiences. So, the next time you admire the crisp image on your smartphone or marvel at the lifelike colors on your TV, remember the complex workings of the LCD display that make it all possible.
