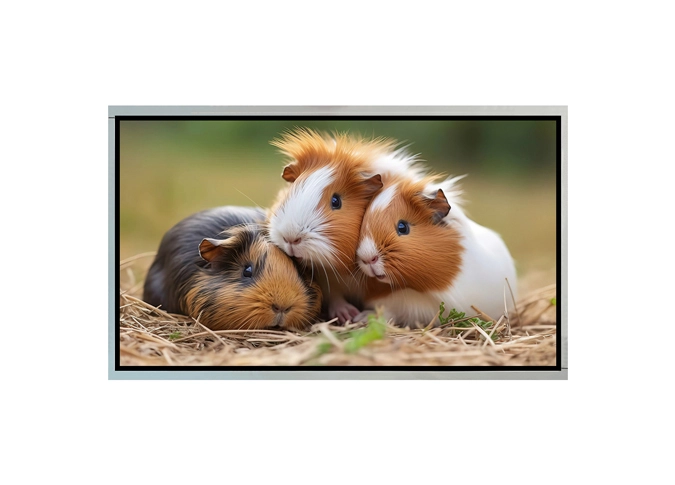

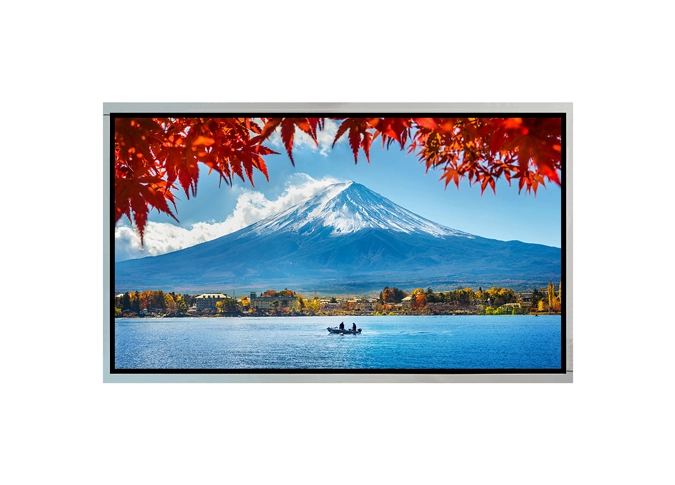

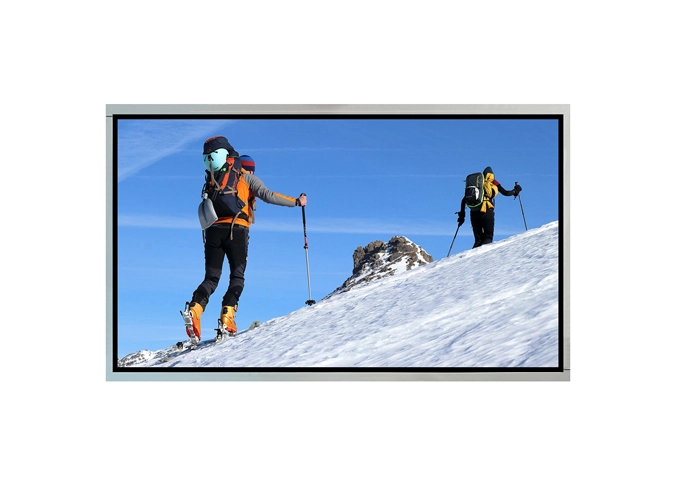

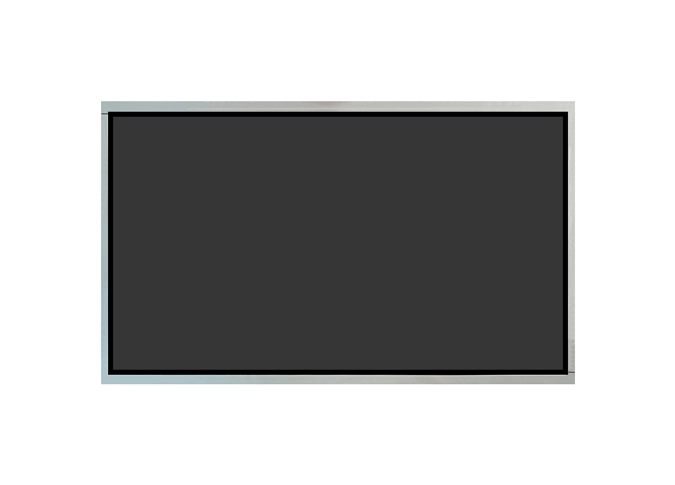

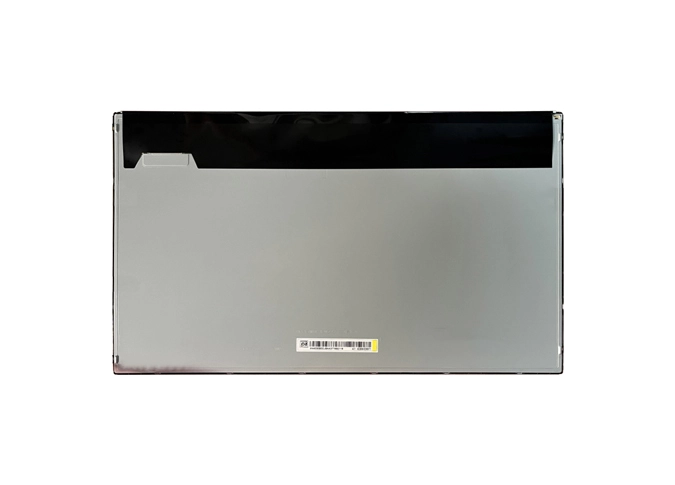

Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD

  • Size:21.5"

  • Resolution:1920*1080

  • Interface:LVDS

  • View Angle:IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

lcd panel tft
lcd panel tft
lcd tft display panel
tft lcd display panel
tft and lcd
tft lcd screen panel

Overview of Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD

1

Z215001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1920*1080 resolution. IPS(In-plane Switching) technique make this 21.5" LCD module have a wider view angle.This a-Si TFT LCD come with LVDS interface.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

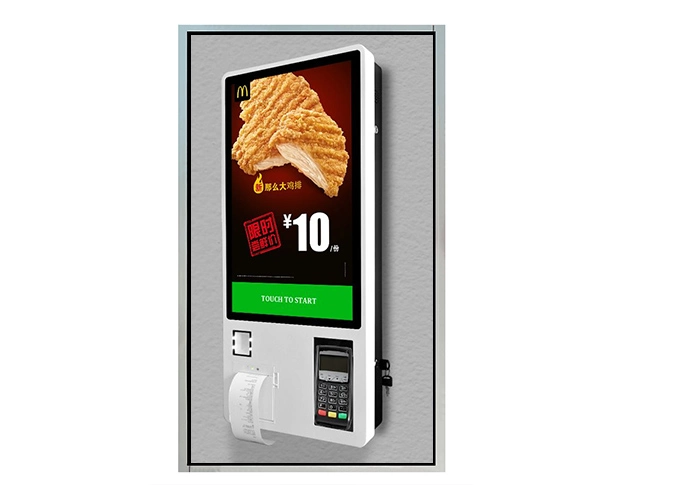

The 21.5" LCD screen is widely used on computer, moinitor, laptop,industrial, commerical device, supermarket,monitor,tablet,QR code,smart home, retail kiosks, consumer electronics, Advertising, Vending, Education, aviation and aerospace,notice ect.

General Specifications Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD


Parameter

Specification

Unit

Remarks

Active area

476.064(H) × 267.786(V)

mm


Number of pixels

1920(H) ×1080(V)

pixels


Pixel pitch

0.24795(H) x 0.24795(V)

mm


Pixel arrangement

RGB Vertical stripe

-


Display colors

16.7M

colors


Display mode

Normally Black

-


Dimensional outline

495.6(H) × 292.2(V) × 10.7(D) typ.

mm

Detail refer to drawing

Weight

1.97

Kg


Bezel width (L/R/U/D)

7.9/7.9/10.5/10.5

mm


Surface Treatment

Anti-glare, 3H

-


Back-light

Lower side 1-LED Light bar Type

-




Pin Definition Description Z215001 21.5 Inch Monitor Screen 1920x1080 LVDS Interface High Speed TFT LCD


Pin No

Symbol

Function

Remark

1

RXO0-

Negative Transmission data of Pixel 0 (ODD)


2

RXO0+

Positive Transmission data of Pixel 0 (ODD)


3

RXO1-

Negative Transmission data of Pixel 1 (ODD)


4

RXO1+

Positive Transmission data of Pixel 1 (ODD)


5

RXO2-

Negative Transmission data of Pixel 2 (ODD)


6

RXO2+

Positive Transmission data of Pixel 2 (ODD)


7

BIST

Bist function

Note1

8

RXOC-

Negative Transmission Clock (ODD)


9

RXOC+

Positive Transmission Clock (ODD)


10

RXO3-

Negative Transmission data of Pixel 3 (ODD)


11

RXO3+

Positive Transmission data of Pixel 3 (ODD)


12

RXE0-

Negative Transmission data of Pixel 0 (EVEN)


13

RXE0+

Positive Transmission data of Pixel 0 (EVEN)


14

GND

Power Ground


15

RXE1-

Negative Transmission data of Pixel 1 (EVEN)


16

RXE1+

Positive Transmission data of Pixel 1 (EVEN)


17

GND

Power Ground


18

RXE2-

Negative Transmission data of Pixel 2 (EVEN)


19

RXE2+

Positive Transmission data of Pixel 2 (EVEN)


20

RXEC-

Negative Transmission Clock (EVEN)


21

RXEC+

Positive Transmission Clock (EVEN)


22

RXE3-

Negative Transmission data of Pixel 3 (EVEN)


23

RXE3+

Positive Transmission data of Pixel 3 (EVEN)


24

GND

Power Ground

Note 2

25

CTL

*Reserved for LCD manufacturer’s(CTL_DVR)


26

CE

*Reserved for LCD manufacturer’s(CE_DVR)


27

NC



28

VDD


Power Supply: +5V


29

VDD


30

VDD
