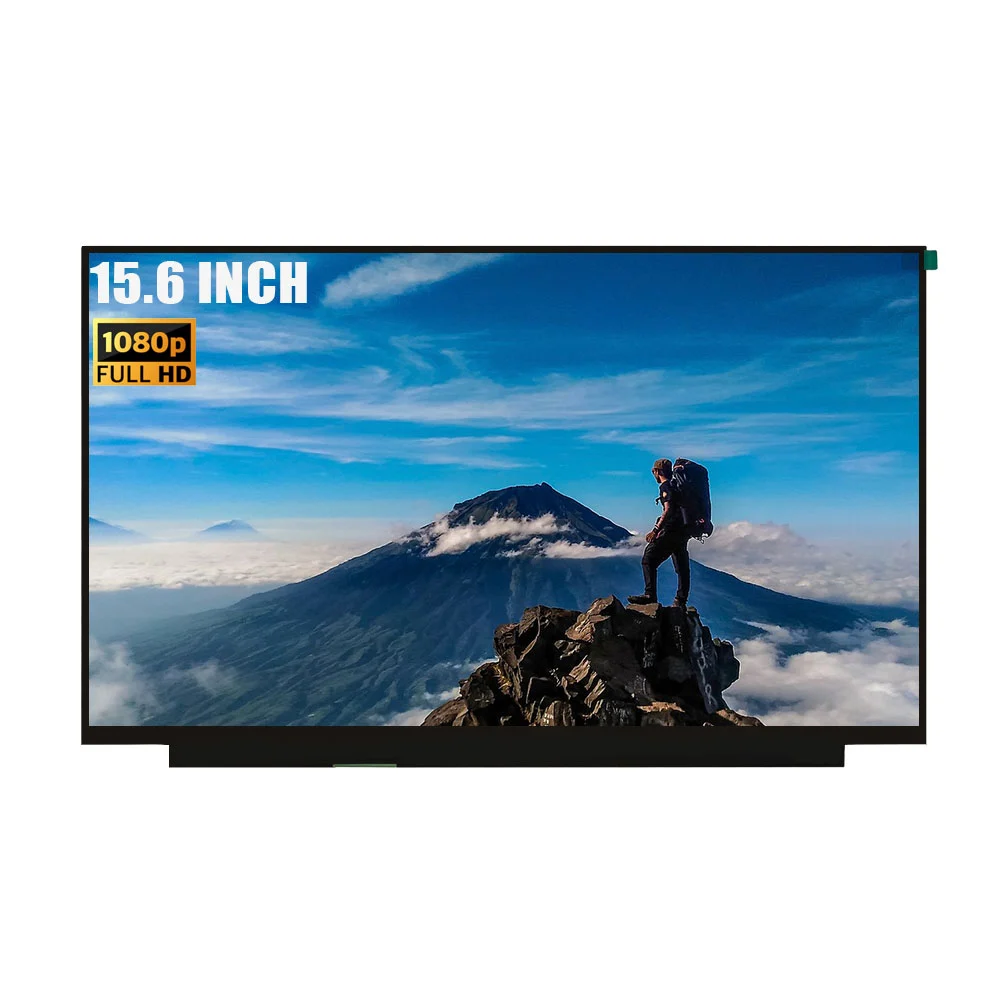

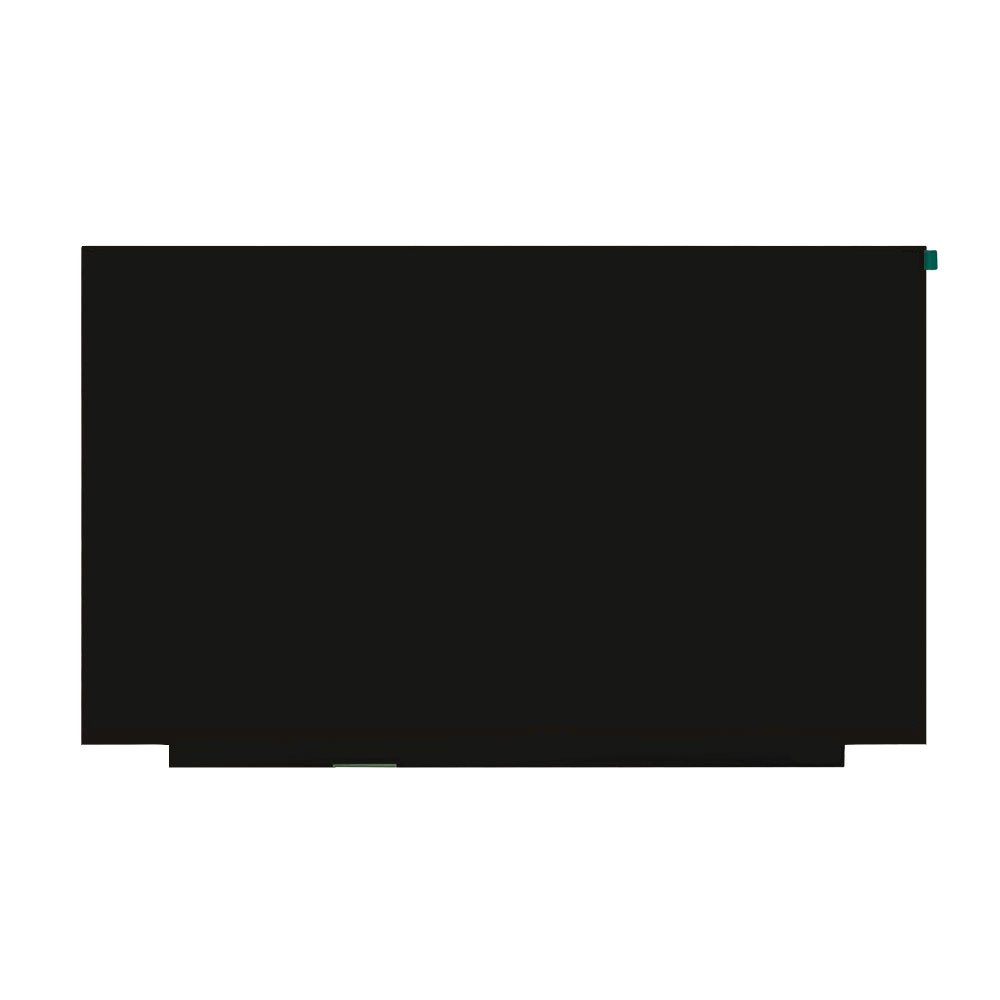

Z156003 FHD 15.6 Inch 1920x1080 LCD Display EDP Interface With Metal Frame

  • Size:15.6"

  • Resolution:1920*1080

  • Interface:edp

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

tn display vs ips display
tn display vs ips display
tn lcd vs ips lcd
tn or ips
tn or ips which is better
tn panel vs ips

Overview of Z156003 FHD 15.6 Inch 1920x1080 LCD Display EDP Interface With Metal Frame

1

Z156003 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1920*1080 resolution. IPS(In-plane Switching) technique make this 15.6" LCD module have a wider view angle.This a-Si TFT LCD come with edp interface.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

15.6 inch LCD screen is widely used on computer, moinitor, laptop,commerical device, supermarket,monitor,tablet,QR code,smart home, retail kiosks, consumer electronics, Advertising, Vending, Education, aviation and aerospace, ect.

General Specifications Z156003 FHD 15.6 Inch 1920x1080 LCD Display EDP Interface With Metal Frame

Parameter

Specification

Unit

Remarks

Active area

344.23 (H) ×193.54 (V)

mm


Number of pixels

1920 (H) ×1080 (V)

pixels


Pixel pitch

0.17925 (H) X 0.17925 (V)

mm


Pixel arrangement

RGB Vertical stripe



Display colors

6bit+FRC

colors


Display mode

Normally Black



Dimensional outline

359.50(H)*206.5(V) (W)*3.2(Max)

359.50(H)*223.8(V) (W/PCB)*3.2(Max)

mm


Weight

360 (max)

g


Surface treatment

Fine Anti-Glare



Back-light

Lower Down side, 1-LED Lighting Bar type


Note 1

Power consumption

PD : 0.88 (max)

W

@mosaic

PBL :2.85(max)

W


Ptotal :3.97(max)

W

@mosaic


Pin Defintion Z156003 FHD 15.6 Inch 1920x1080 LCD Display EDP Interface With Metal Frame

Terminal

Symbol

Functions

Pin No.

Symbol

Description

1

NC

No Connection

2

H_GND

Ground

3

LANE1_N

eDP RX channel 1 negative

4

LANE1_P

eDP RX channel 1 positive

5

H_GND

Ground

6

LANE0_N

eDP RX channel 0 negative

7

LANE0_P

eDP RX channel 0 positive

8

H_GND

Ground

9

AUX_CH_P

eDP AUX CH positive

10

AUX_CH_N

eDP AUX CH negative

11

H_GND

Ground

12

LCD_VCC

Power Supply, 3.3V (typ.)

13

LCD_VCC

Power Supply, 3.3V (typ.)

14

LCD_Self_Test

Panel self test enable

15

H_GND

Ground

16

H_GND

Ground

17

HPD

Hot plug detect output

18

BL_GND

LED Ground

19

BL_GND

LED Ground

20

BL_GND

LED Ground

21

BL_GND

LED Ground

22

BL_ENABLE

LED enable pin(+3.3V Input)

23

BL_PWM

System PWM Signal Input

24

NC

No Connection

25

NC

No Connection

26

BL_POWER

LED Power Supply 5V-21V

27

BL_POWER

LED Power Supply 5V-21V

28

BL_POWER

LED Power Supply 5V-21V

29

BL_POWER

LED Power Supply 5V-21V

30

NC

No Connection
