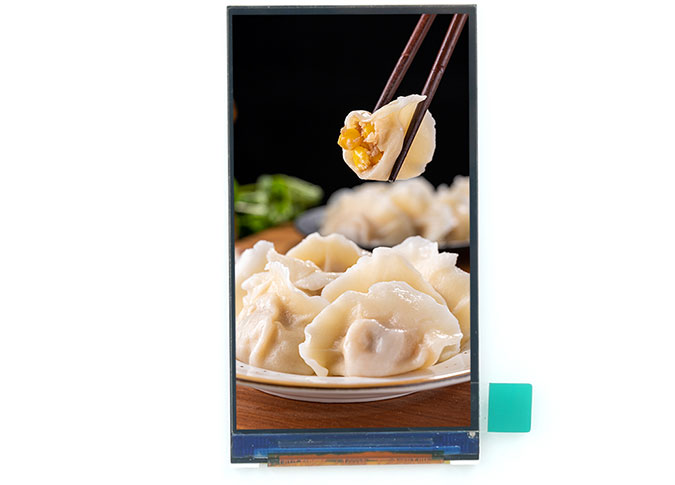

Z30082 3 Inch TFT Display 480*854 24PIN MIPI Interface JD9161Z Driver

  • Size: 3 inch

  • Resolution: 480*854

  • Interface: MIPI

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

tft display in china
tft display in china
tft display panel manufacturer
tft display manufacturers china
tft display manufacturer
tft display supplier
tft lcd china
tft lcd display factory
tft lcd display manufacturer
tft lcd company

Overview of Z30082 3 Inch TFT Display 480*854 24PIN MIPI Interface JD9161Z Driver

1

Z30082 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*854 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This handheld LCD screen is built-in JD9161Z driver IC. This a-Si TFT LCD module come with MIPI interface, 500 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a custom LCD display supplier, we can also customize for you.

3

As one of the leading LCD display module factories, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3 inch LCD screen is medical, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, music player, smart home, industry, etc.

Specifications of 3 Inch TFT Display 480*854 24PIN MIPI Interface JD9161Z Driver


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V)

pixels

3

Pixel Pitch

26 (H) × 78 (V)

um

4

LCM Outline Dimension

(Without FPC)

40.64 (W) × 74.68 (H) ×1.74 (T)

mm

5

LCD Outline Dimension

40.33 (W) × 72.86 (H) × 0.4 (T)

mm

6

LCD Active Area

37.44 (W) × 66.61 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9161Z-JN

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.5% Min: 3.1%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 800

-

14

FPC Version

Z30082-CN2 V3

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

510

nit

20

Weight

0.010

kg

Interface Definition Description of 3 Inch TFT Display 480*854 24PIN MIPI Interface JD9161Z Driver


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

TDP1

Positive MIPI differential data input

5

TDN1

Negative MIPI differential data input

6

GND

Ground

7

TCP

Positive MIPI differential CLOCK input

8

TCN

Negative MIPI differential CLOCK input

9

GND

Ground

10

TDP0

Positive MIPI differential data input

11

TDN0

Negative MIPI differential data input

12

GND

Ground

13

TDN2

Positive MIPI differential data input

14

TDP2

Negative MIPI differential data input

15

GND

Ground

16

TDN3

Positive MIPI differential data input

17

TDP3

Negative MIPI differential data input

18

GND

Ground

19

RST

LCM RESET PIN

20

TE

Tearing Effect PIN

21

GND

Ground

22

1V8

I/O POWER SUPPLY (1.8V)

23

VCC

POWER SUPPLY (3.3V/3V/2.8V)

24

NC

No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
