LCD Viewing Angle Explained: TN vs VA vs IPS and How to Choose the Right Display for Industrial Applications

Introduction

In industrial display systems such as CNC machine interfaces, automation control panels, medical monitoring systems, and outdoor information terminals, display readability is not only determined by resolution or brightness. One often underestimated factor is viewing angle performance.

Unlike consumer devices, industrial operators rarely view screens from a fixed, perfectly centered position. In real production environments, screens are mounted on machines, tilted for ergonomics, or shared among multiple operators. This means the display must maintain consistent contrast, brightness, and color even when viewed from extreme angles.

A poor viewing angle can lead to misinterpretation of machine status, delayed reactions, or incorrect operational inputs in CNC systems.

According to the International Electrotechnical Commission, optical performance consistency across viewing angles is a critical parameter in evaluating display usability in professional environments.

For industrial-grade systems, selecting the correct panel technology is therefore not just a visual decision—it is an operational reliability requirement.

What Is Viewing Angle in LCD Technology?

Viewing angle refers to the maximum angle at which a display can be viewed while still maintaining acceptable image quality, typically defined by contrast ratio degradation or color shift thresholds.

A commonly used engineering standard defines viewing angle as the point where contrast ratio drops below 10:1.

However, in real-world applications, subjective perception—such as color accuracy and grayscale stability—is often more important than numerical thresholds alone.

Why Viewing Angle Behavior Changes Across LCD Technologies

LCD panels do not behave uniformly when viewed from different angles because of how liquid crystal molecules align under electrical fields.

Different LCD architectures control this alignment differently, resulting in distinct optical characteristics.

TN vs VA vs IPS – Engineering-Level Comparison

Core Panel Technologies

Modern industrial systems increasingly rely on IPS technology due to its stable color reproduction across wide viewing angles, especially in multi-operator environments.

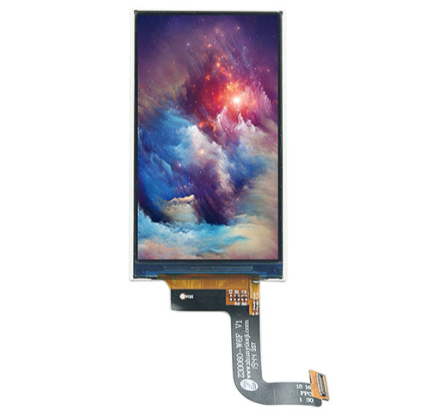

For example, a Square IPS LCD screen is commonly used in CNC interfaces where operators may view the screen from standing, seated, or lateral positions.

How Viewing Angle Impacts Industrial Applications

CNC Machine Interfaces

In CNC environments, operators often stand at different positions relative to the machine. A screen mounted on a control panel may be viewed:

• From above during programming

• From the side during operation

• At oblique angles during maintenance

If the display uses TN technology, grayscale inversion or contrast loss may occur at steep angles, increasing the risk of misreading machine parameters.

Industrial Automation Systems

Automation systems often use multiple displays in shared control rooms. In these environments, consistent color and contrast across viewing angles ensures:

• Uniform interpretation of alerts

• Reduced operator confusion

• Faster response times

Outdoor and Semi-Outdoor Displays

In retail or transportation environments, viewers move continuously. A display must maintain visibility across a wide range of angles without significant color distortion or brightness drop.

Engineering Factors That Influence Viewing Angle Performance

Viewing angle is not determined only by panel type. Several system-level factors also affect optical performance.

1. Optical Film Structure

Anti-glare, diffusion, and polarizing films can slightly reduce maximum contrast at extreme angles while improving readability in bright environments.

2. Backlight Architecture

Edge-lit and direct-lit systems behave differently under oblique viewing conditions due to light distribution uniformity.

3. Bonding Technology

Full lamination reduces internal reflection layers, significantly improving off-axis clarity.

4. Driving IC Gamma Correction

Proper gamma tuning compensates for grayscale distortion at different angles.

Application-Based Selection Guide

Choosing the correct LCD type depends on usage environment rather than specification alone.

Industrial Selection Matrix

In many industrial projects, suppliers such as a round LCD display factory or square LCD module supplier provide multiple panel types to match mechanical design constraints.

Real-World Viewing Angle Testing Methods

Industrial manufacturers do not rely only on datasheets. Practical evaluation is required.

Standard Evaluation Methods

• Multi-angle camera capture (0°, 30°, 60°, 80°)

• Contrast ratio measurement at oblique angles

• Color shift ΔE analysis

• Human visual inspection under controlled lighting

These tests are especially important for high-precision systems where even small visual distortion can affect operational accuracy.

Why IPS Has Become the Industrial Standard

IPS (In-Plane Switching) technology has become dominant in industrial systems due to its ability to maintain consistent liquid crystal alignment regardless of viewing direction. Key advantages include:

• Minimal color inversion

• Stable grayscale reproduction

• High suitability for multi-user environments

• Predictable optical performance

This is why many modern CNC interfaces now rely on IPS-based modules such as a Square IPS LCD display for operational consistency.

Common Misconceptions About Viewing Angle

Understanding these nuances is critical in industrial procurement decisions.

Viewing Angle vs Brightness – A Common Design Conflict

In industrial design, engineers often balance viewing angle with brightness and power consumption.

• High brightness improves outdoor readability

• Wide viewing angle improves multi-user usability

• Both together increase cost and power demand

This is why system-level design decisions are more important than panel specification alone.

Conclusion

Viewing angle is a critical but often underestimated parameter in industrial LCD selection. TN, VA, and IPS technologies each serve different engineering purposes, and the correct choice depends on application context rather than specification sheets alone.

For CNC systems, automation equipment, and shared industrial interfaces, IPS-based solutions provide the most reliable optical performance across variable viewing positions, ensuring consistent readability and operational safety.

FAQ

1. What is a good viewing angle for industrial LCDs?

IPS panels with 178° viewing angles are generally preferred for industrial applications.

2. Why does color shift happen at angles?

It is caused by changes in liquid crystal alignment under different viewing directions.

3. Is TN suitable for CNC machines?

Only for fixed-position viewing; IPS is preferred for multi-angle operation.

4. Does higher resolution improve viewing angle?

No. Viewing angle depends on panel structure, not pixel density.

5. What is the most balanced LCD type?

VA panels offer a balance between cost, contrast, and viewing angle.
