Z13002 1.3 Inch 240*240 Square LCD Screen MCU Interface

  • Size: 1.3 inch

  • Resolution: 240*240

  • Driver IC: ST7789V

  • Interface: 4-SPI

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

lcd 240 240
lcd 240 240
lcd square
tft 240 240
240 240 display
1 3 inch lcd
1 3 inch tft display
1 3 inch tft
1 3 tft lcd

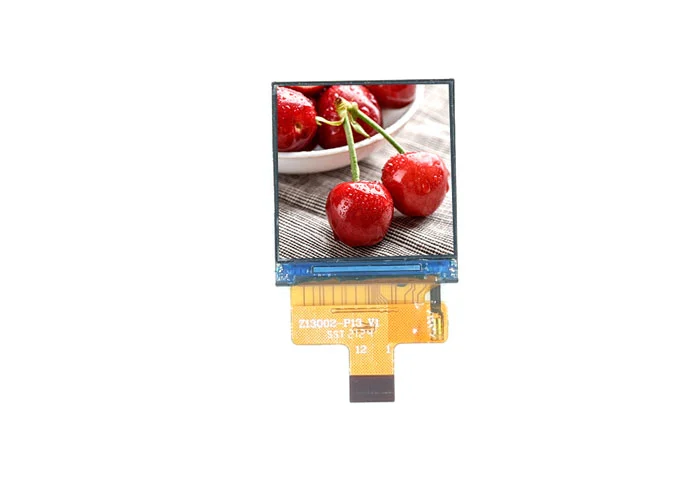

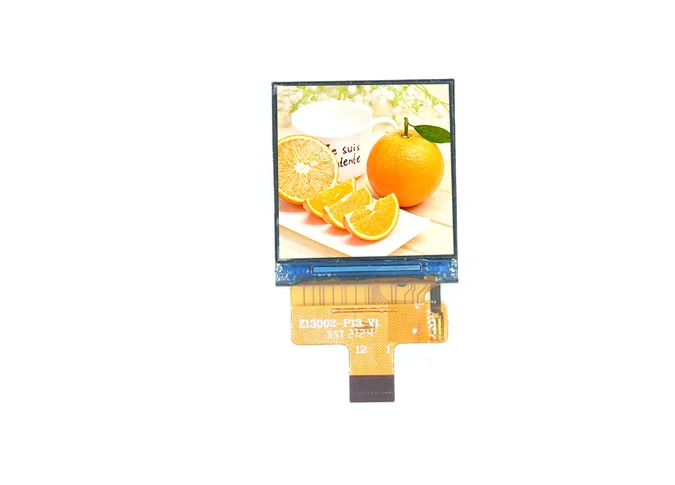

Overview of Z13002 1.3 Inch 240*240 Square LCD Screen MCU Interface

1

Z13002 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240x240 resolution. IPS (In-plane Switching) technique make this 1.3" LCD module have a wider view angle. This Square TFT Screen is built-in ST7789V driver IC. This a-Si TFT LCD come with 4-wire SPI interface, 500 cd/m² brightness.

2

If you have special requirement, like drive IC, interface, FPC, touch panel, backlight, etc, as a custom LCD display supplier, we can also customize for you.

3

Our display module factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 1.3 inch Square TFT LCD screen is widely used smart watch, bracelet, medical oximeter, cosmetic instrument, household appliance, translator, message device, etc.

General Specifications 1.3 Inch Square LCD Display QVGA 240*240 SPI Interface ST7789V Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.3

inch

2

Display Resolution

240 (H) × RGB × 240 (V)

pixels

3

Pixel Pitch

97.5 (H) × 97.5 (V)

um

4

LCM Outline Dimension

(Without FPC)

26.17 (W) × 29.22 (H) × 1.5 (T)

mm

5

LCD Outline Dimension

25.8 (W) × 28.4 (H) × 0.4 (T)

mm

6

LCD Active Area

23.4 (W) × 23.4 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7789V2-G4-A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.65% Min: 4.18%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z13002-P13 V1

-

15

Interface

SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/1 Series 2 Parallel (2 lights in total)

-

19

Luminance

520

nit

20

Weight

0.003

kg

Interface Definition Description 1.3 Inch Square LCD Display QVGA 240*240 SPI Interface ST7789V Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

4

VDD

POWER SUPPLY (2.8V/3.3V)

5-6

GND

Ground

7

D/C

LCM Display data/command selection pin in parallel interface

8

CS

LCM SPI Chip Select PIN

9

SCL

LCM SPI clock (SCL) clock (SCLK)

10

SDA

LCM SPI data (SDA) data input (MOSI)

11

RESET

LCM RESET PIN

12

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
