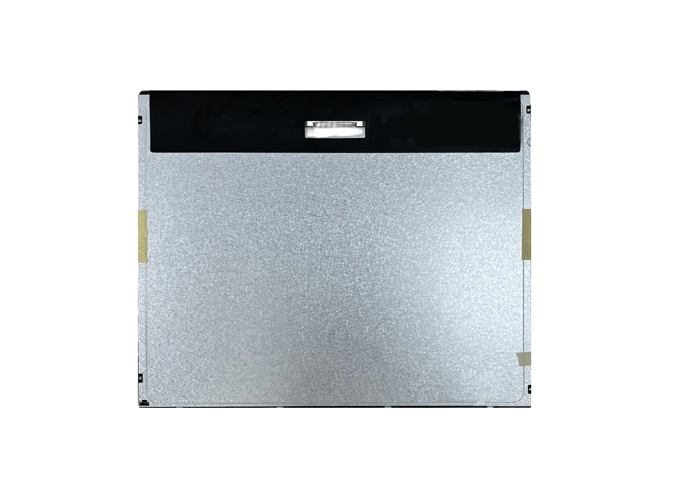

Z170001 17 Inch TFT LCD Sreen 1280x1024 Normal White Display Mode

  • Size:17"

  • Resolution:1280*1024

  • Interface:LVDS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH


tn versus ips
tn versus ips
tn vs ips
tn vs ips which is better
which is better tn or ips
difference between ips and tn display

Overview of Z170001 17 Inch TFT LCD Sreen 1280x1024 Normal White Display Mode

1

Z170001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 800*800 resolution.This a-Si TFT LCD come with LVDS interface.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 17" LCD screen is widely used on computer, moinitor, laptop,commerical device, supermarket,monitor,tablet,QR code,smart home, retail kiosks, consumer electronics, Advertising, Vending, Education, aviation and aerospace, ect.

General Specifications Z170001 17 Inch TFT LCD Sreen 1280x1024 Normal White Display Mode


ITEMS

Unit

SPECIFICATIONS

Screen Dingonal

[mm]

432(17”)

Active Area

[mm]

337.92×270.34

Pixels H x V

-

1280 x 3(RGB)×1024

Pixels Pitch

[um]

0.264(per one triad) × 0.264

Pixels Arrangement

-

R.G.B. Vertical Stripe

Display Mode

-

Normally White

White Luminance(Center)

[cd/m²]

250(Typ.)

Contrast Ratio

-

1000 (Typ.)

Response Time

[msec]

5 (Typ.)(Tr/Td)

Viewing Angle

[degree]

85/85/80/80

Outline Dimension

[mm]

358.5(H) x 296.5(V) x 10.3(D) (Typ.)

Electrical Interface

-

Dual Channel LVDS

Support Color


16.7M colors

Surface Treatment


Anti ‐glare type, Hardness 3H

Temperature            Range

Operating

Storage(Shipping)



0 to +50℃

-20 to +60℃



Interface Definition Description Z170001 17 Inch TFT LCD Sreen 1280x1024 Normal White Display Mode


PIN#

SIGNAL NAME

DESCRIPTION

1

RxOIN0-

Negative LDVS differential data input (Odd data)

2

RxOIN0+

Positive LDVS differential data input (Odd data)

3

RxOIN1-

Negative LDVS differential data input (Odd data)

4

RxOIN1+

Positive LDVS differential data input (Odd data)

5

RxOIN2-

Negative LDVS differential data input (Odd data)

6

RxOIN2-

Positive LDVS differential data input  (Odd data)

7

GND

Power Ground

8

RxOCLKIN-

Negative LDVS differential data input (Odd clock)

9

RxOCLKIN+

Positive LDVS differential data input (Odd clock)

10

RxOIN3-

Negative LDVS differential data input (Odd data)

11

RxOIN3+

Positive LDVS differential data input (Odd data)

12

RxEIN0-

Negative LDVS differential data input (Even data)

13

RxEIN0+

Positive LDVS differential data input (Even data)

14

GND

Power Ground

15

RxEIN1-

Negative LDVS differential data input (Even data)

16

RxEIN1+

Positive LDVS differential data input (Even data)

17

GND

Power Ground

18

RxEIN2-

Negative LDVS differential data input (Even data)

19

RxEIN2+

Positive LDVS differential data input (Even data)

20

RXECLKIN-

Negative LDVS differential data input (Even clock)

21

RXECLKIN+

Positive LDVS differential data input (Even clock)

22

RxEIN3-

Negative LDVS differential data input (Even data)

23

RxEIN3+

Positive LDVS differential data input (Even data)

24

GND

Power Ground

25

NC

No connection (for AUO test only.Do not)

26

NC

No connection (for AUO test only.Do not)

27

NC

No connection (for AUO test only.Do not)

28

VDD

Power Supply Input Voltage

29

VDD

Power Supply Input Voltage

30

VDD

Power Supply Input Voltage
