Z16001 1.6 Inch Round LCD Display 400*400 SPI Interface ST7797 Controller

  • Size: 1.6 inch

  • Resolution: 400*400

  • Interface: SPI

  • View Angle: IPS

  • Driver IC: ST7797

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

round screen
round screen
round display screen
round display module

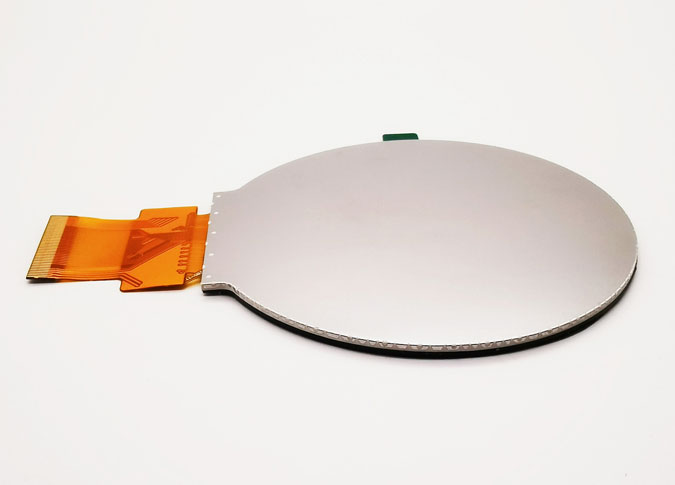

display round

Overview of Z16001 1.6 Inch Round LCD Display 400*400 SPI Interface ST7797 Controller

1

Z16001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 400*400 resolution. IPS (In-plane Switching) technique make this 1.6" LCD module have a wider view angle. This round TFT LCD panel is built-in ST7797 driver IC. This a-Si TFT LCD module come with SPI interface, 350 cd/m² brightness.

2

If you have special requirement, like drive IC interface, FPC, touch panel, backlight etc, as a professional custom LCD screen manufacturer we can also customize for you.

3

Our round LCD display factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 1.6 inch round LCD screen is widely used in smart watch, clock, electric bike navigation, vehicle dashboard, smart home appliance, handheld device, industry, advertising, robot, sweeper, scale etc.

General Specifications 1.6 Inch Round LCD Display 400*400 SPI Interface ST7797 Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

1.6

inch

2

Display Resolution

400 (H) × RGB × 400 (V)

pixels

3

Pixel Pitch

99.6 (H) × 99.6 (V)

um

4

LCM Outline Dimension

(Without FPC)

42.9 (W) × 45.89 (H) × 1.60 (T)

mm

5

LCD Active Area

39.84 (W) × 39.84 (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7797

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

/

-

13

FPC Version

Z16001-T V1

-

14

Interface

SPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

18

Luminance

/

nit

19

Weight

/

kg


Interface Definition Description 1.6 Inch Round LCD Display 400*400 SPI Interface ST7797 Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

GND

Ground

2

VDDA

POWER SUPPLY

3-6

NC

No Connection

7

VPP

OTP Voltage

8

GND

Ground

9

RESET

LCM RESET PIN

10-11

GND

Ground

12

VDDIO

I/O POWER SUPPLY

13

CS

LCM SPI Chip Select PIN

14

SCKP

LCM SPI clock (SCL) clock (SCLK)

15

QSPI_SD0

LCM SPI SDA0

16

QSPI_SD1

LCM SPI SDA1

17

QSPI_SD2

LCM SPI SDA2

18

QSPI_SD3

LCM SPI SDA3

19

GND

Ground

20

TE

Tearing Effect PIN

21

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

22

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

23-24

GND

Ground

RESET voltage should be consistent with VDDIO voltage, or there probably is black screen fault when power on.
