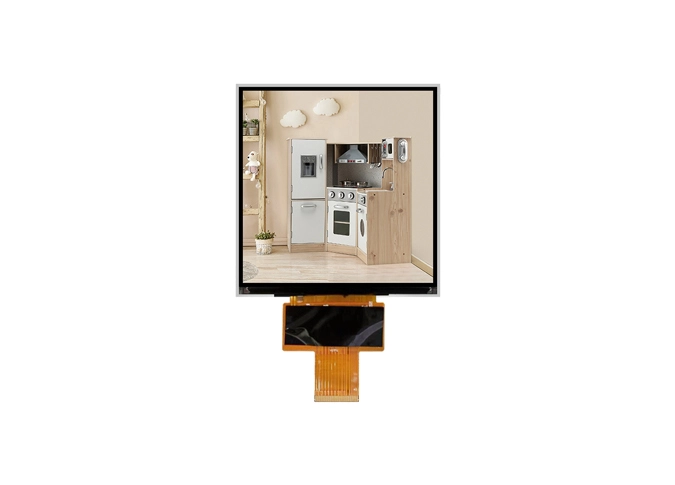

Z50075 High Luminance 1000nits 5 Inch 600x600 Square LCD Panel MIPI Interface

  • Size: 5 inch

  • Resolution: 600x600

  • LCD Interface: MIPI

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH


square ips display
square ips display
square ips lcd display
square ips lcd screen
square ips lcd panel
square ips lcd module

Overview of Z50075 High Luminance 1000nits 5 Inch 600x600 Square LCD Panel MIPI Interface

1

Z50075 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 600x600 resolution. IPS(In-plane Switching) technique make this 5" LCD module have a wider view angle.This a-Si TFT LCD come with MIPI interface.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can customize for you.

3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification.

4

The 5" square screen panel is widely used on Gaming, digital camera, smartwatch, pinter, car, projector, Medical equipment, Robotics, ATM, Thermostats, AI, commerical, consumer etc.

General Specifications Z50075 High Luminance 1000nits 5 Inch 600x600 Square LCD Panel MIPI Interface


Item

Specification

Unit

LCD Size

4.97

inch

Number of Pixels

600 (H) RGB x 600 (V)

pixels

Display Mode

Normally Black

-

Viewing Direction

Free

o ’ clock

Interface

MIPI

-

Display Colors

16.7M

colors

Outline Dimension

95.08 (H) x 99.50 (V) x 2.70 (D)

mm

Active Area

89.28 (H) x 89.28 (V)

mm

Pixel Pitch

0. 1488 (H) x 0. 1488 (V)

mm

Driver IC

OTA7290B

-

Operation Temperature

-20~70

Storage Temperature

-30~80



Lcm Pin Definition Z50075 High Luminance 1000nits 5 Inch 600x600 Square LCD Panel MIPI Interface


No.

Symbol

Description

1

NC

No connection

2

VDD

Power supply

3

NC

No connection

4

GND

Ground

5

RESET

Global reset pin

6

NC

No connection

7

GND

Ground

8

MIPI_0N

MIPI Negative data signal(-)

9

MIPI_0P

MIPI Positive data signal(+ )

10

GND

Ground

11

MIPI_1N

MIPI Negative data signal(-)

12

MIPI_1P

MIPI Positive data signal(+ )

13

GND

Ground

14

MIPI_CKN

MIPI Negative clock signal(-)

15

MIPI_CKP

MIPI Positive clock signal(+)

16

GND

Ground

17

MIPI_2N

MIPI Negative data signal(-)

18

MIPI_2P

MIPI Positive data signal(+ )

19

GND

Ground

20

MIPI_3N

MIPI Negative data signal(-)

21

MIPI_3P

MIPI Positive data signal(+ )

22

GND

Ground

23-24

NC

No connection

25

GND

Ground

26

ID

LCM_ID

27

NC

No connection

28

GND

Ground

29-30

LED-

Power for LED backlight (Cathode)

31

NC

No connection

32-33

LED+

Power for LED backlight (Anode)

34

TP_SCL(NC)

No connection

35

TP_SDA(NC)

No connection

36

TP_INT(NC)

No connection

37

TP_RST(NC)

No connection

38

TP_VCC(NC)

No connection

39

TP_GND(NC)

No connection

40

GND

Ground
