Z43018 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC

  • Size: 4.3 inch

  • Resolution: 480*272

  • Active Area: 95.04*53.86 mm

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 500 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

tft lcd module
tft lcd module
display lcd tft
display tft lcd
tft lcd display
tft lcd display module
lcd display panel material
tft lcd screen
tft lcd panel

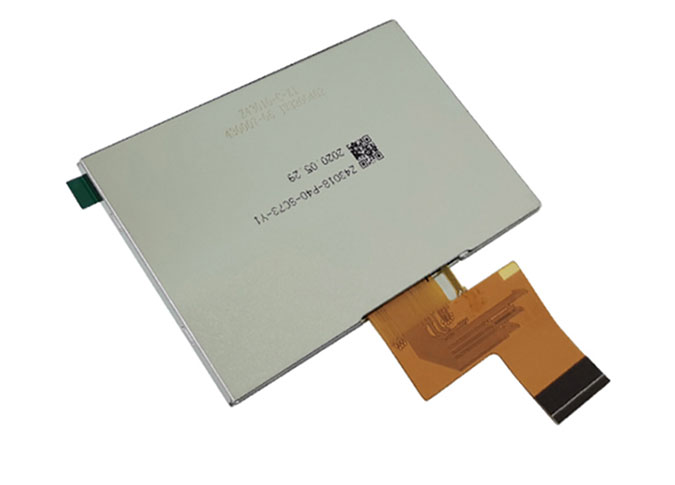

Overview of Z43018 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC

1

Z43018 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 480*272 resolution. IPS (In-plane Switching) technique make this 4.3" LCD module have a wider view angle. This LCD square TFT  display is built-in SC7283-G4 driver IC. This a-Si TFT LCD module come with RGB interface, 500 cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a custom LCD manufacturer, we can also customize for you.

3

As a square LCD panel manufacturer, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 4.3 inch Horizontal LCD screen is widely used in visual doorbell, E-wallet, POS, game player, cosmetic instrument, household appliance, QRcode scanner, smart home, industry handheld, outdoor, HMI, E-bike, electric vehicle, dashboard, speedometer, etc.

Specifications of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


No.

Item

Specification

Unit

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

480 (H) × RGB × 272 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

LCM Outline Dimension

(Without FPC)

105.46 (W) × 67.16 (H) ×2.75 (T)

mm

5

LCD Outline Dimension

100.16 (W) × 61.86 (H) × 0.8 (T)

mm

6

LCD Active Area

95.04 (W) × 53.86 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

SC7283-G4

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.9% Min: 6.2%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z43016-P40 V3

-

15

Interface

RGB

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/5 Series 2 Parallel (10 lights in total)

-

19

Luminance

TBD

nit

20

Weight

TBD

kg


Interface Definition Description of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

3

GND

Ground

4

VDD

POWER SUPPLY (2.8V/3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable signal in RGB I/F DE mode.

35

NC

No Connection

36

GND

Ground

37

XR/NC

XR PIN/No Connection

38

YD/NC

YD PIN/No Connection

39

XL/NC

XL PIN/No Connection

40

YU/NC

YU PIN/No Connection

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC


Mechanical Drawing of 4.3 Inch IPS LCD Display 480*272 40PIN RGN Interface SC7283 Driver IC
