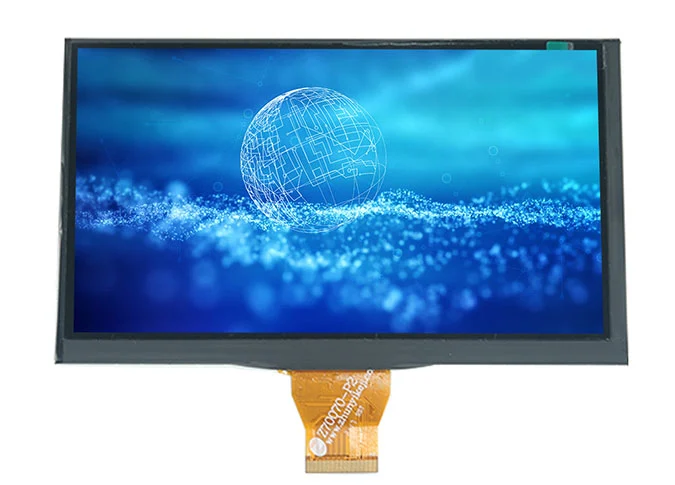

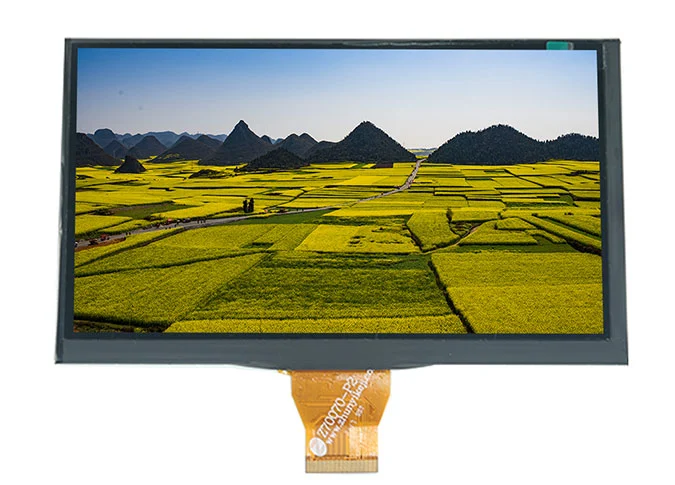

Z70069 High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA

  • Size: 7 inch

  • Resolution: 1024*600

  • Active Area: 154.21*85.92mm

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 700 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

Request A Quote
tft brightness
tft brightness
high brightness tft display
sunlight lcd
sunlight lcd display
7 lcd module
sunlight readable lcd module
sunlight readable lcd price
sunlight readable lcd panel
sunlight readable display price
7 inch tft module
sunlight readable display
sunlight readable tft
sunlight readable tft lcd

Overview of High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA

1

Z70069 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 1024*600 resolution. IPS (In-plane Switching) technique make this 7" LCD module have a wider view angle. This LCD display is built-in EK79001HN+EK73215BCGA driver IC. This a-Si TFT LCD module come with RGB interface 700cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc, we can also customize for you.

3

Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 7 inch LCD screen is widely used in Medical, visual doorbell, Vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, QRcode scanner, smart home, industry, handheld LCD, outdoor, HMI, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, elevator advertising, etc.

Specification of High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1024 (H) × RGB × 600 (V）

pixels

3

Pixel Pitch

50.2 (H) × 143.2 (V）

um

4

LCM Outline Dimension

(Without FPC）

163.7 (W) × 96.9 (H) × 2.59 (T)

mm

5

LCD Outline Dimension

162.2 (W) × 95.7 (H) × 1.0 (T)

mm

6

LCD Active Area

154.21 (W) × 85.92 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

EK79001HN+EK73215BCGA

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 5.0% Min: 4.8%

-

13

LCD Contrast Ratio

Typ.: 800

-

14

FPC Version

Z70042-HB2509-R V1

-

15

Interface

RGB

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/3 Series 10 Parallel (30 lights in total)

-

19

Luminance

710

nit

20

Weight

0.088

kg


Interface Definition Description of High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA


8MODEDE / HV mode select mode PIN
9DEData Enable
10VSDVertical synchronize Signal
11HSDHorizontal synchronize Signal
12-19B7-B0DATA BUS
20-27G7-G0DATA BUS
28-35R7-R0DATA BUS
36GNDGround
37DCLKPixel clock signal in RGB I/F
38GNDGround
39SHLRSource right or left sequence control PIN
40UPDNGate up or down scan control PIN
41VDDETFT Gate ON Voltage
42VEEGTFT Gate OFF Voltage
43AVDDPower For Analog Circuit
44RSTBLCM RESET PIN
45NCNo Connection
46VCOMCommon Voltage
17DITHDithering function enable control PIN
48GNDGround
49-50NCNo Connection
RESET voltage should be consistent with VDDI voltage, otherwise it maybe black screen fault when power on.



MechanicalDrawing of High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA


MechanicalDrawing of High Luminance 700nits 7 Inch TFT LCD Module RGB Interface 1024*600 QVGA
