Z80036-ZC 800*1280 8 Inch Touch Display IPS LCD Screen GT9271 Controller I2C Interface 10 Point Capacitive

Size: 8"

Resolution: 1280*800

LCD Interface: LVDS

Touch Interface: IIC

Touch Panel: 10 point Capacitive Touch

Touch Controller: GT9271

View Angle: IPS

Supply Type: Factory/Manufacturer

Certification:ISO9001,IATF16949,ROHS,REACH

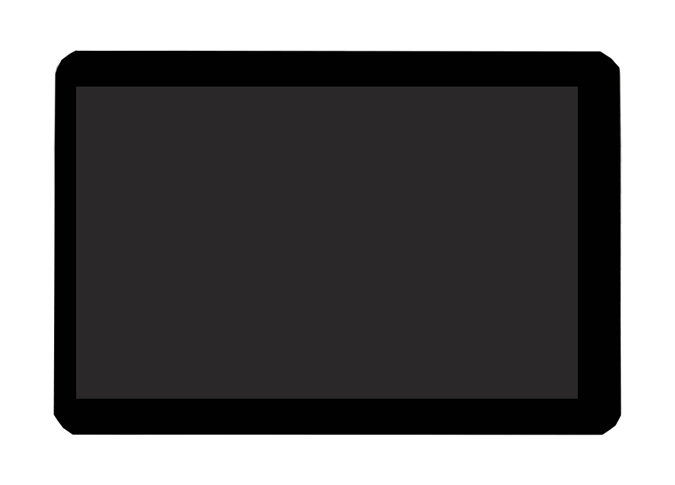

z80036zc wholesale

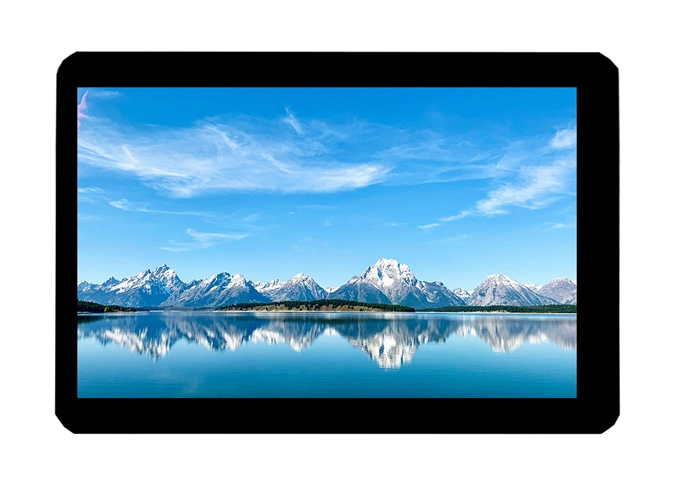

z80036zc wholesale

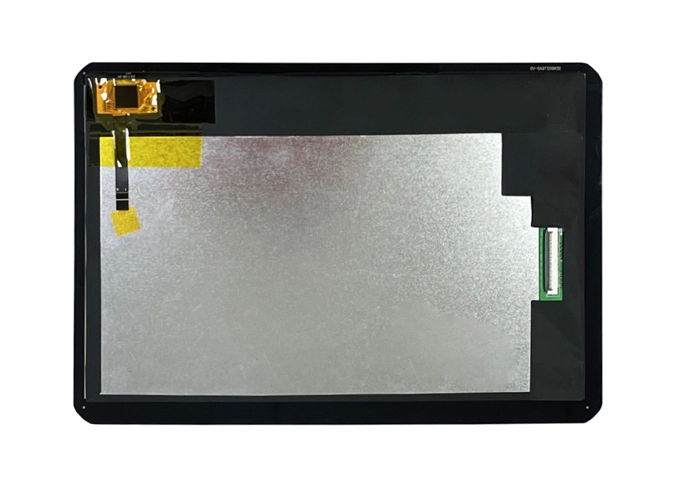

z80036zc supplier
z80036zc

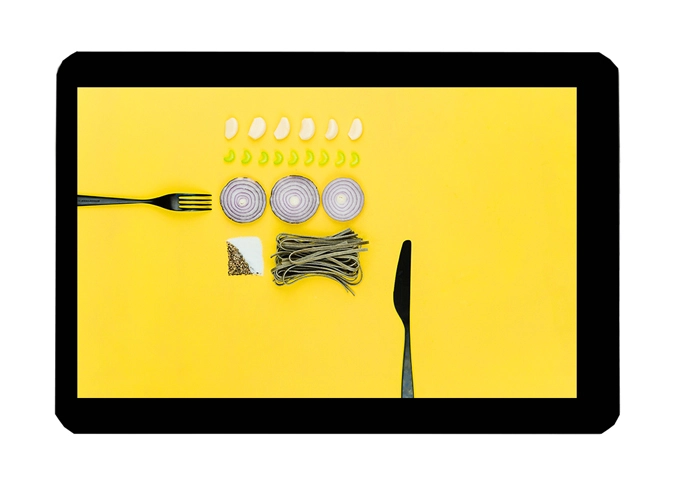

z80036zc company

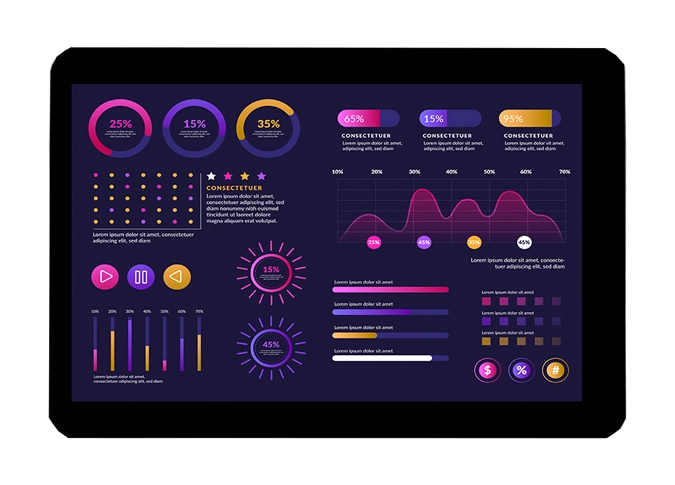

z80036zc manufacturer

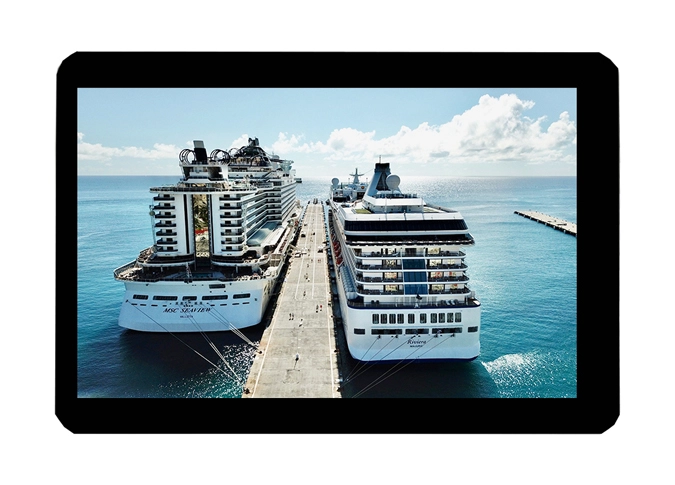

z80036zc factory

Overview of Z80036-ZC 800*1280 8 Inch Touch Display IPS LCD Screen GT9271 Controller I2C Interface 10 Point Capacitive

1

Z80036-ZC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with multi-point capacitive touch panel, QVGA 1280*800. This TFT touch display is built-in GT9271 touch controller. This a-Si TFT LCD China touch panel module come with LVDS and I2C interface.

2

If you have special requirement, like driver IC, interface, FPC, touch panel, backlight, brightness, color etc, we can provide custom LCD display module for you.

3

As a China LCD module manufacturer, our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

This 8 inch LCD touch screen is widely used in Automotive, viusal doorbell, home automation, medical equipment, industrial control, electronic POS, QR code,smart home, retail kiosks, consumer electronics, Advertising, Vending, Education, laptop, aviation and aerospace, ect

General Specifications Z80036-ZC 800*1280 8 Inch Touch Display IPS LCD Screen GT9271 Controller I2C Interface 10 Point Capacitive


No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

1280(H)  × RGB × 800  (V)

pixels

3

Pixel Pitch

134.5(H) × 134.5  (V)


um


4

LCM Outline Dimension

(Without FPC)


181.85 (W) ×119.30 (H) ×2.40 (T)


mm

5

LCD Active Area

172.22  (W)  ×107.64  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW


-

7

Driver IC

/


-

8

Pixel Arrangement

RGB-Stripe


-

9

Display Mode

Normal Black


-

10

Pixel driving Element

a-Si TFT


-

11

LCD Transmittance

/


-

12

LCD Contrast Ratio

Typ.: 900


-

13

FPC Version

/


-

14

Interface

LVDS


-

15

Operating Temperature

-20°C~ 70°C


-

16

Storage Temperature

-30°C~ 80°C


-

17

Backlight Arrangement

LED/7 Series 4 Parallel (28 lights in total)


-

18

Luminance

Typ.:330

nit

19

Weight

TBD

g


Interface Definition Description Z80036-ZC 800*1280 8 Inch Touch Display IPS LCD Screen GT9271 Controller I2C Interface 10 Point Capacitive


PIN NO.

PIN DEF.

FUNCTION DESC.

1

VCOM

Common    Voltage(3.4V)

2-3

VDD

Power Supply(3.3V)

4-6

NC

No Connection

7

GND

Ground

8

Rxin0-

LVDS differential data input

9

Rxin0+

LVDS differential data input

10

GND

Ground

11

Rxin1-

LVDS differential data input

12

Rxin1+

LVDS differential data input

13

GND

Ground

14

Rxin2-

LVDS differential data input

15

Rxin2+

LVDS differential data input

16

GND

Ground

17

RxCLK-

LVDS differential clock input

18

RxCLK+

LVDS differential clock input

19

GND

Ground

20

Rxin2-

LVDS differential data input

21

Rxin2+

LVDS differential data input

22

GND

Ground

23-24

NC

No Connection

25

GND

Ground

26-28

NC

No Connection

29

AVDD

Power For Analog(+10.4V)

30

GND

Ground

31-32

LEDK

LED Cathode

33-34

NC

No Connection

35

VGL

Gate OFF Voltage(-7V)

36-37

NC

No Connection

38

VGH

Gate On Voltage(+18V)

39-40

LEDA

LED Anode

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
