Z101034-ZC3 High Definition 1920x1200 10.1 inch TFT Touch Screen with Multi-point Capacitive Touch LVDS Panel

  • Size: 10.1"

  • Resolution: 1920*1200

  • LCD Interface: LVDS

  • Touch Interface: IIC

  • Touch Panel: Capacitive

  • Touch Controller: GT911

  • View Angle: IPS

  • Supply Type: Factory/Manufacturer

  • Certification:ISO9001,IATF16949,ROHS,REACH

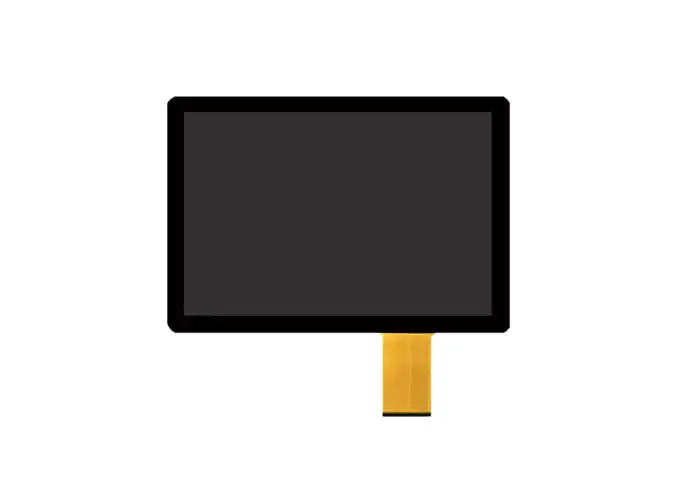

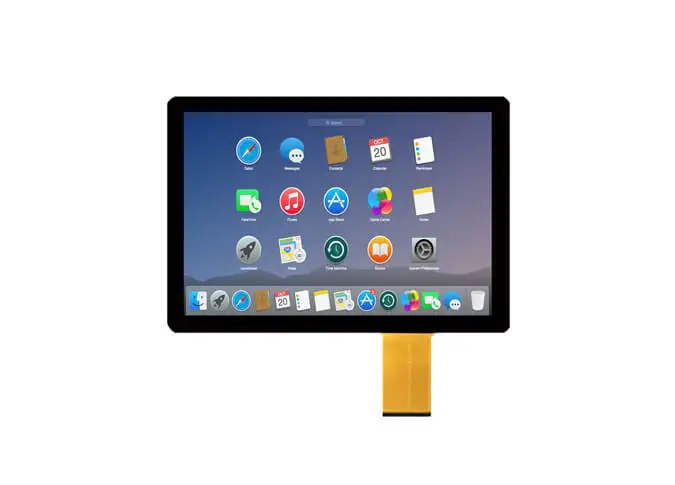

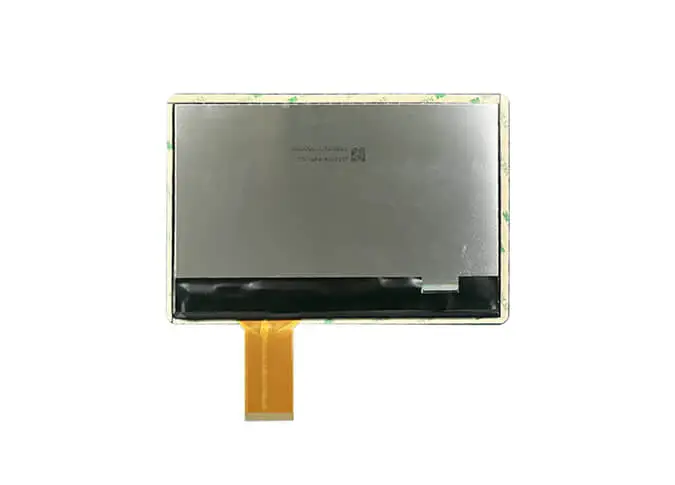

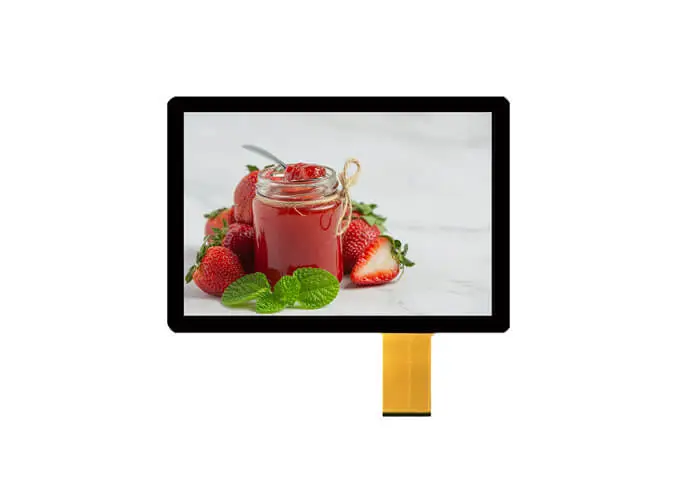

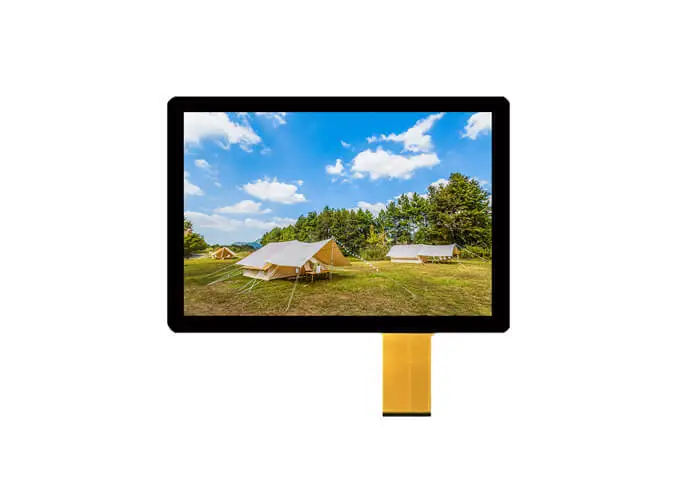

z101034 zc3 1
z101034 zc3 1
z101034 zc3 2
z101034 zc3 3
z101034 zc3 4
z101034 zc3 5

Overview of Z101034-ZC3 High Definition 1920x1200 10.1 inch TFT Touch Screen with Multi-point Capacitive Touch LVDS Panel

1

Z101034-ZC3 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with multi-point capacitive touch panel, resolution 1920*1200. This TFT touch display is built-in GT911 touch controller .This a-Si TFT LCD touch screen come with LVDS and I2C interface.

2

If you have special requirement,like driver IC, interface,FPC, touch panel, backlight ,brightness,color etc, we can also customize for you.

3

This 10.1 inch full HD capacitive touch screen is widely used in Medical, visual doorbell, vending, learning mechine, ventilator, oscilloscope, kitchen, household appliance, smart home, industry, handheld, outdoor, E-bike, Vehicle, projector, 3D printer, audio device, robot, electric scale, navigation, dashboard, elevator advertising, laptop, HMI, education, etc.

General Specifications of Z101034-ZC3 High Definition 1920x1200 10.1 inch TFT Touch Screen with Multi-point Capacitive Touch LVDS Panel


No.

Item

Specification

Unit

1

Display Size (Diagonal)

10. 1

inch

2

Display Resolution

1920(H)× RGB × 1200(V)

pixels

3

Pixel Pitch

37.64(H) × 112.92(V)

um


4

TLCM Outline Dimension

(Without FPC)


238.8(W) × 160.6 (H) ×4.8(T)


mm


5

LCM Outline Dimension

(Without FPC)


224.02(W) × 147.76 (H) ×2.6 (T)


mm

6

LCD Active Area

216.81(W) × 135.5(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 3.85% Min:3.61% Max:4.08%

-

12

LCD Contrast Ratio

Typ.: 900 Min:700%

-

13

Interface

LVDS

-

14

Operating Temperature

-20°C~ 70°C

-

15

Storage Temperature

-30°C~ 80°C

-

16

Backlight Arrangement

LED

-

17

Luminance

450(typ)

nit


Interface Definition Description of Z101034-ZC3 High Definition 1920x1200 10.1 inch TFT Touch Screen with Multi-point Capacitive Touch LVDS Panel


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

VLEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3-4

VLEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

5

NC

No Connection

6

GND

Ground

7

ELV3P

EVEN LVDS Positive data signal (+)

8

ELV3N

EVEN LVDS Negative data signal (-)

9

GND

Ground

10

ELV2P

EVEN LVDS Positive data signal (+)

11

ELV2N

EVEN LVDS Negative data signal (-)

12

GND

Ground

13

ELVCLKP

EVEN LVDS Positive CLK signal (+)

14

ELVCLKN

EVEN LVDS Negative CLK signal (-)

15

GND

Ground

16

ELV1P

EVEN LVDS Positive data signal (+)

17

ELV1N

EVEN LVDS Negative data signal (-)

18

GND

Ground

19

ELV0P

EVEN LVDS Positive data signal (+)

20

ELV0N

EVEN LVDS Negative data signal (-)

21

GND

Ground

22

OLV3P

Odd LVDS Positive data signal (+)

23

OLV3N

Odd LVDS Negative data signal (-)

24

GND

Ground

25

OLV2P

Odd LVDS Positive data signal (+)

26

OLV2N

Odd LVDS Negative data signal (-)

27

GND

Ground

28

OLVCLKP

Odd LVDS Positive CLK signal (+)

29

OLVCLKN

Odd LVDS Negative CLK signal (-)

30

GND

Ground

31

OLV1P

Odd LVDS Positive data signal (+)

32

OLV1N

Odd LVDS Negative data signal (-)

33

GND

Ground

34

OLV0P

Odd LVDS Positive data signal (+)

35

OLV0N

Odd LVDS Negative data signal (-)

36

GND

Ground

37

I2C_SDA

Reserved for LCD manufacturer’s use ,not connection

38

I2C_SCL

Reserved for LCD manufacturer’s use ,not connection

39

VDD_OTP

Reserved for LCD manufacturer’s use ,not connection

40

EEPEN

No Connection

41-45

VDDIN

Power supply VDDIN=3.3V (Typ.)

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
