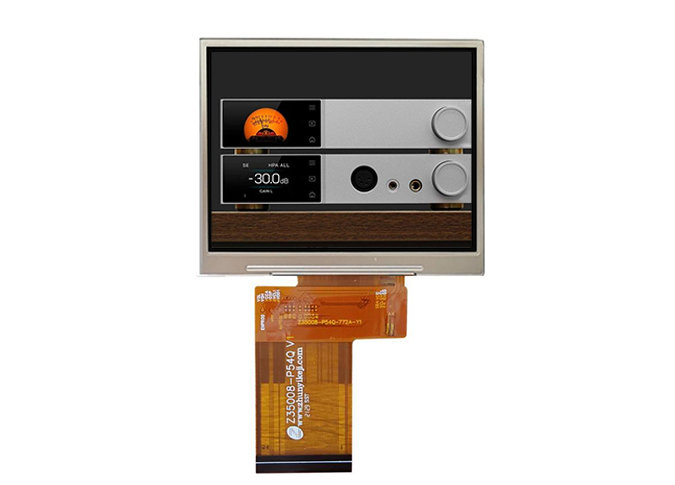

Z35008 Factory Custom 3.5 Inch IPS LCD Panel RGB+SPI Interface 320*480 ST7272A

  • Size: 3.5 inch

  • Resolution: 320*240

  • Interface: RGB

  • View Angle: IPS

  • Brightness: 350 cd/m²

  • Touch Panel: Support CTP/RTP

  • Supply Type: Factory/Manufacturer

  • Certification: ISO9001, IATF16949, ROHS, REACH

3.5 inch ips display
3.5 inch ips display
3.5 inch tft display
3.5 inch tft lcd
display 3.5 inch
lcd 3.5 inch
lcd display 3.5 inch
tft display 3.5 inch
3.5 inch lcd panel
5 inch lcd prices

Overview of Z35008 Factory Custom 3.5 Inch IPS LCD Panel RGB+SPI Interface 320*480 ST7272A

1

Z35008 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 320*240 resolution. IPS (In-plane Switching) technique make this 3" LCD module have a wider view angle. This Chinese LCD display screen is built-in ST7272A driver IC. This a-Si TFT LCD module come with RGB interface.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, we can provide China custom LCD display for you.

3

As a square LCD screen factory, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The 3 inch horizontal LCD screen is medical, dash came, POS, game player, cosmetic instrument, household appliance, QRcode scanner, Infrared temperature, translator, music player, smart home, industry, etc.

Specifications of Factory Custom 3.5 Inch IPS LCD Panel RGB+SPI Interface 320*480 ST7272A


No.

Item

Specification

Unit

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320 (H) × RGB × 240 (V)

pixels

3

Pixel Pitch

73 (H) × 219 (V)

um

4

LCM Outline Dimension

(Without FPC)

76.78 (W) × 63.74 (H) × 3.2 (T)

mm

5

LCD Outline Dimension

75.10 (W) × 60.26 (H) × 0.8 (T)

mm

6

LCD Active Area

70.08 (W) × 52.56 (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7272A

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 6.2% Min: 5.25%

-

13

LCD Contrast Ratio

Typ.: 1200 Min: 900

-

14

FPC Version

Z35008-P54Q V1

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-30°C~ 85°C

-

17

Storage Temperature

-30°C~ 85°C

-

18

Backlight Arrangement

LED/6 Series 1 Parallel (6 lights in total)

-

19

Luminance

400

nit

20

Weight

TBD

kg


Interface Definition Description of Factory Custom 3.5 Inch IPS LCD Panel RGB+SPI Interface 320*480 ST7272A


PIN NO.

PIN DEF.

FUNCTION DESC.

1-2

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

3-4

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

5-7

NC

No Connection

8

RESET

LCM RESET PIN

9

CS

Chip Select input PIN

10

SCL

LCM SPI clock (SCL) clock (SCLK)

11

SDI

LCM SPI data (SDI) data Input and Output (MOSI)

12-19

B0-B7

DATA BUS

20-27

G0-G7

DATA BUS

28-35

R0-R7

DATA BUS

36

HSYNC

Horizontal sync. Signal in RGB I/F.

37

VSYNC

Vertical sync. Signal in RGB I/F.

38

DOTCLK

Pixel clock signal in RGB I/F

39-40

NC

No Connection

41-42

VCC

POWER SUPPLY (2.8V/3.3V)

43-51

NC

No Connection

52

DEN

Data enable signal in RGB I/F DE mode.

53-54

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
