How TFT LCD Displays Are Made: Manufacturing Process and Advanced Technologies

A modern TFT LCD module may look like a simple screen, but its production combines precision materials, semiconductor-style processing, optical engineering, automated assembly, and strict quality control. From the initial glass substrate to the finished touch display, every manufacturing stage can affect brightness, color consistency, viewing angle, response performance, and reliability.

For companies sourcing displays from China, understanding the production process can also make it easier to evaluate suppliers. Zhunyi, a professional TFT LCD manufacturer, combines automated production equipment, engineering expertise, and testing systems to produce standard and customized display modules for industrial, medical, automotive, smart-home, and consumer applications. Its factory has more than 17 automated production lines and a monthly TFT LCD module capacity exceeding 800,000 pieces.

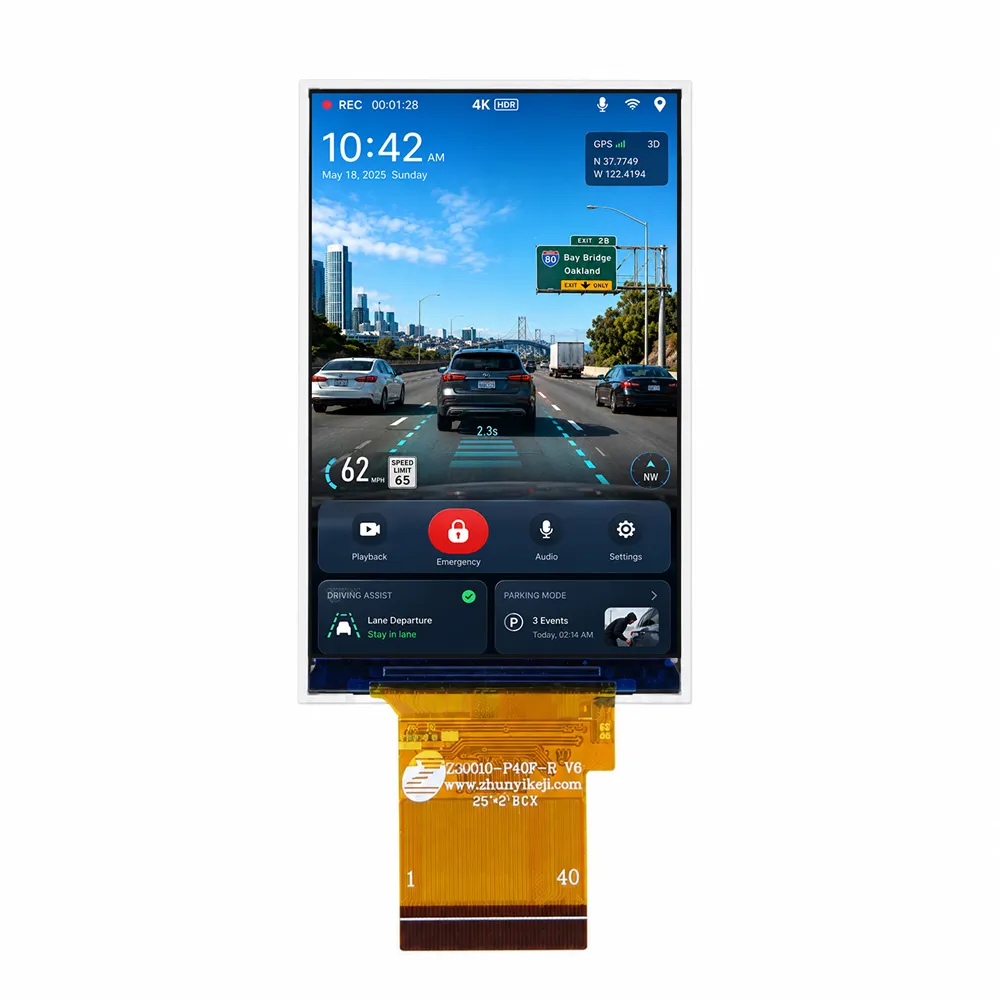

What Is Inside a TFT LCD Module?

Before looking at manufacturing, it helps to understand the main components.

A typical TFT LCD module can contain:

• TFT LCD cell

• Color filter

• Liquid crystal material

• Polarizer films

• LED backlight unit

• Driver IC

• FPC

• Touch panel, when required

• Cover glass

• Optical adhesive

The TFT array acts as an active matrix that controls individual pixels. Since liquid crystals do not generate their own light, an LCD requires a backlight behind the panel. Zhunyi's modules can additionally integrate touch panels, customized cover glass, driver ICs, and different interfaces.

This structure also explains why TFT LCD manufacturing requires considerably more precision than simply assembling a glass panel and a light source.

Step 1: Preparing and Cleaning the Glass Substrate

The manufacturing process begins with a highly flat glass substrate.

The glass must be extremely clean because microscopic contamination can affect subsequent coating, patterning, or electrical performance. Zhunyi's description of its TFT manufacturing process identifies substrate cleaning as the first major production stage, using chemical cleaning and ultrasonic methods to remove contaminants.

The purpose is to create a stable surface for the conductive and semiconductor layers that follow.

At this stage, cleanliness is critical. Dust particles or residues can become defects later in the manufacturing process, which is why modern display factories use controlled production environments.

Step 2: ITO and Thin-Film Deposition

The next stage involves depositing conductive and functional thin films onto the substrate.

Indium tin oxide, commonly called ITO, is a transparent conductive material widely used in display structures. Zhunyi's manufacturing description notes that conductive layers can be deposited using processes such as sputtering or vapor deposition.

Additional thin films are subsequently deposited to form the functional layers required by the TFT array.

This is one of the areas where display manufacturing overlaps with semiconductor-style processing. The thickness, uniformity, and composition of deposited layers must be carefully controlled because variations can influence electrical characteristics and image quality.

Step 3: Photolithography Creates Pixel Patterns

One of the most technically important stages is photolithography.

A photoresist layer is applied to the substrate, followed by exposure through a patterned mask. After development, selected areas of the photoresist remain while other areas are removed.

This allows manufacturers to create extremely fine patterns corresponding to the electronic structures that control individual pixels.

Zhunyi's documented manufacturing process identifies photolithography as a key stage following conductive-layer deposition.

The basic principle resembles processes used in semiconductor manufacturing: light is used to transfer a precise pattern onto a material surface.

Step 4: Etching and TFT Array Formation

After photolithography, unwanted portions of the exposed conductive layer are removed through etching.

The remaining structures form part of the electrical pathways required to control individual pixels. Multiple deposition, exposure, development, and etching cycles can be used to build the thin-film transistor array.

The TFT is essentially the switching element for a pixel. When millions of these microscopic elements operate together, they allow the display controller to control the brightness of individual pixels and reproduce images.

This active-matrix structure distinguishes TFT LCD from simpler passive-matrix display technologies.

Step 5: Building the Color and Liquid Crystal Layers

Once the transistor array and associated structures have been formed, the display cell requires additional optical layers.

A color filter separates incoming light into red, green, and blue components. The liquid crystal layer then controls how much light passes through each pixel according to the electrical signal.

Alignment layers help establish the required orientation of liquid crystal molecules.

Zhunyi describes this stage as including thin-film deposition, color-filter and alignment layers, followed by application and alignment of liquid crystal material.

The accuracy of these layers is essential for consistent color reproduction and uniform brightness.

Step 6: Cell Assembly and Polarizer Lamination

The different glass structures must then be assembled into a complete LCD cell.

Polarizer films are applied to the display because liquid crystals control the polarization of light passing through the cell. The polarizer therefore plays an important role in the final optical performance.

Modern manufacturing increasingly uses automated lamination equipment to improve consistency.

Zhunyi's manufacturing facilities include three fully automatic polarizer lamination lines, helping standardize this production stage across different module designs.

Step 7: COG and FOG Bonding

After the LCD cell is prepared, electrical connections must be established between the display and its driver electronics.

Two important processes are COG and FOG bonding.

COG, or Chip on Glass, places the driver IC directly onto the glass substrate.

FOG, or Film on Glass, bonds the flexible printed circuit to the glass.

These connections require highly precise positioning and controlled bonding conditions. A small alignment error or bonding defect can result in display lines, intermittent operation, or complete failure.

Zhunyi operates three fully automatic COG/FOG bonding lines and two automated bonding-particle inspection systems.

Automation is particularly valuable here because repeatability becomes increasingly important as displays become smaller and pixel densities increase.

Step 8: LED Backlight Assembly

Because TFT LCD pixels are not self-emissive, a backlight must be installed behind the panel.

The backlight typically uses LEDs, optical films, light-guide structures, reflectors, and diffusers to distribute illumination across the display.

A high-quality backlight needs to achieve sufficient brightness while minimizing visible hotspots and uneven illumination.

Zhunyi's facility includes four fully automatic backlight assembly lines. Its standard TFT range also includes high-brightness configurations reaching up to 1,500 nits for suitable applications.

This is particularly important for outdoor equipment, automotive interfaces, and industrial displays that need to remain readable under strong ambient light.

Step 9: Optical Bonding and Touch Integration

For touch displays, manufacturing can go beyond simply placing a touch panel above the LCD.

Optical bonding uses adhesive to join display layers while reducing the air gap between them. This can improve light transmission, reduce reflections, and decrease the visual parallax between the image and touch surface.

Zhunyi operates three fully automatic optical bonding lines and offers customization for touch panels, cover glass, brightness, and other display parameters.

More advanced integration methods include OGS, On-Cell, and In-Cell technologies. In-Cell technology integrates touch sensing elements within the display structure, reducing the number of separate layers but requiring significantly more precise manufacturing.

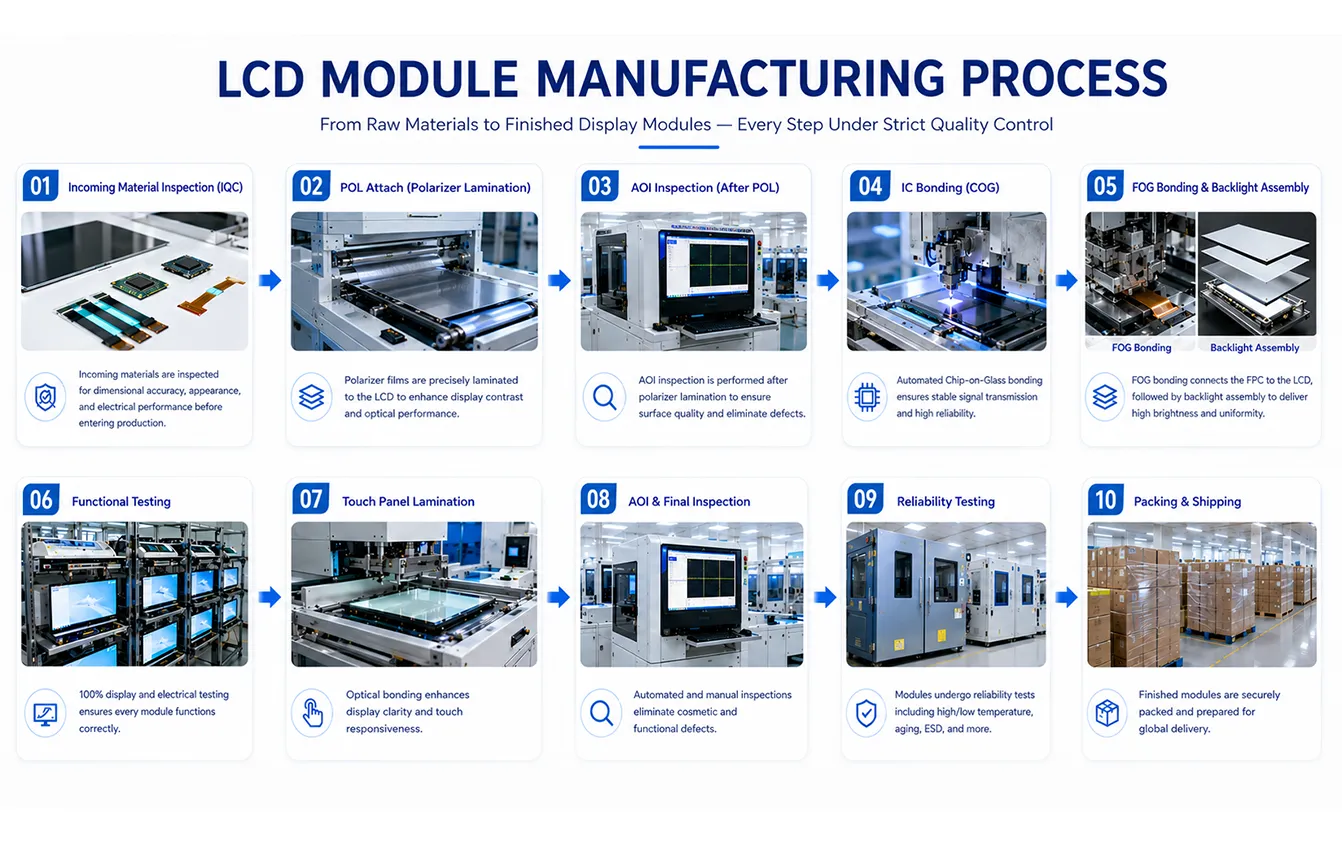

Step 10: Automated Testing and Quality Inspection

Manufacturing does not end when the module is assembled.

Each display needs to be checked for parameters such as:

• Pixel defects

• Brightness uniformity

• Color performance

• Touch response

• Electrical operation

• Interface communication

• Appearance

• Bonding quality

Automated inspection systems can detect defects more consistently than visual inspection alone.

Zhunyi states that its factory performs 100% functional testing before shipment, supported by automated production and quality-control systems. The company operates under ISO 9001 and IATF 16949 quality systems.

For OEM buyers, this final testing stage is especially important because display defects discovered after integration can be significantly more expensive to correct.

Advanced Technologies Behind Modern TFT LCD Manufacturing

Modern TFT LCD production is increasingly dependent on automation and precision technologies.

Automated Bonding

Automatic COG and FOG equipment improves alignment accuracy and production consistency.

Automated Polarizer Lamination

Machine-controlled lamination reduces variation in positioning and surface quality.

Optical Bonding

Optical bonding improves readability and helps create thinner, more integrated touch-display structures.

Automated Backlight Assembly

Precision assembly helps produce more uniform illumination across the active area.

Particle Inspection

Automated inspection systems can identify contamination or bonding particles that could otherwise become visible defects.

High-Brightness Engineering

Improved LED backlight and optical structures allow TFT LCD modules to reach high luminance levels for sunlight-readable applications.

These technologies help explain why selecting a TFT supplier should involve more than comparing catalog prices.

Where Do IPS, TN and AMOLED Fit Into the Manufacturing Picture?

The manufacturing structure also helps explain the difference between display technologies.

IPS and TN are both TFT LCD technologies, but their liquid-crystal structures and pixel operation differ. IPS is commonly selected where wide viewing angles and consistent color performance are important, while TN can be attractive for cost-sensitive or fast-response applications. Zhunyi's standard portfolio includes both IPS and TN TFT modules.

AMOLED works differently because its pixels are self-emissive and do not require an LCD backlight.

Therefore, the question of difference between TFT LCD and AMOLED is fundamentally a comparison between two different display architectures.

TFT LCD offers a mature manufacturing ecosystem, broad size selection, high-brightness options, and extensive customization. AMOLED can provide excellent contrast and true blacks, making it attractive for premium visual applications.

Why Manufacturing Capability Matters When Choosing a Supplier

For companies searching for a China custom LCD manufacturer, manufacturing capability directly affects customization and production stability.

A supplier with automated bonding, lamination, optical bonding, backlight assembly, testing, and experienced R&D engineers can handle more than standard catalog products.

Zhunyi's facility covers more than 4,000 square meters, with 20+ experienced R&D engineers, 1,000+ standard display modules, 10+ interface options, and support for OEM and ODM customization.

This is particularly valuable when a project requires a special-size panel, customized FPC, touch integration, unusual brightness, or a non-standard mechanical structure.

FAQ

How is a TFT LCD display manufactured?

The basic process includes substrate cleaning, conductive-layer deposition, photolithography, etching, thin-film formation, liquid-crystal alignment, cell assembly, polarizer lamination, driver bonding, backlight assembly, and final testing.

What is COG bonding?

COG means Chip on Glass. It bonds the display driver IC directly to the glass substrate, providing a compact electrical connection.

Why is optical bonding used?

Optical bonding reduces the air gap between display layers, which can improve readability, reduce reflections, and provide a more integrated touch experience.

Is TFT LCD better than AMOLED?

Neither technology is universally better. TFT LCD offers broad customization and mature manufacturing, while AMOLED provides self-emissive pixels and excellent black levels. The appropriate choice depends on the product.

What makes a good LCD panel manufacturer in China?

Look for automated production, reliable bonding technology, engineering support, quality testing, customization capabilities, and stable long-term production capacity rather than focusing only on unit price.

Conclusion

The production of a TFT LCD module is a highly precise process involving materials engineering, photolithography, thin-film deposition, automated bonding, optical assembly, backlight technology, and comprehensive testing.

From the microscopic TFT array to the final optical-bonded touch module, every manufacturing stage contributes to the finished display's performance. Advanced automation is particularly important for maintaining consistency as displays become smaller, higher resolution, and more customized.

For companies looking for a China custom LCD manufacturer, Zhunyi combines automated manufacturing equipment, R&D capabilities, quality systems, and OEM/ODM services to produce TFT LCD solutions for different product requirements. Its manufacturing capabilities allow customers to move from a basic display specification to a fully integrated module designed for their application.
