How to Choose a Square TFT LCD Module for Your Product

Square displays are becoming increasingly popular in smart home devices, industrial equipment, medical instruments, wearables, control panels, and compact consumer electronics. Compared with conventional 16:9 screens, a square format can make better use of limited product space while creating a distinctive interface.

For product developers, choosing the right Square TFT Display involves more than checking screen size and resolution. Panel technology, viewing angle, brightness, interface, touch capability, operating temperature, and long-term supply all affect the final product.

As an experienced China LCD module manufacturer, Zhunyi Technology provides standard and customized TFT LCD solutions in different sizes, resolutions, interfaces, and shapes. Its square display range includes compact 240×240 modules as well as larger high-resolution square panels.

What Is a Square TFT LCD Module?

A Square TFT LCD panel is a thin-film transistor liquid crystal display designed with a square or near-square active area. TFT technology uses an active matrix to control individual pixels, enabling clear images, good response performance, and stable color reproduction.

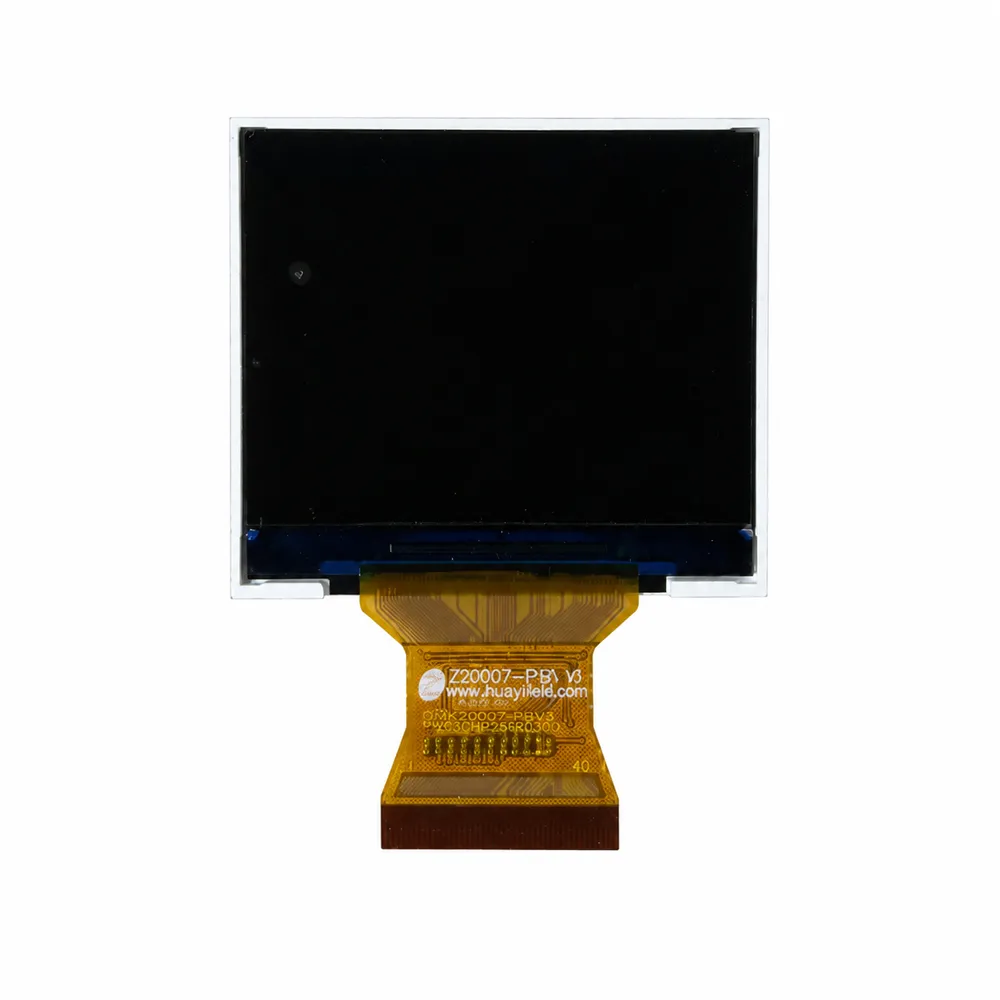

A square format is particularly useful when the product enclosure or user interface does not require a conventional widescreen ratio. For example, Zhunyi offers square TFT modules ranging from 1.3-inch 240×240 displays to 5-inch high-brightness panels, with options including IPS viewing angles and SPI, MCU, RGB, and MIPI interfaces.

Typical applications include:

• Smart home control panels

• Smart watches and wearable devices

• Industrial HMIs

• Medical equipment

• POS and retail devices

• Digital signage

• Smart appliances

• Automotive and embedded electronics

The right Square TFT Screen can therefore provide both functional advantages and a distinctive product appearance.

Why Choose a Square TFT Display?

The biggest advantage of a square display is efficient space utilization. A square interface can present icons, graphs, menus, measurements, and status information without leaving large unused areas.

For embedded products, dimensions are also important. A display may need to fit precisely inside an existing enclosure, so the overall dimensions, active area, FPC position, connector, and mounting structure must be considered together.

Zhunyi's square display solutions support customization of factors such as FPC, touch panel, cover glass, brightness, backlight, and logo. This allows OEM customers to adapt a Square TFT Display to a particular mechanical and electrical design rather than redesigning the entire product around an off-the-shelf screen.

TFT vs Super AMOLED: Which Is Better?

The question of TFT vs super amoled which is better does not have one universal answer. The better technology depends on the product's application, cost target, brightness requirements, power strategy, and expected service life.

TFT LCD uses liquid crystals and a backlight, while AMOLED is a self-emissive technology. Super AMOLED is a type of AMOLED in which the touch layer is integrated into the display structure.

OLED technologies can produce extremely deep blacks because individual pixels can turn off completely. LCD displays, in contrast, require a backlight.

However, TFT display vs super amoled should be evaluated according to the actual product. Industrial controllers, medical devices, POS terminals, and embedded systems may prioritize stable supply, high brightness, interface compatibility, customization, and cost rather than absolute black levels.

For these applications, a well-designed IPS TFT can be a highly practical solution.

How to Know If Your Monitor Is IPS

Many buyers ask how to know if my monitor is IPS after purchasing a display. The most reliable method is to check the manufacturer's specification sheet or the exact panel model.

You can also look at the following characteristics:

1. Check the Product Specifications

Search the monitor's model number on the manufacturer's website. Look specifically for "IPS," "In-Plane Switching," or an equivalent panel description.

2. Observe Viewing Angles

IPS panels are known for maintaining relatively consistent colors and brightness when viewed from different directions. Zhunyi's IPS TFT products, for example, are designed for wide viewing angles, with some models specified at up to 178 degrees.

3. Compare Color Changes

Display a solid-color image and view it from the side. Significant color shifting or darkening can indicate a different panel technology, although this test alone cannot conclusively identify IPS.

4. Check the Panel or Datasheet

For OEM projects, the datasheet is more reliable than visual testing. It should identify the panel technology, resolution, interface, brightness, viewing direction, and other specifications.

This is especially important when purchasing a Square TFT LCD for mass production.

What to Check When Buying a Square LCD Module from China

If you are looking for a square LCD module supplier, price should not be the only selection criterion. A reliable supplier should be able to provide technical specifications and customization support.

Consider these factors:

Panel size and resolution: Make sure the active area fits the enclosure and provides sufficient image detail.

Interface: SPI, MCU, RGB, MIPI, LVDS, and other interfaces have different bandwidth and integration requirements. Zhunyi provides multiple interface options across its TFT LCD range.

Brightness: Outdoor or industrial applications may require substantially higher brightness than indoor consumer products.

Viewing angle: IPS is useful when users need to view the screen from multiple directions.

Touch panel: Determine whether capacitive or resistive touch is appropriate for the application.

Operating temperature: Industrial and outdoor products may require a wider temperature range.

Customization: Check whether the supplier can modify FPC, backlight, cover glass, touch panel, driver IC, and mechanical dimensions.

Why Work with a China LCD Module Manufacturer?

China has a mature electronics manufacturing supply chain, making it an important sourcing location for display modules. However, buyers should distinguish between a trading company and a manufacturer with engineering and production capabilities.

Zhunyi Technology states that it provides OEM and ODM services and supports customized LCD, FPC, driver IC, backlight, touch panel, brightness, and mechanical specifications. Its manufacturing system also includes ISO9001 and IATF16949 quality management certifications.

For international buyers searching for China supply LCD display screen solutions, working directly with a capable manufacturer can simplify communication about samples, engineering changes, testing, and mass production.

How to Select the Right Square TFT Screen

Start with the product requirements rather than the display technology alone. Define the available installation space, viewing distance, resolution, brightness, interface, touch function, operating temperature, and target quantity.

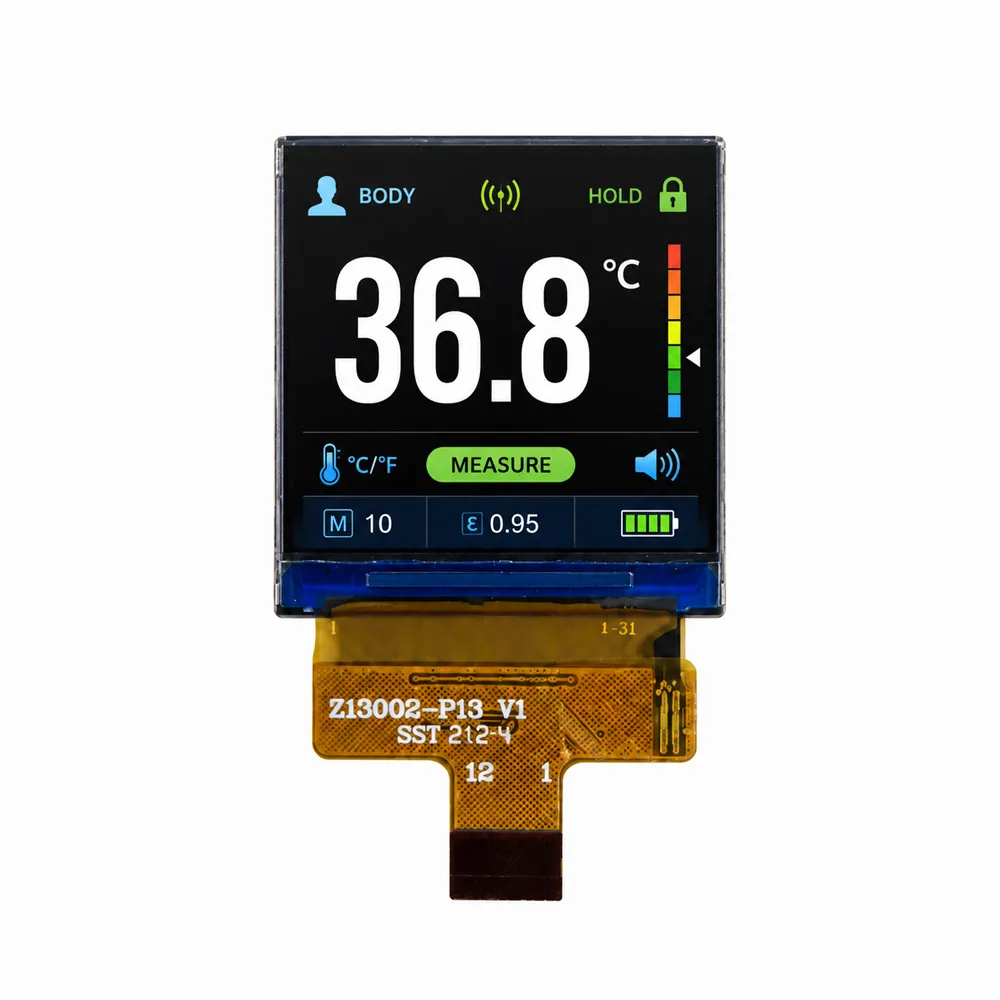

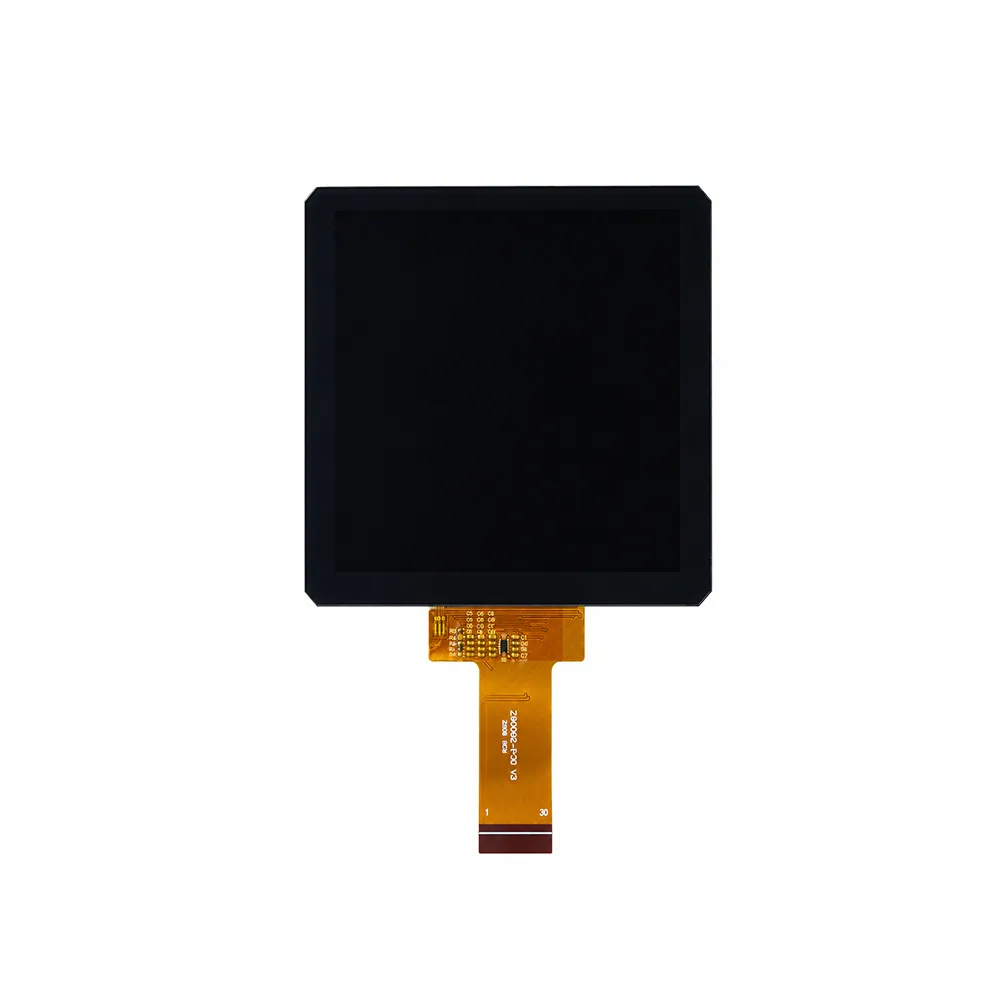

For example, a compact smart device may need a 1.3-inch 240×240 Square TFT Screen, while an industrial control panel could require a 4-inch 720×720 MIPI module. Zhunyi's current square range includes examples such as 1.3-inch 240×240, 3.4-inch 480×480, and 4-inch 720×720 displays.

The key is to match the display specification with the complete product architecture.

FAQ

Is TFT better than Super AMOLED?

Neither is universally better. Super AMOLED offers exceptional contrast and black levels, while TFT LCD can provide cost-effective, bright, customizable solutions for many industrial and embedded applications.

Are all TFT displays IPS?

No. TFT describes the active-matrix display technology, while IPS is one type of LCD panel technology. TFT LCD products can use different panel technologies, including IPS and TN.

How can I check whether a panel is IPS?

The best method is to check the manufacturer's datasheet or product specification. Viewing-angle and color-shift tests can provide clues but should not replace technical documentation.

Can a Square TFT Display be customized?

Yes. Depending on the manufacturer, customization can include dimensions, FPC, driver IC, interface, backlight, brightness, cover glass, and touch panel. Zhunyi provides OEM and ODM customization for these requirements.

Conclusion

Selecting a Square TFT Display requires balancing image quality, size, interface, brightness, touch functionality, cost, and long-term supply. IPS TFT technology is particularly attractive for applications requiring wide viewing angles and consistent colors, while Super AMOLED can be preferable when contrast, deep blacks, and premium visual performance are the highest priorities.

For OEM and ODM projects, choosing an experienced China LCD module manufacturer can also make customization and mass production easier. With its range of square TFT solutions and customization capabilities, Zhunyi can support developers looking for reliable square LCD modules for industrial, medical, smart home, wearable, and consumer electronics applications.
