Why Do TFT LCD Screens Get Damaged? Common Causes, Troubleshooting and Solutions

A TFT LCD screen is a precision electronic component consisting of multiple layers, including the glass substrate, liquid crystal layer, thin-film transistor array, polarizer, backlight, driver electronics, and sometimes a touch panel. Damage to any of these components can affect image quality or make the display completely unusable.

For manufacturers and equipment developers, understanding why an LCD fails is important because many display problems are not caused by the panel itself. Mechanical stress, incorrect installation, unstable power, excessive heat, unsuitable cables, or incompatible driving signals can all contribute to failure.

Zhunyi provides standard and customized TFT LCD modules for industrial, automotive, medical, smart-home, and consumer products. Its product range includes Square TFT LCD modules, round displays, rectangular panels, and high-resolution MIPI and LVDS solutions.

What Are the Most Common Causes of LCD Screen Damage?

LCD failures generally fall into several categories: mechanical damage, electrical problems, environmental stress, connection problems, and component aging.

Some failures are immediately visible, such as a cracked screen. Others appear as intermittent flickering, abnormal colors, lines, dead pixels, or a completely black display.

The first step in troubleshooting is to determine whether the problem is caused by the LCD panel, backlight, touch system, cable, driver IC, power supply, or host device.

1. Cracked or Broken LCD Glass

Physical impact is one of the easiest ways to permanently damage an LCD.

Dropping equipment, pressing heavily on the screen, bending the enclosure, or allowing another component to push against the display can crack the glass substrate. Once the glass is physically damaged, software adjustment cannot restore the panel.

Possible causes

• Dropping the device

• Excessive pressure during assembly

• Incorrect screw torque

• An enclosure that is too tight

• Vibration or mechanical shock

• Poor packaging during transportation

• Foreign objects trapped between the LCD and housing

Solution

A cracked TFT panel normally needs to be replaced rather than repaired at component level. Do not continue pressing the damaged area because additional mechanical stress can make the damage worse.

For OEM products, mechanical drawings should be reviewed before mass production. The LCD should have adequate clearance inside the enclosure and should not carry structural stress from the housing.

Zhunyi's standard and customized modules provide mechanical specifications such as outline dimensions, active area, thickness, and FPC configuration, which can be used during enclosure design. For example, its 4-inch Z40050 Square TFT LCD module measures approximately 72.93 × 78.02 × 2.15 mm.

2. Black Screen or No Display

A black screen does not necessarily mean the LCD glass is damaged.

A display can remain physically intact while failing to show an image because of:

• Incorrect power supply

• Loose FPC connection

• Damaged cable

• Incorrect initialization commands

• Driver IC problems

• MIPI or LVDS communication errors

• Backlight failure

• Host processor problems

Before replacing the panel, check the power rails and cable connections.

If an external monitor or another known-good display works correctly with the same host system, the LCD module becomes a more likely source of the problem. Conversely, if several displays fail in exactly the same way, the controller or software should be investigated first.

Zhunyi's troubleshooting guidance similarly recommends checking whether the problem is related to the display itself or the connected system when an LCD does not display.

3. Abnormal Colors, Lines or Flickering

Color distortion is another common LCD problem.

The screen may show:

• Incorrect colors

• Vertical lines

• Horizontal lines

• Flickering

• Uneven brightness

• A partially displayed image

• Random image patterns

These symptoms can result from either hardware or signal problems.

Check the Connection First

A partially inserted FPC or damaged connector can cause individual data channels to malfunction. Reconnecting the cable carefully can sometimes solve the problem.

Check the Driver Configuration

The host controller must use the correct display initialization sequence and timing parameters. Resolution, pixel format, refresh configuration, MIPI settings, and other parameters must match the LCD specification.

For example, Zhunyi's Z70010 is a 7-inch 720 × 1280 IPS TFT LCD using an ILI9881C driver IC and MIPI interface. The display and host system therefore need to be configured for the appropriate controller and interface requirements.

Check for Physical Damage

If lines remain after the connection and software have been verified, the panel or driver circuitry may have been damaged.

4. Backlight Failure

A TFT LCD can produce image data while appearing black if its backlight is not operating.

One useful diagnostic method is to illuminate the screen with an external light source while the display is powered. If very faint image content can be seen, the LCD may be receiving image information while the backlight system has failed.

Possible causes include:

• LED backlight failure

• Incorrect backlight voltage

• Driver circuit failure

• Damaged FPC

• Excessive operating temperature

• Incorrect brightness-control signal

The solution depends on whether the failure is located in the LED system or the LCD module. For mass-produced equipment, replacing the complete module may be more practical than repairing individual LEDs.

5. Touch Panel Damage

Modern displays often combine an LCD with a capacitive or resistive touch panel. This creates another possible failure point.

A display may show the correct image while touch functions do not work.

Possible causes include:

• Broken touch sensor

• Damaged touch FPC

• Incorrect I2C connection

• Touch-controller failure

• Excessive surface pressure

• Water or contamination

• Incorrect firmware configuration

Zhunyi's display portfolio includes LCD modules supporting both capacitive and resistive touch solutions. Its square display range, for example, lists touch support across multiple sizes and interfaces.

When troubleshooting, test the LCD display and touch function separately. A working image does not necessarily mean the complete touch-display module is healthy.

6. Heat, Moisture and Environmental Stress

Environmental conditions can gradually damage an LCD module even when there is no obvious physical impact.

High temperatures can affect the backlight, driver electronics, adhesives, and other components. Excessive humidity can create condensation and potentially cause electrical problems.

For industrial and outdoor equipment, the display's specified operating temperature should therefore be checked before installation.

Many Zhunyi round and square TFT modules are specified for an operating range of approximately -20°C to 70°C, although the exact specification depends on the model.

Using a display outside its specified range can increase the risk of abnormal operation or premature failure.

7. Why the Wrong Installation Method Can Damage a TFT LCD

A display can be damaged even when the product is assembled correctly from an electrical perspective.

One common problem is mechanical stress.

For example, if the enclosure is slightly smaller than the LCD module, tightening the housing screws can bend the display. The panel may work during initial testing but develop lines, color abnormalities, or cracks later.

Engineers should therefore verify:

LCD dimensions → mounting method → FPC bending radius → connector position → enclosure tolerance → screw pressure.

The FPC should also not be folded sharply unless the manufacturer's specifications allow it.

For custom projects, working directly with a lcd panel manufacturer china can make it easier to confirm these mechanical details before tooling.

TFT vs AMOLED: Can Display Technology Affect Failure Modes?

The difference between TFT and AMOLED is relevant when considering failure characteristics.

TFT LCD uses a backlight to illuminate the liquid-crystal layer, whereas AMOLED pixels are self-emissive. As a result, the two technologies have different structures and potential failure mechanisms.

For an LCD, troubleshooting may involve the backlight, driver IC, liquid-crystal panel, or display interface. With AMOLED, pixel aging and image retention can become additional considerations.

Therefore, TFT vs AMOLED should not be judged only by image quality. The engineering team should also consider the intended operating conditions, interface, mechanical structure, repair strategy, and required product characteristics.

For industrial equipment where replacement and supply continuity are important, TFT LCD remains a widely used technology.

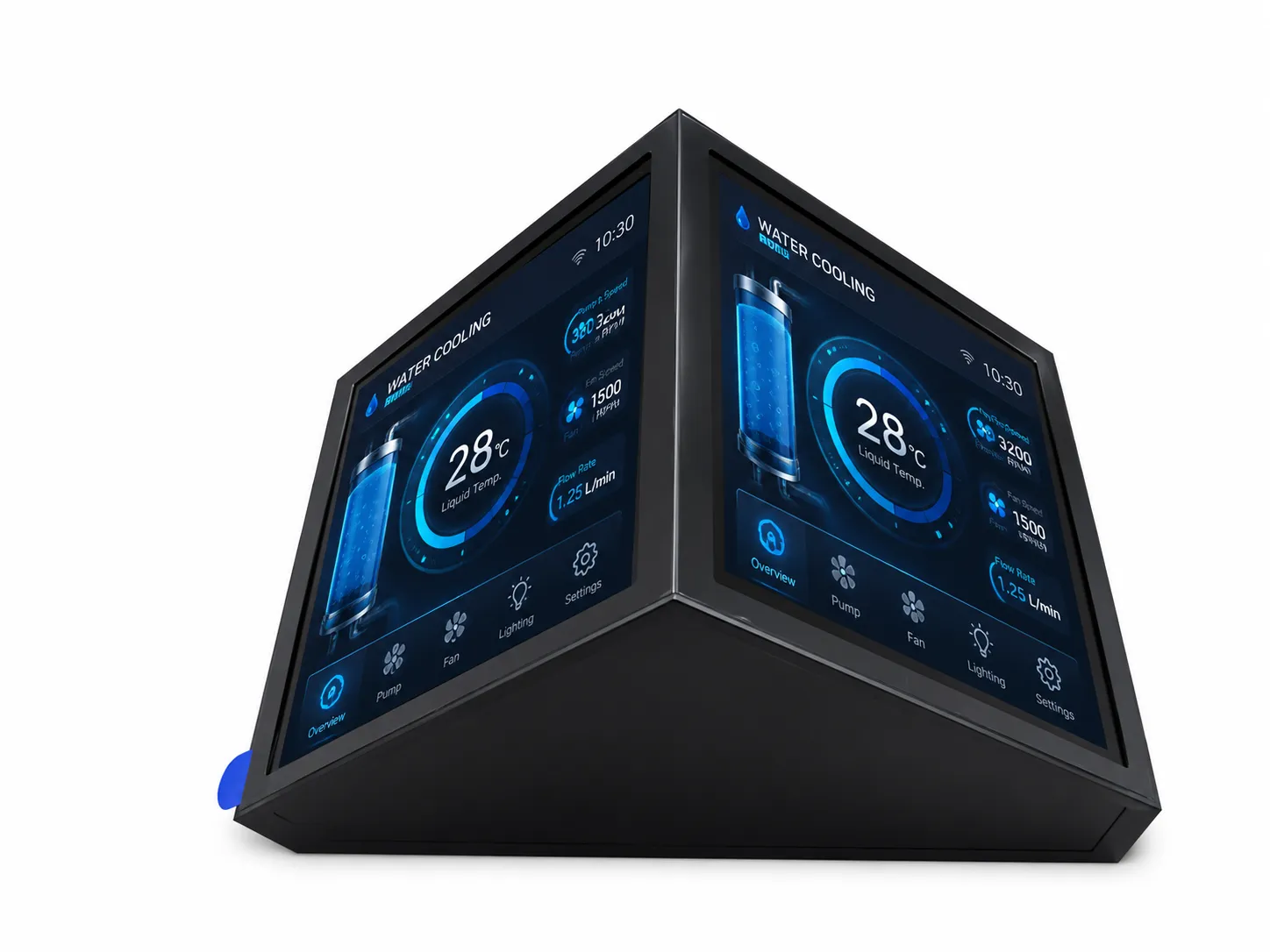

Square TFT LCD vs Round LCD: Does Shape Affect Reliability?

The shape of the LCD can also influence mechanical integration.

A Square TFT LCD generally fits rectangular or square control enclosures easily. A round LCD, on the other hand, may require a specially designed bezel and mounting structure.

Zhunyi supplies both square and round TFT solutions. Its round LCD range includes 720 × 720 IPS MIPI displays, while its square range includes 720 × 720 MIPI modules.

A round display should not simply be installed inside a circular opening without considering the support structure around the glass. The enclosure should distribute pressure evenly and prevent localized stress.

How to Prevent LCD Damage During Transportation

Transportation is another potential source of damage.

Even a correctly manufactured display can be cracked or scratched if it is not properly packaged.

Recommended measures include:

• Individual protective packaging

• Shock-resistant outer packaging

• Separation between individual modules

• Protection for the FPC and connector

• Moisture protection where required

• Avoiding excessive stacking pressure

• Inspecting samples immediately after delivery

For large-scale purchasing from LCD panel manufacturers in China, buyers should also establish clear incoming-quality inspection procedures.

What to Do When an LCD Is Damaged?

A practical troubleshooting sequence is:

Step 1: Check whether the glass or polarizer has visible physical damage.

Step 2: Verify the power supply.

Step 3: Inspect the FPC and connector.

Step 4: Confirm the interface and initialization settings.

Step 5: Test the backlight.

Step 6: Test the touch panel separately.

Step 7: Compare the failed module with a known-good sample.

If the problem follows the LCD when it is connected to a verified system, the module itself is more likely to be defective.

For serious physical or electrical damage, replacing the module is generally safer than attempting an unauthorized repair.

Choosing a Reliable LCD Supplier to Reduce Failure Risk

The quality of the supplier can influence the reliability of the final product.

When evaluating LCD display manufacturers China, buyers should review:

• Product specifications

• Sample quality

• Mechanical drawings

• Driver IC information

• Interface documentation

• Quality certifications

• Customization capabilities

• Production consistency

• After-sales technical support

Zhunyi states that its factory operates under ISO 9001:2015 and IATF 16949:2016 quality systems, with applicable LCD products meeting RoHS and REACH requirements.

For specialized products, supplier engineering support is particularly valuable. A manufacturer should be able to help verify the FPC, interface, brightness, touch panel, backlight, and other parameters before mass production.

FAQ

Why does my TFT LCD have vertical lines?

Vertical lines may be caused by an improperly connected FPC, damaged cable, driver or communication problem, or physical damage to the panel. Check the connection and signal configuration before replacing the module.

Why is my LCD black but still showing a faint image?

This can indicate a backlight problem. The LCD may still be receiving image data while the LED backlight or its driver has failed.

Can a cracked LCD panel be repaired?

A seriously cracked LCD glass panel generally needs replacement. Attempting to press or repair the cracked area can cause additional damage.

Why does an LCD show incorrect colors?

Possible causes include incorrect initialization, signal configuration, loose connections, driver problems, or panel damage. Compare the display with a known-good module to isolate the problem.

Can excessive pressure damage a Square TFT LCD?

Yes. Pressure from an enclosure, mounting screws, or incorrect installation can create mechanical stress and eventually cause cracks, lines, or display abnormalities.

Is TFT more reliable than AMOLED?

Neither technology is automatically more reliable in every application. Reliability depends on the specific module, operating conditions, design, and use case. TFT LCD has a mature structure and is widely used in industrial and embedded products.

Conclusion

LCD damage can originate from many different sources. A cracked panel may be caused by mechanical impact, while a black screen may result from power, backlight, interface, or driver problems. Color distortion and lines can likewise originate from either the display module or the host system.

The best solution is therefore systematic diagnosis rather than immediate panel replacement.

For OEM products, prevention begins during mechanical and electrical design. Correct enclosure tolerances, appropriate FPC routing, stable power, compatible interfaces, suitable environmental specifications, and reliable quality control can significantly reduce display failures.

As a professional LCD manufacturer, Zhunyi provides square, round, and conventional TFT LCD modules with customization options for interfaces, FPCs, touch panels, backlights, and other requirements. This allows developers to address potential failure points before a display enters mass production.
