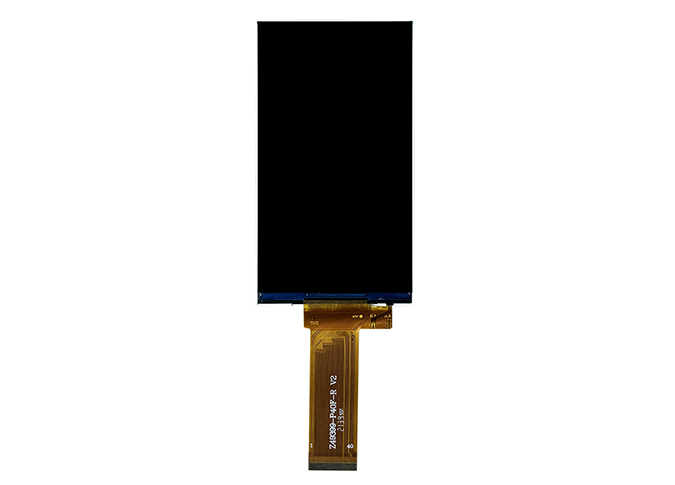

Z49399 SPI+RGB Interface 5 Inch 480*854 TFT LCD Module for Smart Terminals HMI IOT Display

  • Display Size: 5.0 inch Diagonal

  • Resolution: 480x854 pixels, portrait format

  • Interface: SPI + RGB for versatile microcontroller compatibility

  • Controller IC: ST7701S, reliable signal decoding and color rendering

  • Viewing Technology: TFT with wide viewing angles

  • Customization: FPC shape, logo print, optical bonding, cover glass

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
5 inch 480x854 display
5 inch 480x854 display
Z49399
5 tft display
5 inch lcd china
5 inch lcd company
5 inch lcd cost
5 inch lcd for sale
5 inch lcd in china
5 inch lcd price
5 inch lcd screen price
5 inch lcd supplier
5 inch lcd suppliers
5 inch tft display
5 inch tft screen
5 lcd display wholesale
5 tft display manufacturer
5 inch lcd china bulk
5 inch lcd screen price company

Overview of Z49399 500nits 5 Inch 480*854 TFT Display Screen ST7701S Controller RGB+SPI Interface

1

Z49399 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) This 5-inch TFT LCD module offers a 480x854 resolution in portrait orientation with high-quality IPS viewing angles. Integrated with the ST7701S controller, it supports SPI+RGB/MIPI interface. This a-Si TFT square LCD module come with 530cd/m² brightness.Reliable performance, excellent color saturation, and compatibility with STM32, Raspberry Pi, and other popular platforms make it a solid choice for professional projects.

2

If you have special requirements, like drive IC interface, FPC, touch panel, backlight, etc, as a TFT LCD module supplier, we can also customize for you.

3

As a square LCD supplier, our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

This 5 inch IPS LCD is perfect for Smart Control Terminals,Handheld Testing Equipment ,Smart Door Locks & Access Systems,Medical monitor,POS,MP3/MP4,smart thermostats, light controllers,IoT Dashboards, EV Charging station etc.

Specifications of 500nits 5 Inch 480*854 TFT Display Screen ST7701S Controller RGB+SPI Interface


No.

Item

Specification

Unit

1

Display Size (Diagonal)

5.0

inch

2

Display Resolution

480 (H) × RGB × 854 (V）

pixels

3

Pixel Pitch

128.4 (H) × 128.4 (V）

um

4

LCM Outline Dimension

(Without FPC）

66.40 (W) × 120.05 (H) ×2.25 (T)

mm

5

LCD Outline Dimension

64.46 (W) × 116.80 (H) × 0.8 (T)

mm

6

LCD Active Area

61.33 (W) × 109.65 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST7701S-G5

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.47%

-

13

LCD Contrast Ratio

Typ.: 800 Min: 640

-

14

FPC Version

Z49399-P40F-R V2

-

15

Interface

RGB+SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/6 Series 2 Parallel (12 lights in total)

-

19

Luminance

530

nit

20

Weight

0.031

kg


Interface Definition Description of 500nits 5 Inch 480*854 TFT Display Screen ST7701S Controller RGB+SPI Interface


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

3

GND

Ground

4

VCC

POWER SUPPLY (3.3V)

5-12

R0-R7

DATA BUS

13-20

G0-G7

DATA BUS

21-28

B0-B7

DATA BUS

29

GND

Ground

30

CLK

Pixel clock signal in RGB I/F

31

DISP

Display on/off

32

HSYNC

Horizontal sync. Signal in RGB I/F.

33

VSYNC

Vertical sync. Signal in RGB I/F.

34

DEN

Data enable

35

NC

No Connection

36

GND

Ground

37

RESET

LCM RESET PIN

38

SDI

LCM SPI data (SDI) data input (MOSI)

39

SCL

LCM SPI clock (SCL) clock (SCLK)

40

CS

Chip Select input PIN

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 500nits 5 Inch 480*854 TFT Display Screen ST7701S Controller RGB+SPI Interface


Mechanical Drawing of 500nits 5 Inch 480*854 TFT Display Screen ST7701S Controller RGB+SPI Interface
