Z82001 High Resolution 8 inch TFT LCD Display with 1080×1080 Circular format MIPI interface FT8201S driver

  • Display Size: 8 inch

  • Resolution: 1080×1080 pixels

  • Display Type: TFT LCD

  • Interface: MIPI DSI

  • Driver IC: FT8201S

  • Color Depth: 16.7M colors

  • Viewing Angle: Wide viewing angle

  • Backlight: LED


Request A Quote

Overview of Z82001 High Resolution 8 inch TFT LCD Display with 1080×1080 Circular format MIPI interface FT8201S driver

1

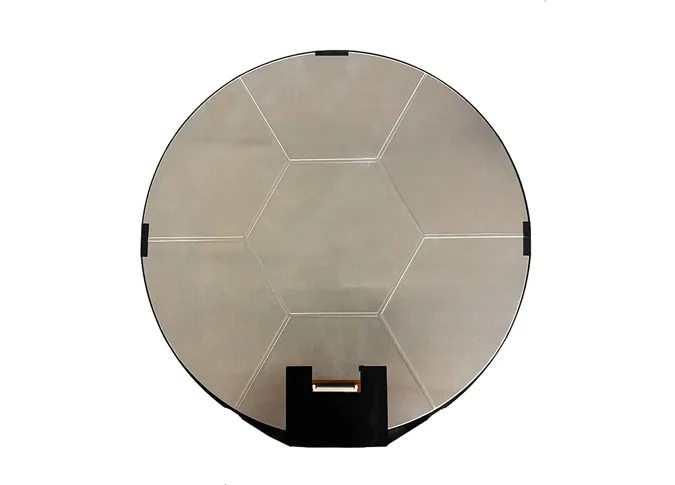

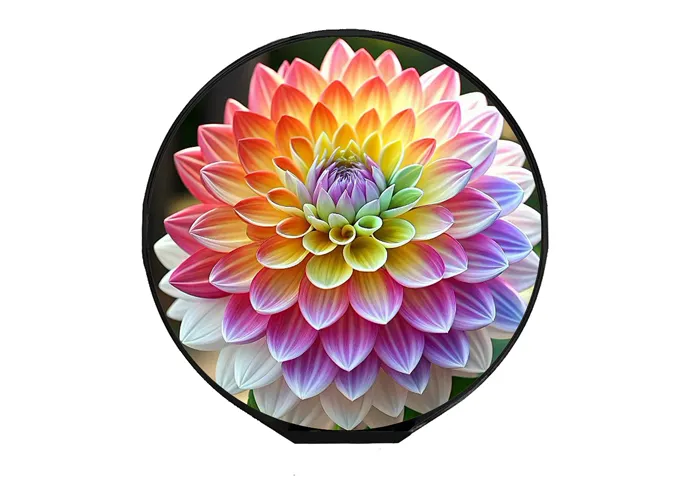

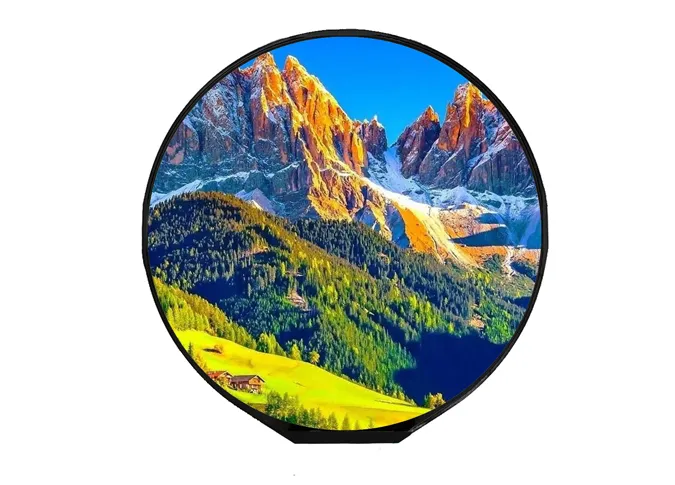

Z82001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).This 8 inch LCD screen features a 1080×1080 high-resolution panel designed for professional embedded and industrial applications. Equipped with a MIPI DSI interface and powered by the FT8201S driver IC, the display delivers stable signal transmission, sharp image quality, and consistent color performance. Its circular resolution supports modern UI layouts and precise graphic presentation

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can customize for you.

3

As a LCD screen factory in China, our 7.0" Display compatible with platforms like Rockchip RK3566 / RK3588 / RK3399,Allwinner A100 / A133 / T7 series,NXP i.MX8M,Raspberry Pi CM4 ,Android 8.1 – 13.0,RTOS,Linux (Debian/Ubuntu, Yocto) etc

4

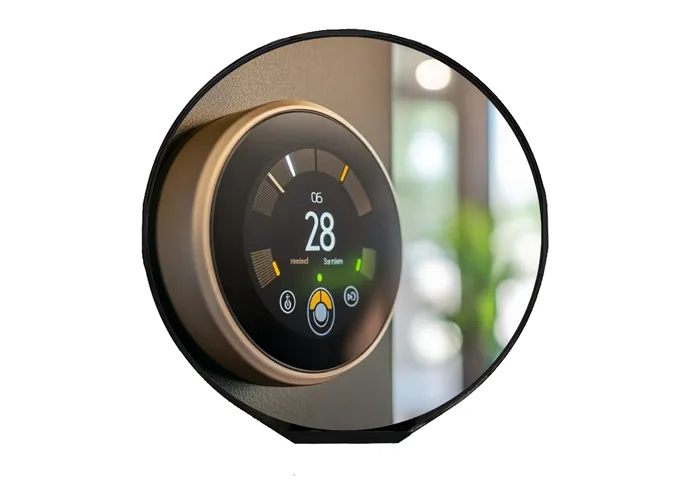

This 8.0 inch round type LCD panel is perfect for Embedded systems, smart terminals, Digital dashboards, visual control systems, premium consumer electronics, creative UI displays etc

General Specifications of Z82001 High Resolution 8 inch TFT LCD Display with 1080×1080 Circular format MIPI interface FT8201S driver


1. General Specifications

No.

Item

Specification

Unit

1

Display Size (Diagonal)

8.18

inch

2

Display Resolution

1080（H） × RGB × 1080（V）

pixels

3

Pixel Pitch

192.6（H） × 192.6（V）

um

4

LCD Module Dimension

(Without FPC）

219.3（W） ×224.02（H） ×4.0（T）

mm

5

Touch Display Dimension

(Without FPC）

241.16（W） ×241.16（H） ×5.3（T）

mm

6

LCD Active Area

208.01（W） ×208.01（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

LCM Driver IC

FT8201S

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

FPC Version

Z82001-P40 V1

-

12

TFT Display Interface

MIPI

-

13

TP Interface

I2C

-

14

PCAP Multi Touch

(10)

point

15

Touch Screen Report Rate

(120)

Hz

16

Operating Temperature

-20°C~ 60°C

-

17

Storage Temperature

-30°C~ 70°C

-

18

Backlight Arrangement

LED/7 Series 8 Parallel (56 lights in total)

-

19

Display+Touch    Luminance

Typ.: 250

nit

20

Weight

TBD

kg


2.  Interface Definition Description

PIN NO.

PIN SYMBOL

FUNCTION DESC.

1-2

AVDD

POWER SUPPLY(6.0V)

3

NC

No Connection

4-5

AVEE

POWER SUPPLY(-6.0V)

6

NC

No Connection

7-8

IOVCC 1.8V

I/O    POWER SUPPLY(1.8V)

9

RESET 1.8V

LCM    RESET    PIN

10-11

GND

Ground

12

MIPI0N

Negative MIPI differential data input

13

MIPI0P

Positive MIPI differential data input

14

GND

Ground

15

MIPI1N

Negative MIPI differential data input

16

MIPI1P

Positive MIPI differential data input

17

GND

Ground

18

MIPICKN

Negative MIPI differential CLOCK input

19

MIPICKP

Positive MIPI differential CLOCK input

20

GND

Ground

21

MIPI2N

Negative MIPI differential data input

22

MIPI2P

Positive MIPI differential data input

23

GND

Ground

24

MIPI3N

Negative MIPI differential data input

25

MIPI3P

Positive MIPI differential data input

26

GND

Ground

27

ID0

LCM ID PIN

28

ID1

LCM ID PIN

29

GND

Ground

30

TP-SDA(1.8V)

TP    I2C data (SDA) data input (MOSI)

31

TP-SCL(1.8V)

TP    I2C clock (SCL) clock (SCLK)

32

TP-INT(1.8V)

TP    Interrupt    PIN(1.8V)

33

TP-RST(1.8V)

TP    Reset    PIN

34

GND

Ground

35

NC

No Connection

36-37

LED-

POWER SUPPLY- FOR BACKLIGHT CATHODE

38

NC

No Connection

39-40

LED+

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
