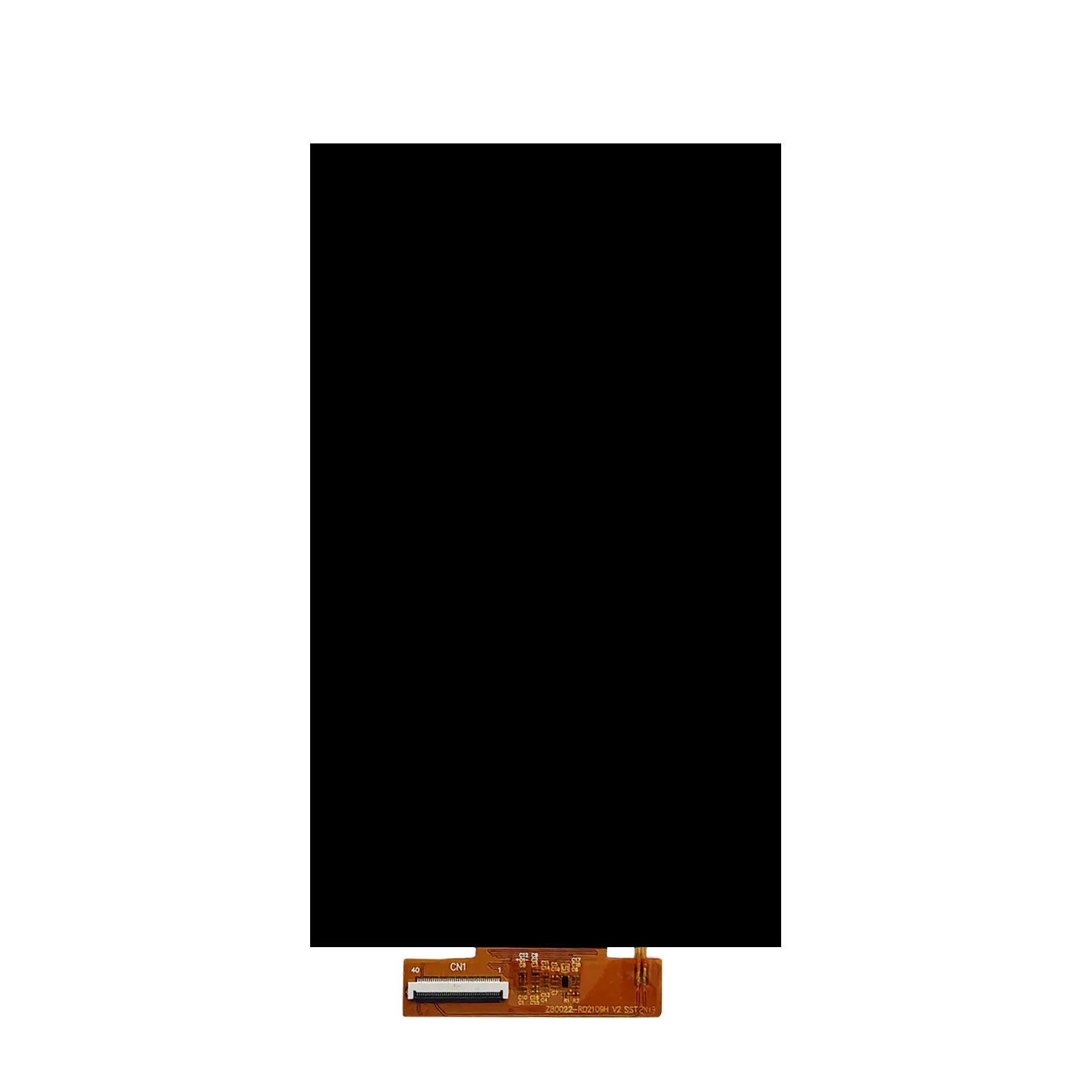

Z80008/Z80022 16:10 Format 8 inch 800x1280 Incell Touch LCD Display MIPI I2C Interface LCD Slim Bezel

Size: 8.0" diagonal, vertical layout

Resolution: 800x1280 pixels,16:10 aspect ratio

Interface: MIPI DSI (display), I2C (touch)

View angle:IPS,full viewing

Touch: Integrated in-cell capacitive touch

Advantages: narrow bezel, rounded corners,lightweight

Custom: FPC design, brightness adjustment, cover glass,interface, logo,silk print

ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
z80022 (3)

Overview of Z80008/Z80022 16:10 Format 8 inch 800x1280 Incell Touch LCD Display MIPI I2C Interface LCD Slim Bezel

1

Z80022 is a color active matrix thin film transistor (TFT) liquid crystal display(LCD).

This 8-inch TFT LCD module features integrated in-cell capacitive touch technology and delivers a full HD-like experience with its 800×1280 resolution. Utilizing MIPI DSI for display data and I²C for touch control, it offers a streamlined profile ideal for space-sensitive and high-end smart designs.


2

This 8 inch incell lcd panel compatible with MediaTek MT8167/MT8516,Raspberry Pi CM4,STM32MP157/MP1 series,Rockchip RK3568/RK3399,NXP i.MX 8M Mini/i.MX 7ULP platforms and other systesm.

3

This thin design 8 inch incell touch screen is perfect for Smart control hub,smart audio/video systems,In-wall dashboards,telehealth tablets,insulin pumps,smart energy management,Passenger infotainment displays, EV charding station,Slim POS tablets,self-checkout/self-ordering tablets , Hospital bedside monitors, food processor, price tag, advertising monitor and other applications.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness),logo, silk print etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the display passed ROHS, REACH Certification.

General Specifications of Z80008/Z80022 16:10 Format 8 inch 800x1280 Incell Touch LCD Display MIPI I2C Interface LCD Slim Bezel


No.ItemSpecificationUnit
1Display Size (Diagonal)8inch
2Display Resolution800(H） × RGB × 1280（V）pixels
3Pixel Pitch44.85(H）× 134.55（V）um
4LCM Outline Dimension114.66 (W) ×184.16 (H) ×2.65 (T)mm
(Without FPC）
5LCD Outline Dimension111.24 (W) × 177.717 (H) × 0.8 (T)mm
6TLCM Outline Dimension121.80 (W) ×266.80 (H) ×3.87 (T)mm
(Without FPC）
7LCD Active Area107.64（W） ×172.224（H）mm
8View Direction (Gray Inversion)FULL VIEW-
9Driver ICJD9365DA-H3-
10Pixel ArrangementRGB-Stripe-
11Display ModeNormal Black-
12Pixel driving Elementa-Si TFT-
13LCD TransmittanceTyp.: 5.21%  Min:4.43%-
14LCD Contrast RatioTyp.: 1500  Min:1200-
15FPC VersionZ80022-RD2109H V2-
16InterfaceMIPI-
17TP  InterfaceI2C-
18Operating Temperature-20°C~ 70°C-
19Storage Temperature-30°C~ 80°C-
20Backlight ArrangementLED/4 Series 7 Parallel (28 lights in total)-
21Luminance620nit
22Weight0.183kg




LCM  PIN of Z80008/Z80022 16:10 Format 8 inch 800x1280 Incell Touch LCD Display MIPI I2C Interface LCD Slim Bezel


PIN NO.PIN DEF.FUNCTION DESC.
1RESETLCM  RESET  PIN
2月3日VDDPOWER SUPPLY
4月6日NCNo Connection
7GNDGround
8MIPI_D0NNegative MIPI differential data input
9MIPI_D0PPositive MIPI differential data input
10GNDGround
11MIPI_D1NNegative MIPI differential data input
12MIPI_D1PPositive MIPI differential data input
13GNDGround
14MIPI_CLKNNegative MIPI differential CLOCK input
15MIPI_CLKPPositive MIPI differential CLOCK input
16GNDGround
17MIPI_D2NNegative MIPI differential data input
18MIPI_D2PPositive MIPI differential data input
19GNDGround
20MIPI_D3NNegative MIPI differential data input
21MIPI_D3PPositive MIPI differential data input
22GNDGround
23-34NCNo Connection
25GNDGround
26-29NCNo Connection
30GNDGround
31-32VLEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
33-37NCNo Connection
38IDLCM  ID  PIN
39-40VLEDAPOWER SUPPLY+ FOR BACKLIGHT ANODE
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
