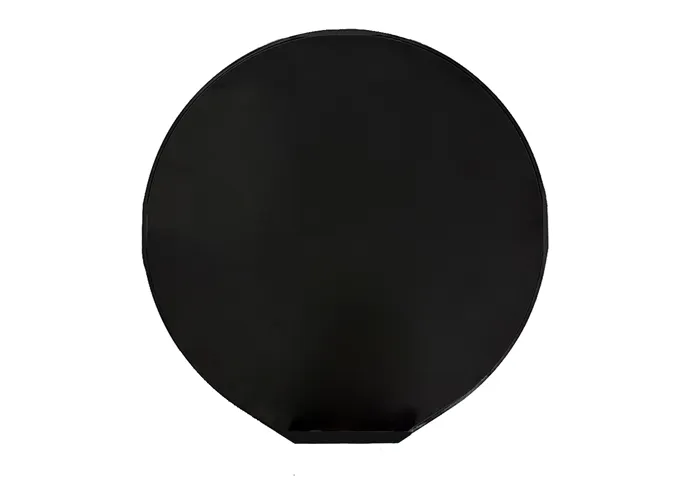

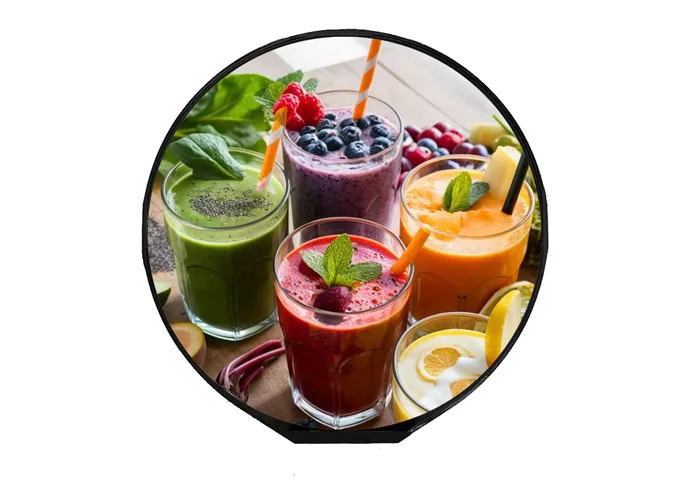

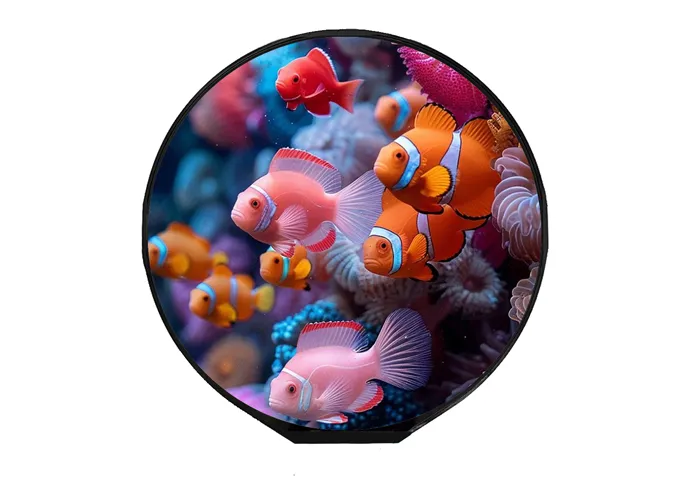

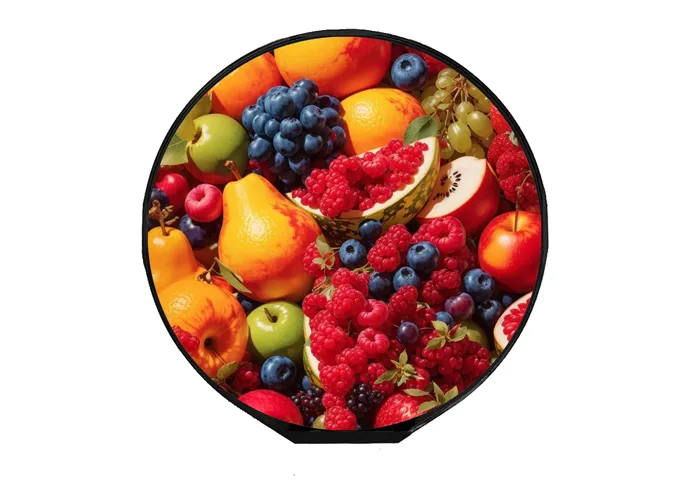

Z70123 Premium 7 Inch Circular LCD Display 1080×1080 with LVDS Interface for Control Panel

  • Display Size: 7 inch

  • Resolution: 1080×1080 pixels

  • Display Shape: Circular

  • Display Type: TFT LCD

  • Interface: LVDS

  • Color Depth: 16.7M colors

  • Viewing Angle: Wide viewing angle

  • Backlight: LED

  • Operating Mode: Transmissive

Overview of Z70123 Premium 7 Inch Circular LCD Display 1080×1080 with LVDS Interface for Control Panel

1

Z70123 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) .This 7 inch circular LCD display features a 1080×1080 high-resolution panel designed for professional and industrial applications. The LVDS interface provides stable, high-speed signal transmission with strong noise immunity, ensuring reliable image quality in complex electronic environments. The circular form factor supports modern UI layouts and precise graphical presentation.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can also customize for you.


3

Our factory carry out ISO 9001:2015 and IATF16949: 2016 quality standard system strictly, all the lcd display passed ROHS, REACH Certification

4

The 7" Round LCD Screen is widely used on Smart home control panels, automation systems, intelligent terminals, energy management displaysect

General Specifications of Z70123 Premium 7 Inch Circular LCD Display 1080×1080 with LVDS Interface for Control Panel


1. General Specifications


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1080(H) × RGB × 1080(V)

pixels

3

Pixel Pitch

192.6(H) × 192.6(V)


um


4

LCD Module Dimension

(Without FPC)


192.75(W) ×191.58(H) ×4.77(T)


mm


5

Touch Display Dimension

(Without FPC)


-


mm

6

LCD Active Area

177.41(W) ×177.41(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW


-

8

LCM Driver IC

-


-

9

Pixel Arrangement

RGB-Stripe


-

10

Display Mode

Normal Black


-

11

FPC Version

Z70123-P40 V1


-

12

TFT Display Interface

LVDS


-

13

TP Interface

-


-

14

PCAP Multi Touch

-

point

15

Touch Screen Report Rate

-

Hz

16

Operating Temperature

-20°C~ 60°C


-

17

Storage Temperature

-30°C~ 70°C


-

18

Backlight Arrangement

LED/7 Series 8 Parallel (56 lights in total)


-

19

Display Luminance

Typ.: 300

nit

20

Weight

TBD

kg
