Z70123 High Resolution 7 inch Round LCD Screen 1080×1080 LVDS Interface for

  • Display Size: 7 inch

  • Resolution: 1080×1080

  • Interface: LVDS

  • Display Type: TFT LCD

  • Optional touch panel support

  • Custom FPC and brightness options

Overview of Z70123 High Resolution 7 inch Round LCD Screen 1080×1080 LVDS Interface for

1

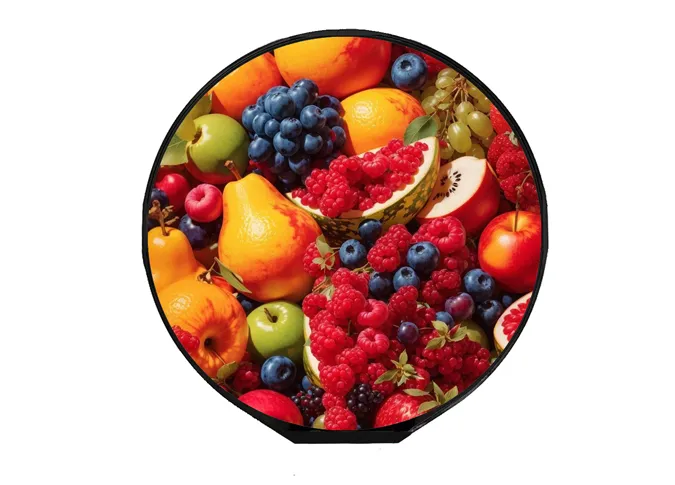

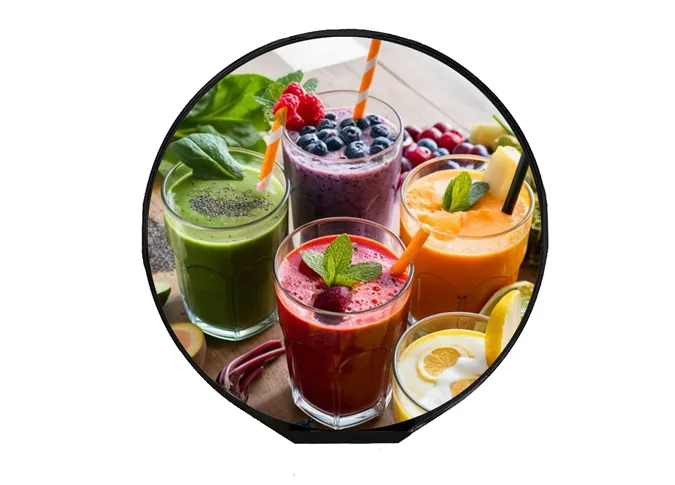

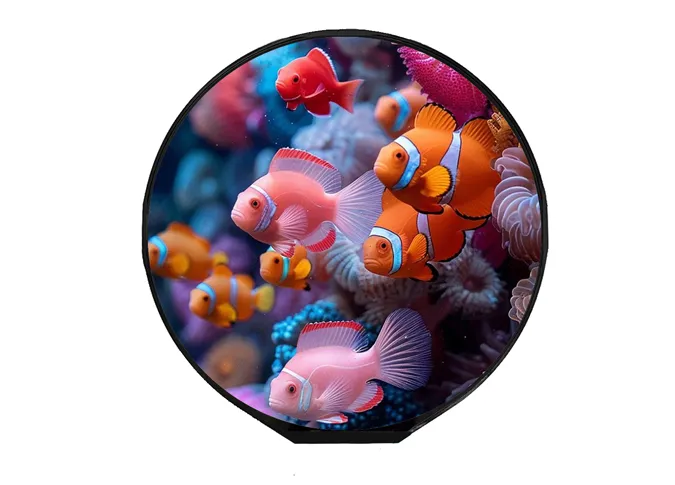

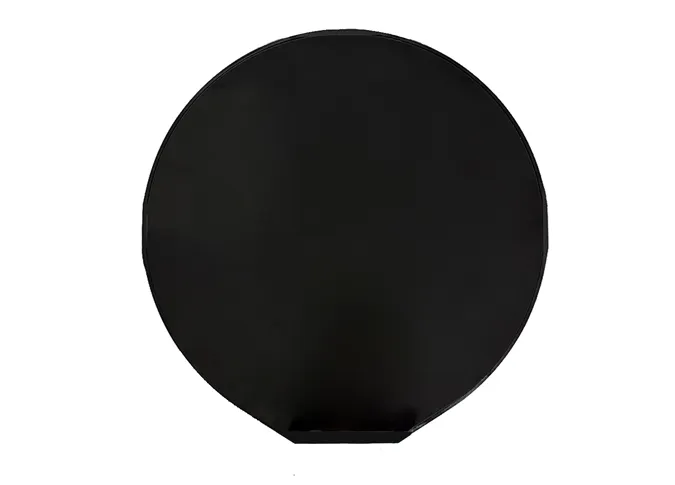

Z70123 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD).This 7 inch circular LCD display features a 1080×1080 high-resolution panel designed for professional and industrial applications. The LVDS interface provides stable, high-speed signal transmission with strong noise immunity, ensuring reliable image quality in complex electronic environments. The circular form factor supports modern UI layouts and precise graphical presentation.

2

If you have special requirement,like driver IC,interface,FPC,touch panel,backlight etc, we can customize for you.

3

As a LCD screen factory in China, our 7.0" Display compatible with platforms like Rockchip RK3566 / RK3588 / RK3399,Allwinner A100 / A133 / T7 series,NXP i.MX8M,Raspberry Pi CM4 ,Android 8.1 – 13.0,RTOS,Linux (Debian/Ubuntu, Yocto) etc


4

This 7.0 inch round type LCD panel is perfect for Digital dials, visual dashboards, premium consumer electronics, creative UI displays,OEM manufacturing, industrial equipment, customized embedded systems etc

General Specifications of Z70123 High Resolution 7 inch Round LCD Screen 1080×1080 LVDS Interface for


1. General Specifications


No.

Item

Specification

Unit

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1080(H) × RGB × 1080(V)

pixels

3

Pixel Pitch

192.6(H) × 192.6(V)


um


4

LCD Module Dimension

(Without FPC)


192.75(W) ×191.58(H) ×4.77(T)


mm


5

Touch Display Dimension

(Without FPC)


-


mm

6

LCD Active Area

177.41(W) ×177.41(H)

mm

7

View Direction (Gray Inversion)

FULL VIEW


-

8

LCM Driver IC

-


-

9

Pixel Arrangement

RGB-Stripe


-

10

Display Mode

Normal Black


-

11

FPC Version

Z70123-P40 V1


-

12

TFT Display Interface

LVDS


-

13

TP Interface

-


-

14

PCAP Multi Touch

-

point

15

Touch Screen Report Rate

-

Hz

16

Operating Temperature

-20°C~ 60°C


-

17

Storage Temperature

-30°C~ 70°C


-

18

Backlight Arrangement

LED/7 Series 8 Parallel (56 lights in total)


-

19

Display Luminance

Typ.: 300

nit

20

Weight

TBD

kg
