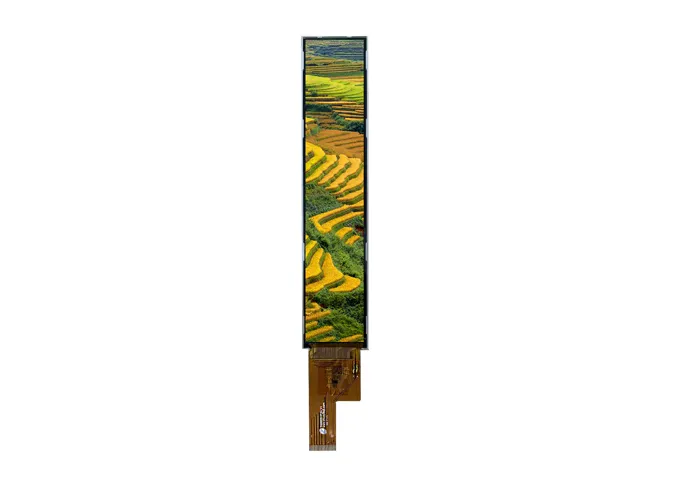

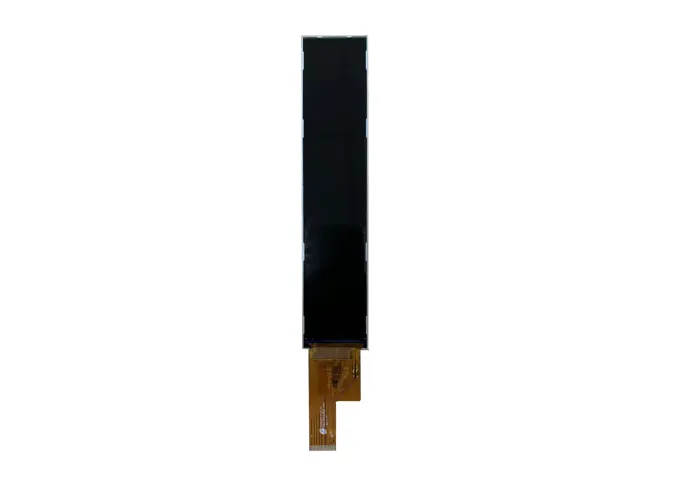

Z69005 6.9 Inch 280×1424 Stretched Bar LCD Display MIPI/SPI+RGB Interface JD9365DA Controller

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

280(H） × RGB × 1424（V）

pixels

3

Pixel Pitch

143.2(H） × 143.2（V）

um

4

LCM+CTP Outline Dimension

(Without FPC）

43.3 (W) ×201.0(H) ×5. 15(T)

mm

5

LCM Outline Dimension

(Without FPC）

38.2 (W) ×181.47 (H) ×3.5(T)

mm

6

LCD Active Area

33.6（W） ×170.88（H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.:4. 1

-

13

LCD Contrast Ratio

Typ.: 1200:1 Min:900:1

-

14

FPC Version

Z69005-P30 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED

-

19

Luminance

Typ.:900

nit

20

Weight

TBD

kg

1

GND RESET

Ground LCM    RESET    PIN

2

MIPI_D3N

Negative MIPI differential data input

3

MIPI_D3P

Positive MIPI differential data input

4

GND

Ground

5

MIPI_D2N

Negative MIPI differential data input

6

MIPI_D2P

Positive MIPI differential data input

7

GND

Ground

8

MIPI_CLKN

Negative MIPI differential CLOCK input

9

MIPI_CLKP

Positive MIPI differential CLOCK input

10

GND

Ground

11

MIPI_D1N

Negative MIPI differential data input

12

MIPI_D1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI_D0N

Negative MIPI differential data input

15

MIPI_D0P

Positive MIPI differential data input

16

GND

Ground

17

GND

Ground

18

TE

Tearing effect output pin.leave the pin open when not in use

19

RESET

LCM    RESET    PIN(3.3V)

20

GND

Ground

21-23

VCC3.3V

POWER SUPPLY

24

GND

Ground

25-26

NC

No Connection

27-28

VLED-

POWER SUPPLY- FOR BACKLIGHT CATHODE -

29-30

VLED+

POWER SUPPLY+ FOR BACKLIGHT ANODE +

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
