Z60045 Slim Bezel Display 6 inch 720x1560 Incell LCD Module Rounded Corner MIPI I2C Interface IPS View

  • Size: 6.0" diagonal

  • Resolution: 720x1560 pixels

  • Interface: MIPI DSI (display), I2C (touch)

  • View angle:IPS,full viewing

  • Touch: In-cell capacitive touch—fully integrated, ultra-slim design

  • Driver IC:ST7123 for optimized display and touch coordination

  • Advantages: Rounded corners and thin profile suit borderless design applications

  • Custom Services: FPC design, brightness adjustment, cover glass,interface, logo silk print

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote

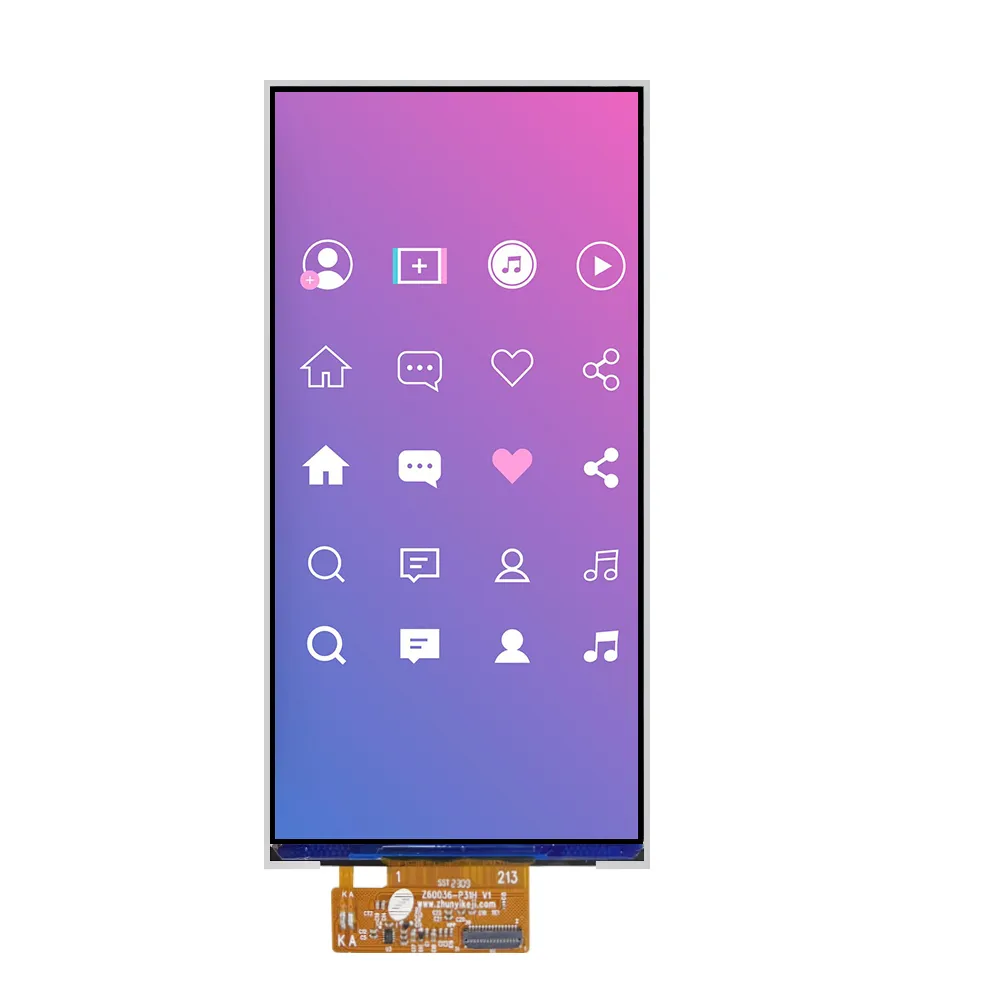

z60045 (2)
z60045 (2)
z60045 (1)
z60045 (4)
z60045 (3)

Overview of Z60045 Slim Bezel Display 6 inch 720x1560 Incell LCD Module Rounded Corner MIPI I2C Interface IPS View

1

Z60045 is a color active matrix thin film transistor (TFT) liquid crystal display(LCD).This 6-inch TFT LCD module features in-cell capacitive touch technology for a slimmer design and enhanced optical clarity. Powered by the ST7123 controller and supporting MIPI DSI for display and I2C for touch, it delivers smooth interaction with excellent screen integration. The rounded corners make it suitable for modern edge-to-edge product designs.

2

This 6 inch incell display compatible with systems like Raspberry Pi Compute Module 4,STM32MP1 Series,Qualcomm Snapdragon 410E/450,MediaTek MT8168 / MT8766 platforms,Rockchip RK3566 / RK3399 boards,Custom SoC or FPGA platforms etc.

3

This 6 inch incell IPS LCD is perfect for smart hotel controller,Interactive retail displays,visitor terminals,e-bike interfaces,rowing machines,ovens, refrigerators, wine coolers,sleep tracking,Vending machine display, video doorbell,smart phone,Interactive guest panels and other applications.

4

If you have special requirement, like interface(pin definition), FPC, cover glass, backlight(brightness),logo, silk print etc, we can customize for you.Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the display passed ROHS, REACH Certification.

General Specifications of Z60045 Slim Bezel Display 6 inch 720x1560 Incell LCD Module Rounded Corner MIPI I2C Interface IPS View

No.ItemSpecificationUnit
1Display Size (Diagonal)6.088inch
2Display Resolution720（H） × RGB × 1560（V）pixels
3Pixel Pitch90（H） ×90（V）
um

LCD Module Dimension

4(Without FPC）67.0（W） ×146.3（H） ×2.16（T）mm

Touch Display Dimension

5(Without FPC）75.56（W） ×154.16（H） ×3.04（T）mm
6LCD Active Area64.8（W） ×140.4（H）mm
7View Direction (Gray Inversion)FULL VIEW
-
8LCM Driver ICST7123
-
9Pixel ArrangementRGB-Stripe
-
10Display ModeNormal Black
-
11FPC VersionZ60045-P12 V1
-
12TFT Display InterfaceMIPI
-
13TP InterfaceI2C
-
14PCAP Multi Touch-10point
15Touch Screen Report Rate-100Hz
16Operating Temperature-20°C~ 70°C
-
17Storage Temperature-30°C~ 80°C
-
18Backlight ArrangementLED/8 Series 2 Parallel (16 lights in total)
-
19Display+Touch    LuminanceTyp.: 350nit
20WeightTBDkg





Interface Definition Description of Z60045 Slim Bezel Display 6 inch 720x1560 Incell LCD Module Rounded Corner MIPI I2C Interface IPS View


PIN NO.PIN SYMBOLFUNCTION DESC.
1GNDGround
2AVDDPOWER SUPPLY(4.5~6.3V)
3AVEEPOWER SUPPLY(-4.5 ~ -6.3V)
4GNDGround
5VLCM18I/O POWER SUPPLY(1.8V)
6RSTLCM    RESET    PIN
7GNDGround
8RESER(TP)TP    Reset    PIN
9INT(TP)TP    Interrupt    PIN(1.8V)
10SDA(TP)TP    I2C data (SDA) data input (MOSI)
11SCL(TP)TP    I2C clock (SCL) clock (SCLK)
12GNDGround
13LEDAPOWER SUPPLY- FOR BACKLIGHT ANODE
14LEDKPOWER SUPPLY- FOR BACKLIGHT CATHODE
15GNDGround
16GNDGround
17MIPI0NNegative MIPI differential data input
18MIPI0PPositive MIPI differential data input
19GNDGround
20MIPICNNegative MIPI differential CLOCK input
21MIPICPPositive MIPI differential CLOCK input
22GNDGround
23MIPI2NNegative MIPI differential data input
24MIPI2PPositive MIPI differential data input
25GNDGround
26MIPI3NNegative MIPI differential data input
27MIPI3PPositive MIPI differential data input
28GNDGround
29MIPI1NNegative MIPI differential data input
30MIPI1PPositive MIPI differential data input
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
