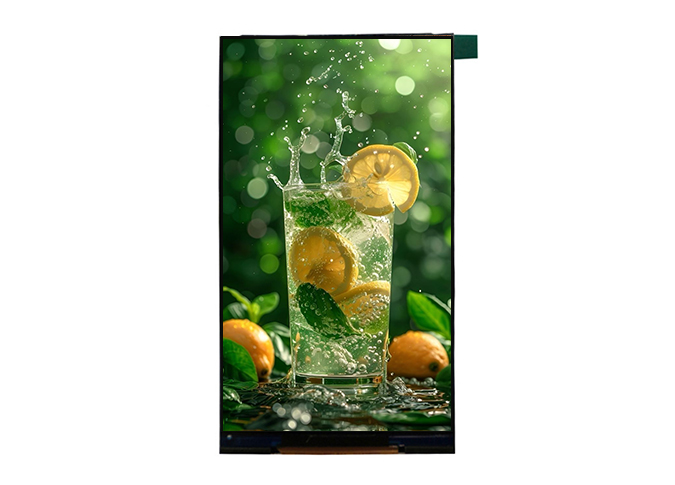

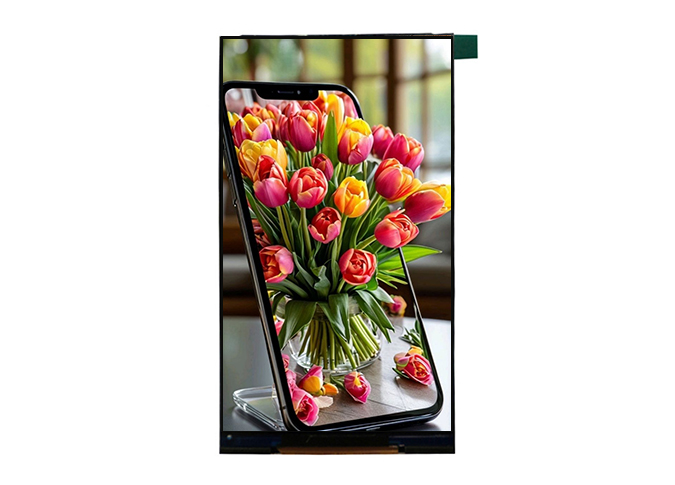

Z55292 Sunlight Readable 5.5 inch 720*1280 TFT LCD Panel JD9365DA MIPI DSI Interface IPS Display

  • Size: 5.5 inch Diagonal

  • Resolution: 720×1280 HD, 16:9 aspect ratio

  • Interface: 4-lane MIPI DSI

  • View Angle: Full view IPS (80° in all directions)

  • Wide Compatibility: JD9365AD controller

  • Touch Panel: Support CTP/RTP

  • Customization: FPC shape, logo print, optical bonding, cover glass

  • ISO9001,IATF16949,ROHS,REACH certified factory


Request A Quote
5
5
5
5
Z55292

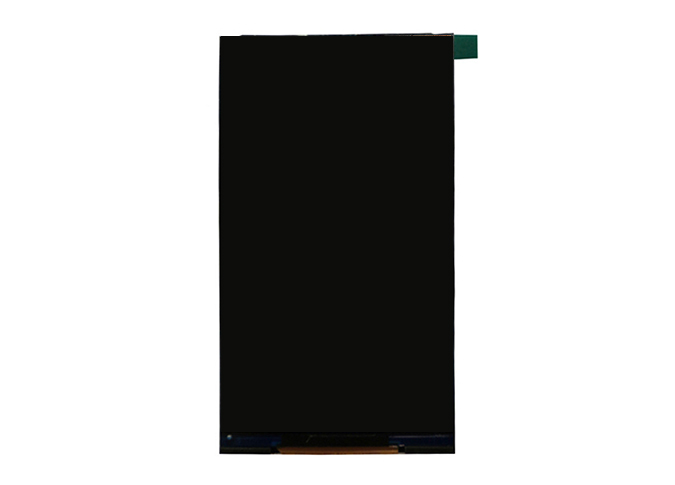

Overview of Z55292 720*1280 5.5 Inch IPS LCD Screen 31PIN MIPI Interface JD9365DA-H3 Controller

1

Z55292 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 720*1280 resolution. IPS (In-plane Switching) technique make this 5.5" LCD module have a wider view angle. This LCD square TFT display is built-in JD9365DA-H3 driver IC. This a-Si TFT LCD module come with MIPI interface, 420cd/m² brightness.

2

If you have special requirements, like drive IC interface, FPC, touch panel, brightness, color, backlight, etc, as a custom LCD manufacturer, we can also customize for you.

3

Our factory carry out ISO 9001: 2015 and IATF16949: 2016 quality standard system strictly, all the LCD display passed ROHS, REACH Certification.

4

The high resolution 5.5 inch LCD screen is perfect for AI assistants, voice-interaction panels,smart hubs,diagnostic tools, data loggers,portable HMI devices,mobile POS systems, ticketing machines, mini self-checkout,health monitors, portable ultrasound viewers,treadmills,educational electronics,compact kiosks, locker panels, food vending UIs,EV dashboards,portable gaming consoles, smart home LCD panel etc.

Specifications of 720*1280 5.5 Inch IPS LCD Screen 31PIN MIPI Interface JD9365DA-H3 Controller


No.

Item

Specification

Unit

1

Display Size (Diagonal)

5.5

inch

2

Display Resolution

720 (H) × RGB × 1280 (V）

pixels

3

Pixel Pitch

31.5 (H) × 94.5 (V）

um

4

LCM Outline Dimension

(Without FPC）

71 (W) × 130 (H) ×1.67 (T)

mm

5

LCD Outline Dimension

70.04 (W) × 127.1 (H) × 0.4 (T)

mm

6

LCD Active Area

68.04 (W) × 120.96 (H）

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

JD9365DA-H3

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 3.47%

-

13

LCD Contrast Ratio

Typ.: 1000 Min: 600

-

14

FPC Version

Z55290-P501H V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/7 Series 2 Parallel (14 lights in total)

-

19

Luminance

420

nit

20

Weight

0.065

kg


Interface Definition Description of 720*1280 5.5 Inch IPS LCD Screen 31PIN MIPI Interface JD9365DA-H3 Controller


PIN NO.

PIN DEF.

FUNCTION DESC.

1

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

2

NC

No Connection

3-4

LEDA

POWER SUPPLY+ FOR BACKLIGHT ANODE

5

NC

No Connection

6

LPTE

Serves TE (Tearing Effect) PIN

7

LCDID1

LCD ID PIN

8

LCM_RST

LCM RESET PIN

9

LCDID2

LCD ID PIN

10

LCD_1V8

I/O POWER SUPPLY (1.8V）

11

NC

No Connection

12-13

LCD_2V8

POWER SUPPLY (2.8V）

14

NC

No Connection

15

GND

Ground

16

MIPI_TDP3

Positive MIPI differential data input

17

MIPI_TDN3

Negative MIPI differential data input

18

GND

Ground

19

MIPI_TDP2

Positive MIPI differential data input

20

MIPI_TDN2

Negative MIPI differential data input

21

GND

Ground

22

MIPI_TCP

Positive MIPI differential CLOCK input

23

MIPI_TCN

Negative MIPI differential CLOCK input

24

GND

Ground

25

MIPI_TDP1

Positive MIPI differential data input

26

MIPI_TDN1

Negative MIPI differential data input

27

GND

Ground

28

MIPI_TDP0

Positive MIPI differential data input

29

MIPI_TDN0

Negative MIPI differential data input

30-31

GND

Ground

RST voltage should be consistent with LCD_1V8 voltage, or there probably is black screen fault when power on.


Mechanical Drawing of 720*1280 5.5 Inch IPS LCD Screen 31PIN MIPI Interface JD9365DA-H3 Controller


Mechanical Drawing of 720*1280 5.5 Inch IPS LCD Screen 31PIN MIPI Interface JD9365DA-H3 Controller
